MAIN FEATURES OF HAIXING BOLT FORMER

1. The machine body, main slider, and the punch connecting rod adopt QT500~QT550 ductile iron. Taiwan invests in well-known brands and adopts the reverse casting process. Although the cost is 1~1.5 yuan/KG higher than other manufacturers, but it is the basis of a good machine. (Tensile resistance and high impact resistance. Generally, the other manufacturers use HT gray iron or low-cost ball milled cast iron.

2. The crankshaft, die box seat, punch die seat, double cam, punch connecting rod and large pin shaft are made of 38COMOAT material and nitriding treatment. The surface hardness can reach HV850~950, which has excellent stability and longevity (generally manufacturers use 42COMO High-frequency quenching treatment, although it is ok to use, it is slightly inferior in terms of resistance to seizure, deformation, abrasion, and breakage).

3. The guide plate is made of wear-resistant alloy steel with full quenching treatment, which has good anti-seize and abrasion resistance. If it is overhauled after more than ten years, it will only be flat polishing little bit then will like a new one. (Generally manufacturers use surface quenching  which only the surface is hard, and the hardness drops too much after grinding, and it is difficult to use for a long time.) The cylinder-type clamp frame assembly also uses a nitriding process to maintain high stability and long life (although it is heavier than aluminum clamp frame Some but significantly longer lifespan).

4.The copper tile and copper sleeve of the whole machine are made of PBC-2 (10-1) tin phosphor bronze, which has good wear resistance. Some models with a separate clamp seat use P-20 aviation aluminum which is surface-hardened, which overcomes the shortcomings of aluminum soft and short life.

5. The spring adopts Japanese and Korean brands, the important parts of the bearing adopts NSK and IKO brands, and the screw adopts TUZ brand 12.9 grade, which has high strength.

6. The gears are all processed by high-frequency quenching first,then grinding  the teeth to ensure the accuracy and low noise of the machine. At the same time, the transmission efficiency is high and the life is long.(It is also ok to use if it is not quenched and finely grinded, so the general manufacturer does not do this).

7. Pneumatic components adopt Japanese SMC and less Taiwanese Airtac brands, with fewer failures and long service life.

8. Both ends of the crankshaft of M16 and above large machine, the connecting rod Huff big copper sleeve, and the back shaft both ends copper sleeve are equipped with five copper sleeve temperature monitoring instruments as standard, which can monitor the copper sleeve at any time due to lack of oil, deformation or poor tubing. If the temperature rises above 50℃, it will alarm and stop, which can effectively prevent the expansion of the fault and prolong the life of the machine.

9. The remote monitoring function (optional) is convenient for production management and statistical work. It can monitor the startup, shutdown time, speed, number of good products, etc. at any time, and even directly shut down the machine. If there is a preheating requirement in winter, the machine can be pre-heated remotely.

10. Micro-moving machine adjusting system; in the process of adjusting the machine, there are high requirements for the center of the clamp, the center of the punch hole and the main mold hole, and the material and mold. This system can avoid the fatigue of the operator's hand pulling the flywheel and inching the main slider over to cause clamps and molds are damaged. (The jog hand wheel and servo main motor are also optional).

11. Raw wire material feeding, drive motor make feeding easily and save time.

STANDARD CONFIGURATION OF BOLT FORMER (EACH UNIT)

1. A set of standard material straightening device

2. A set of standard feeding wheel pressing device

3. A set of standard feeding mechanism

4. A set of standard cutting mechanism

5. A set of standard clamp mechanism

6. A set of standard punch die seat device

7. A set of standard main die seat device

8. A set of standard pneumatic brake clutch

9. A set of standard lubrication/cooling system

10. A set of standard air pressure system

11. A set of standard AC motor + inverter

12. A set of standard fully enclosed safety enclosures

13. A set of standard conveyor belts

14. A set of standard operating stand

15. A set of standard external clamp adjustment mechanism

16. A set of standard hand tools

17. A set of standard vulnerable parts

18. A standard electrical cabinet

19. A standard electrical operation panel

20. A set of standard safety devices: ①Pneumatic pressure detection; ②Feeding short-inch and material end detection; ③The main motor overloaded,Light loaded protection and detection; ④End oil pressure detection; ⑤Product quantity setting (counting ends); ⑥Emergency stop safety switch;; ⑦Lub. motor overload protection.

21. One standard magnetic working light

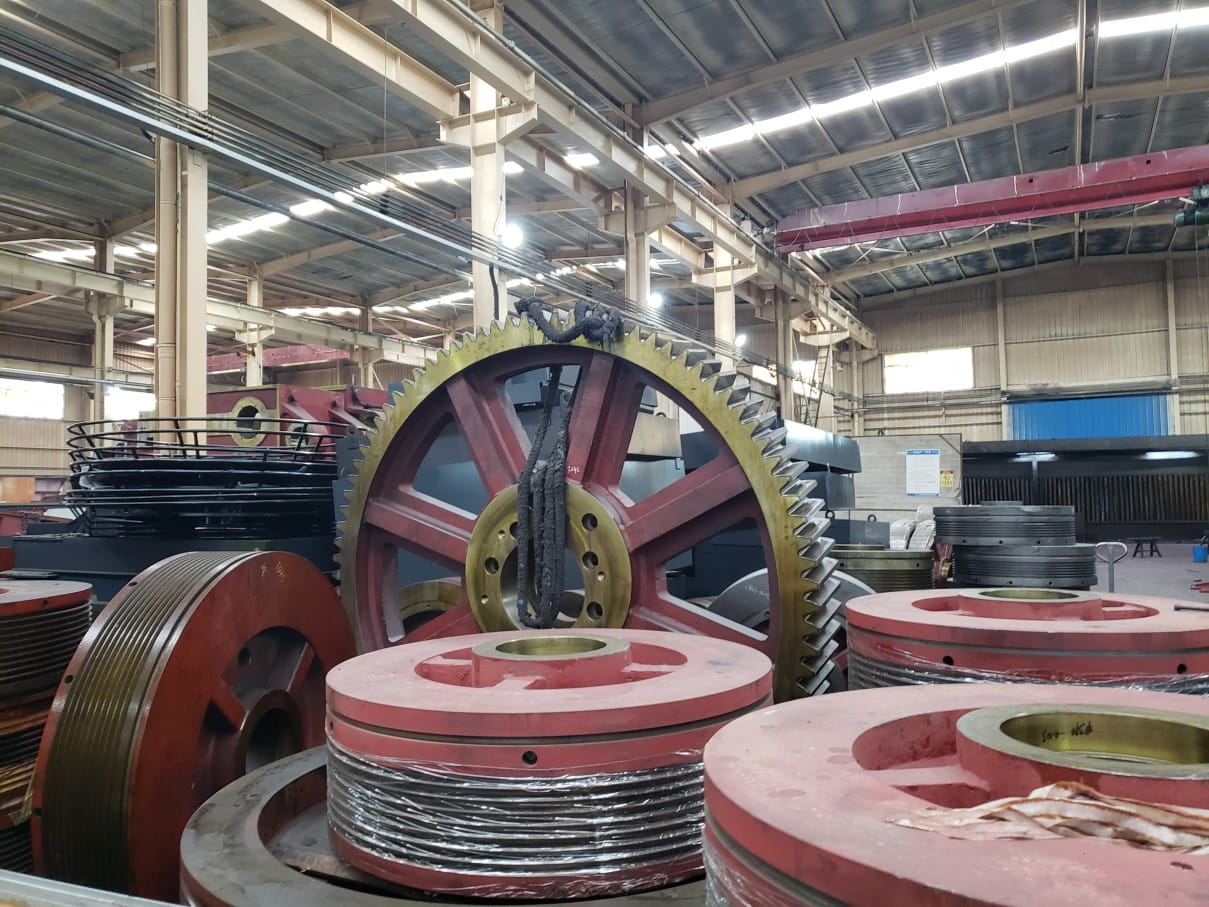

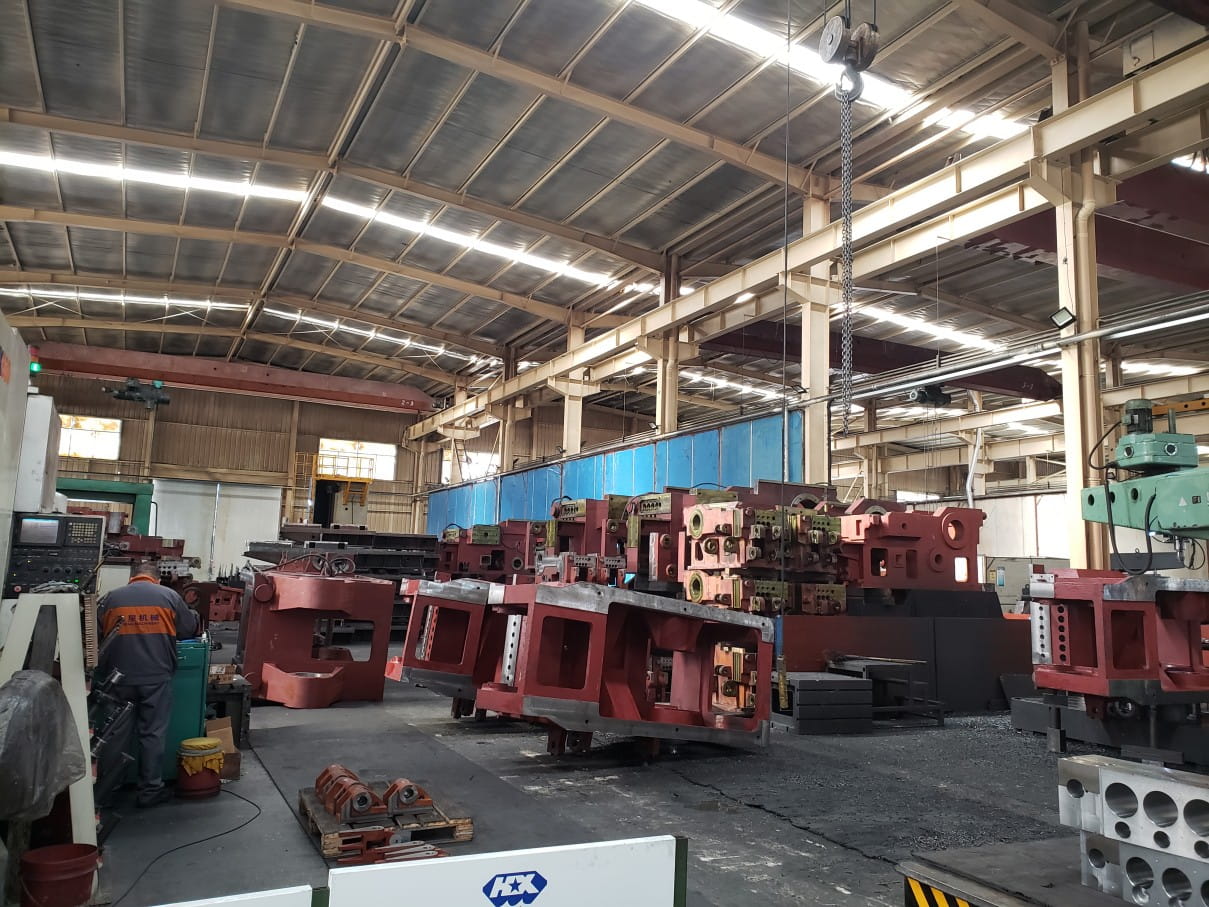

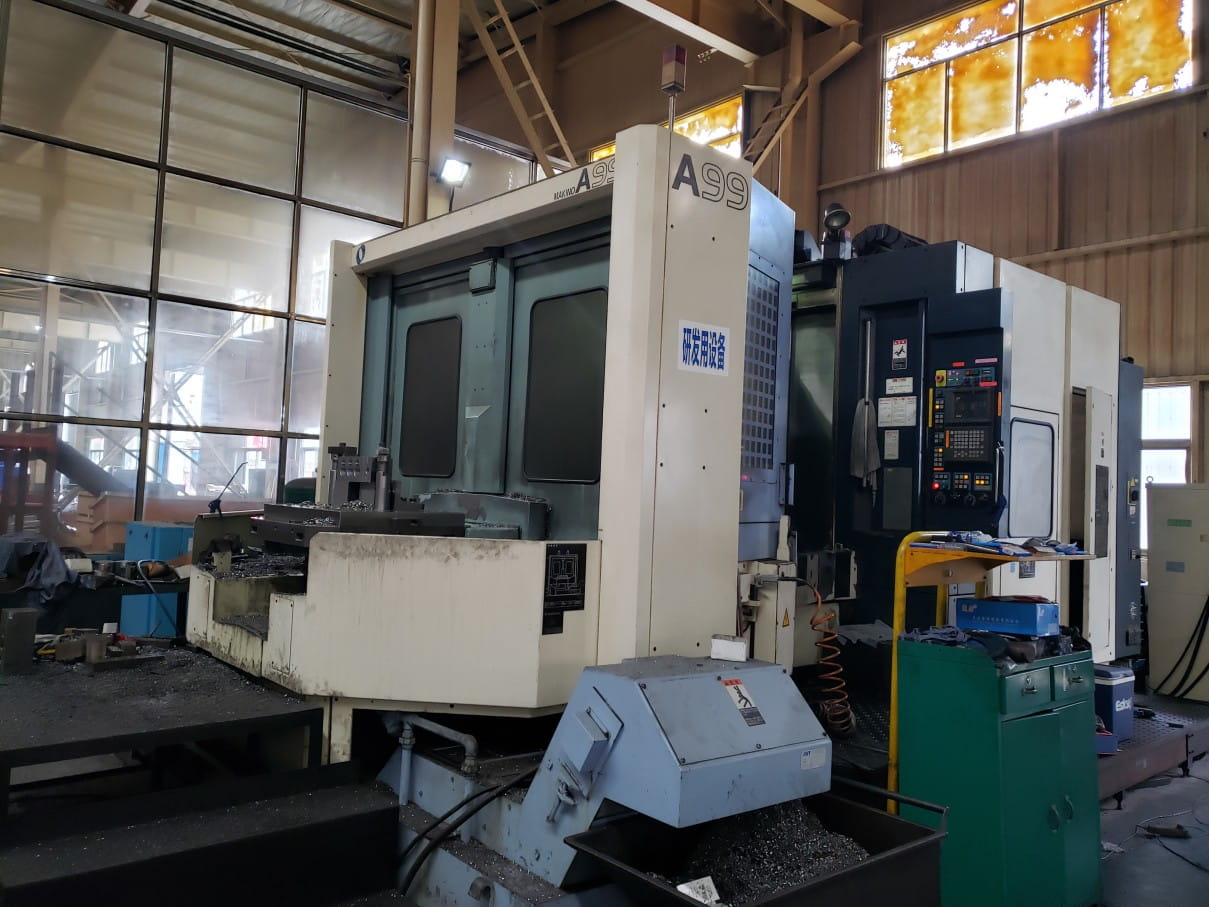

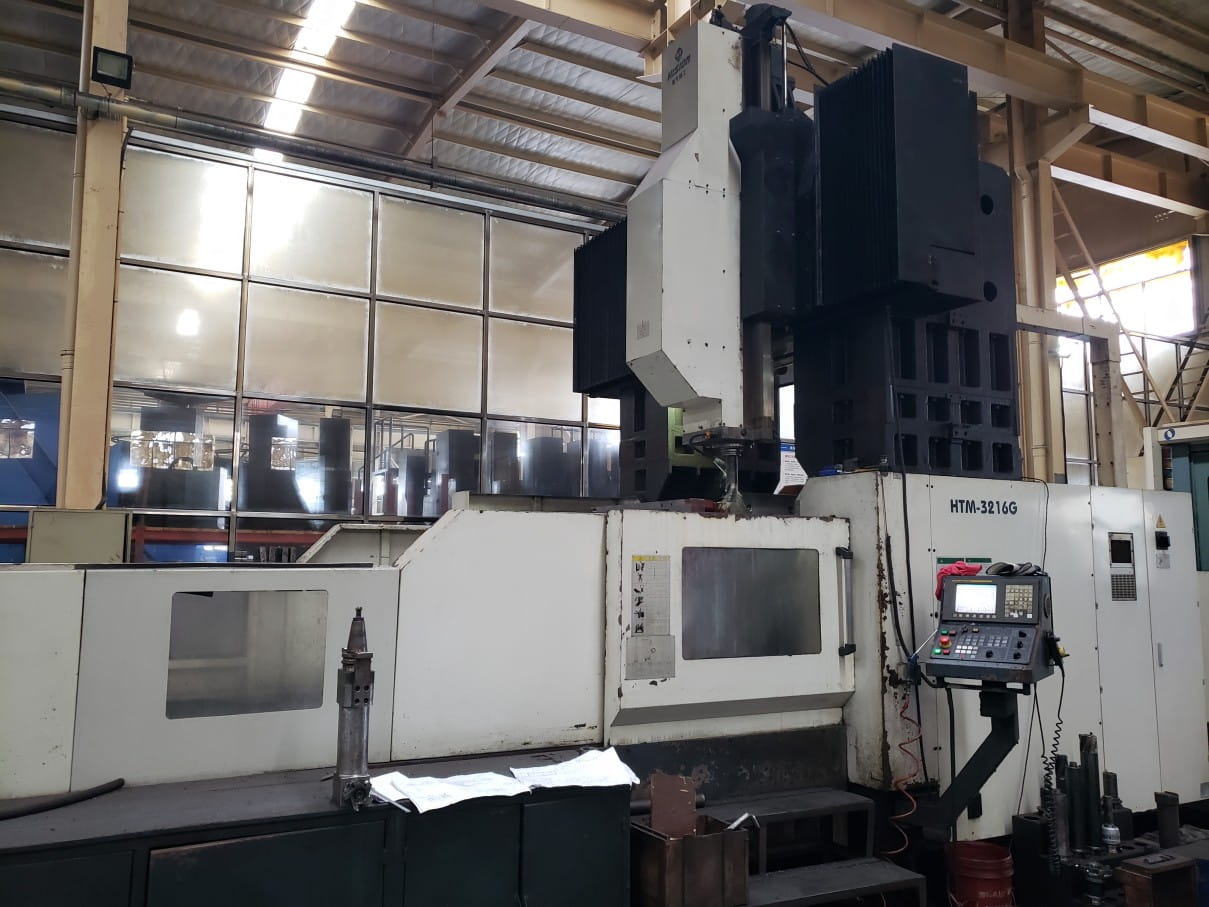

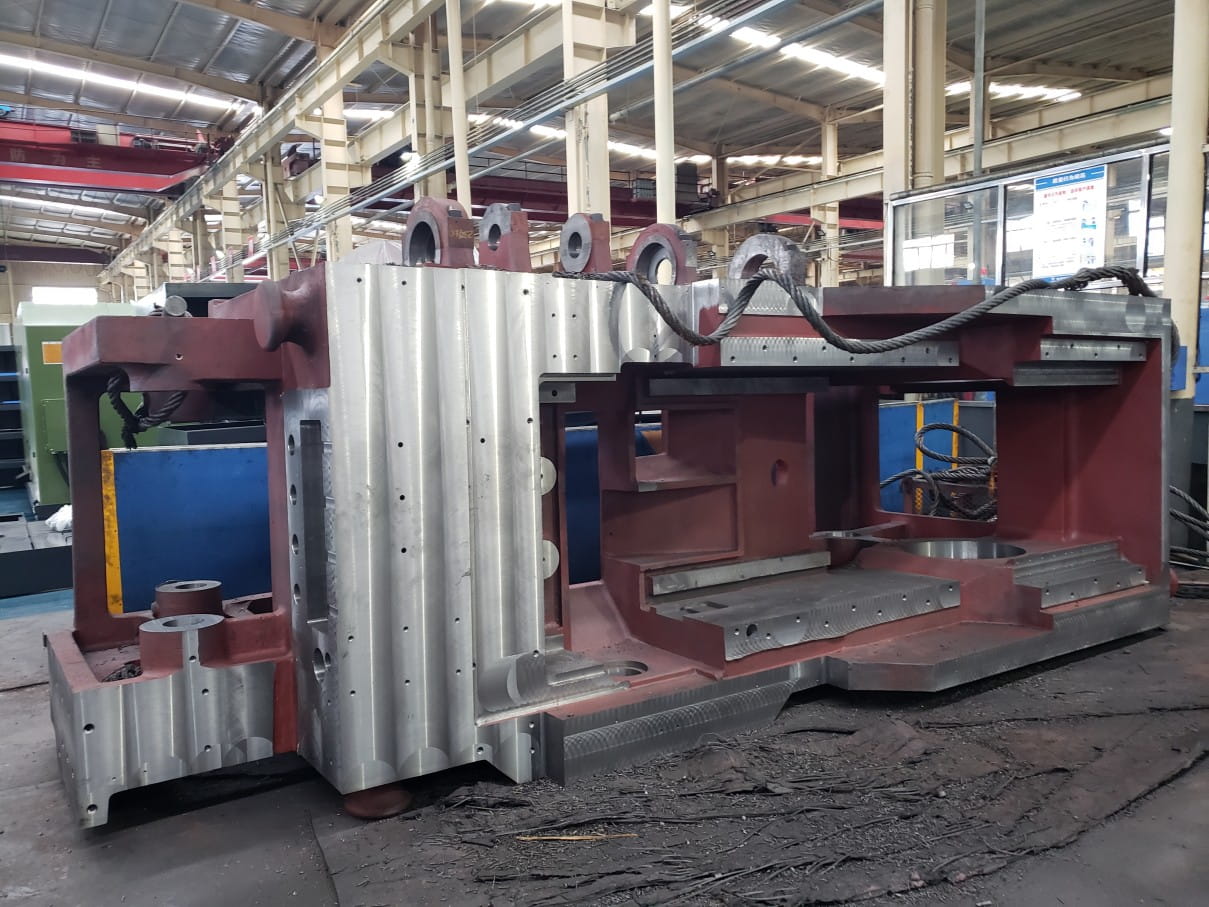

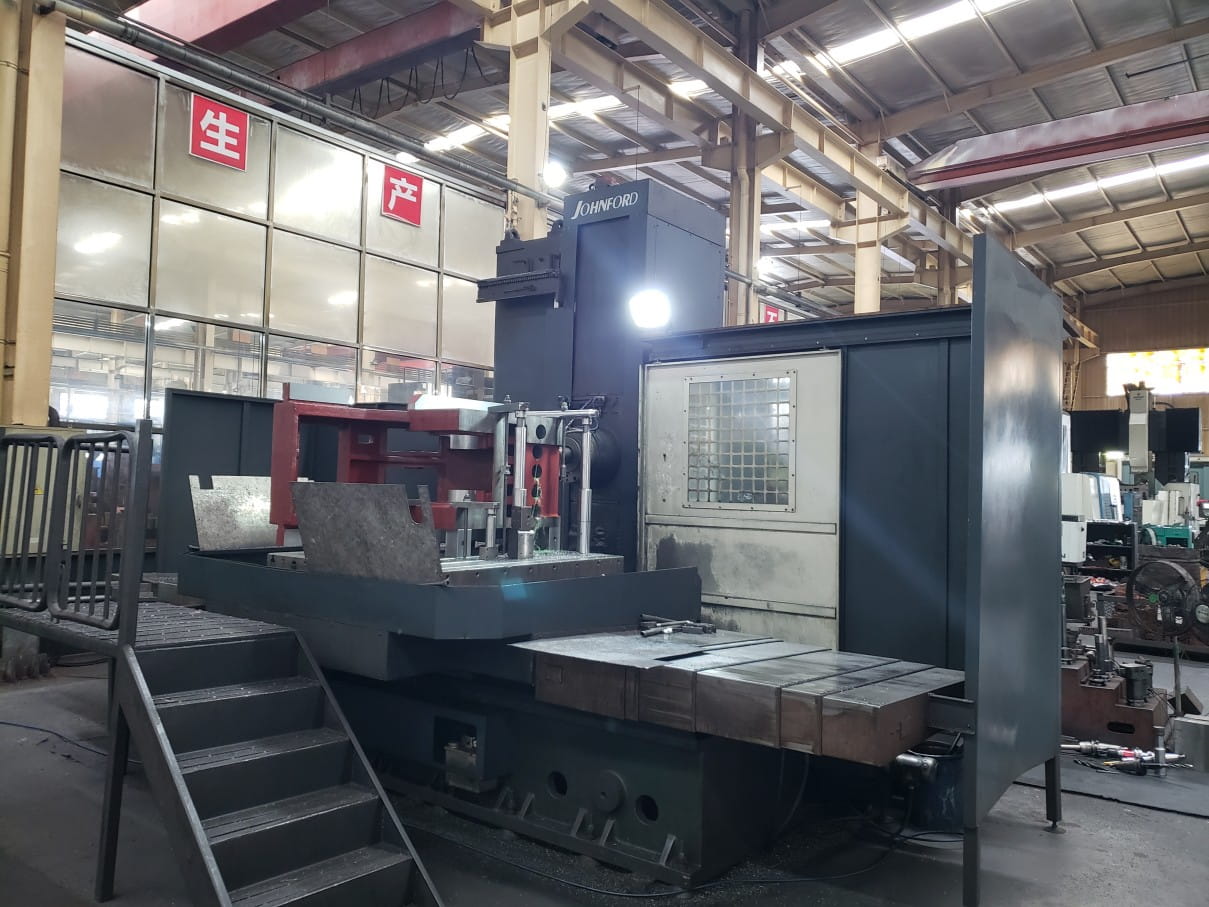

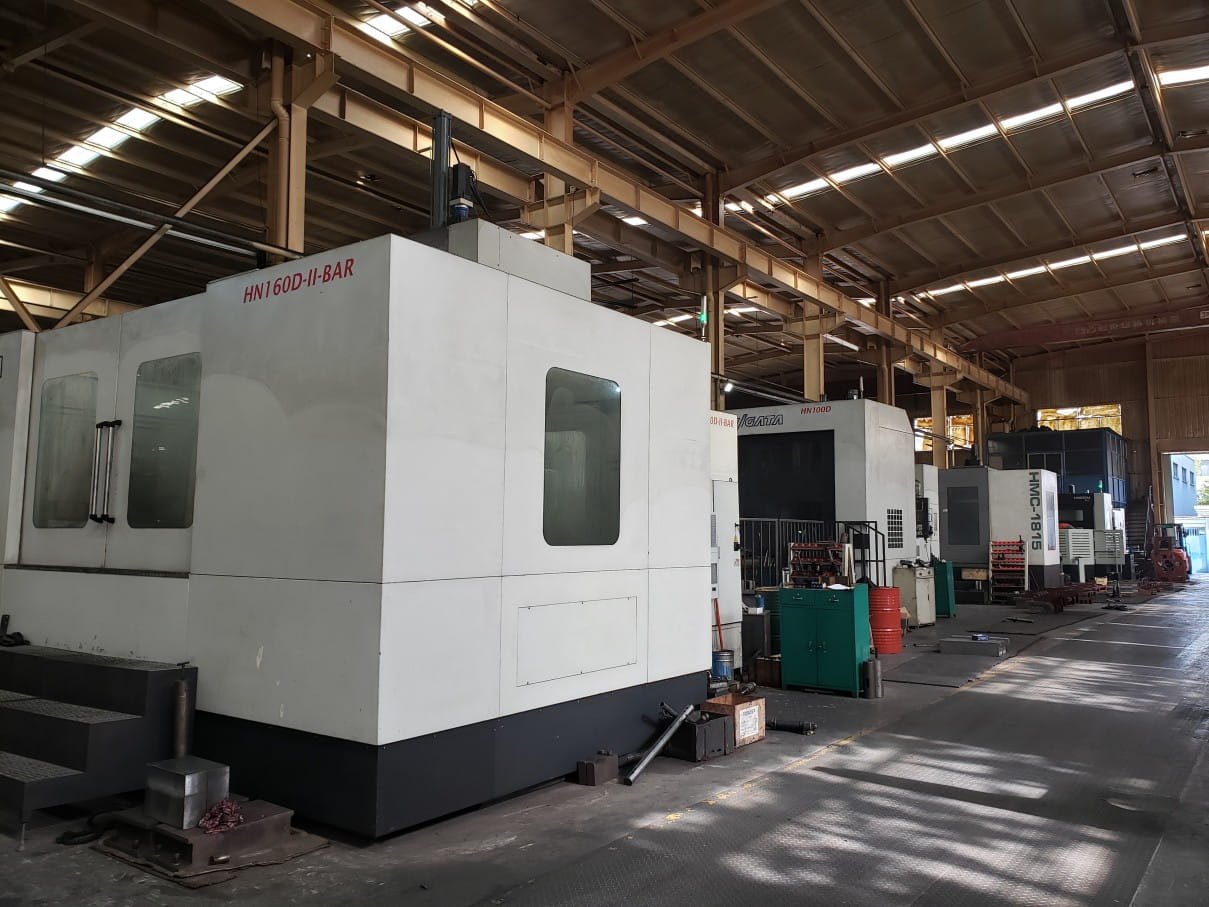

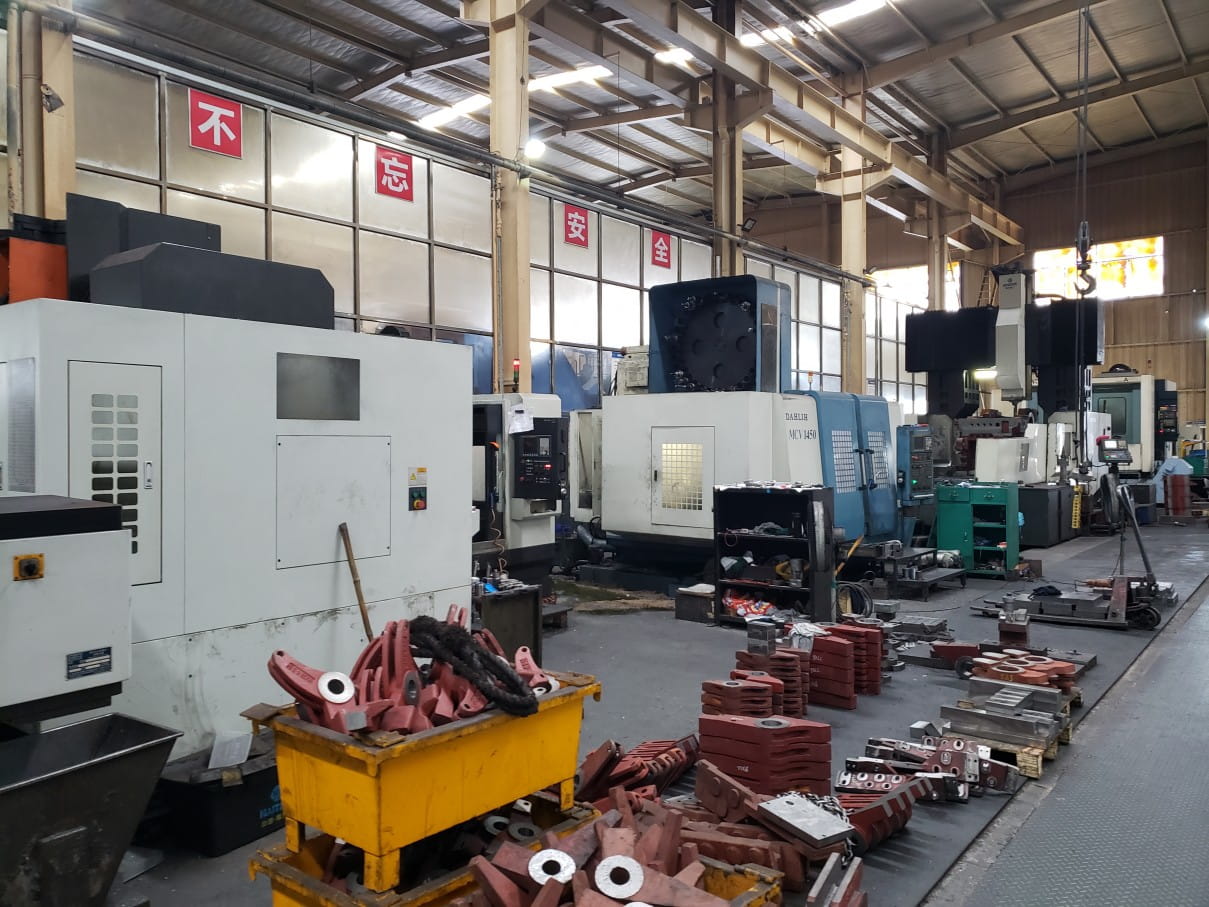

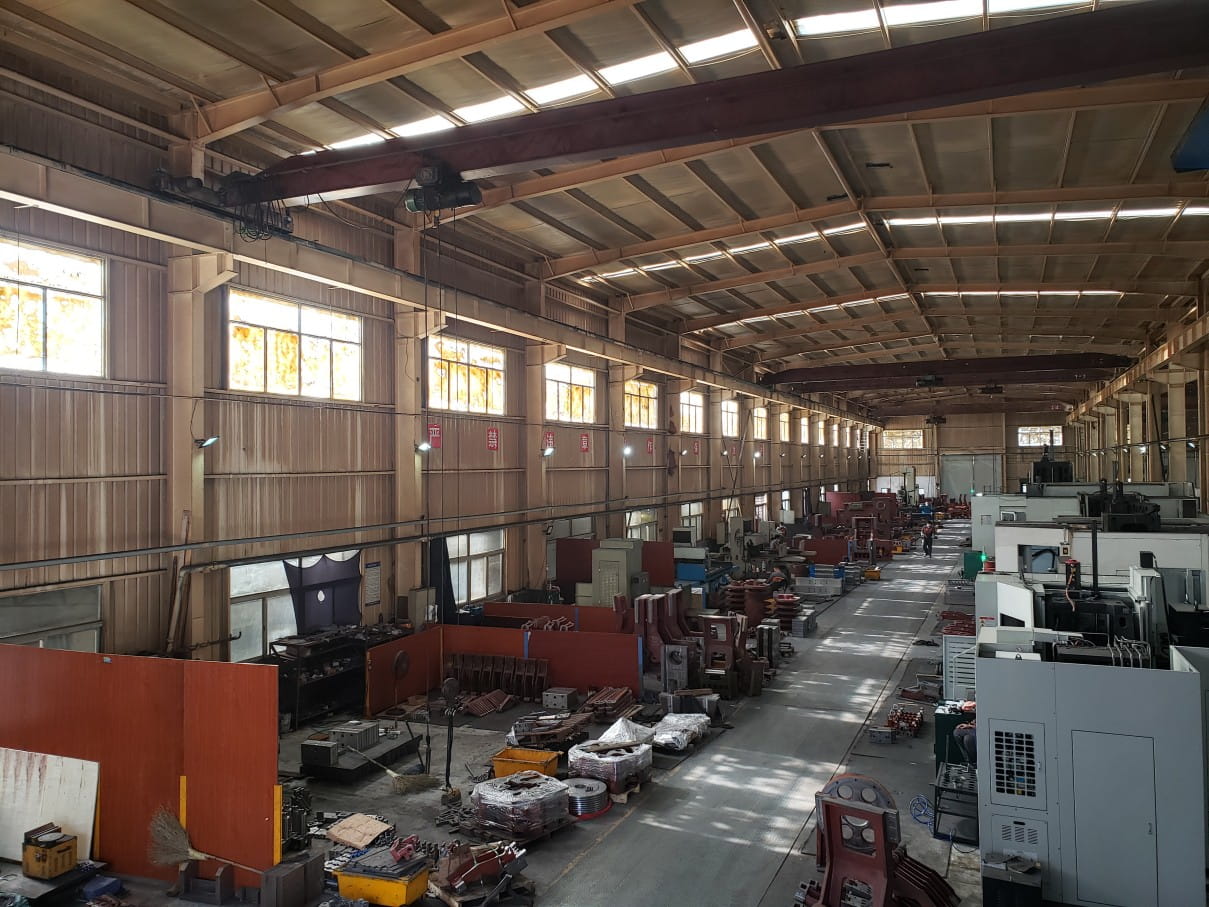

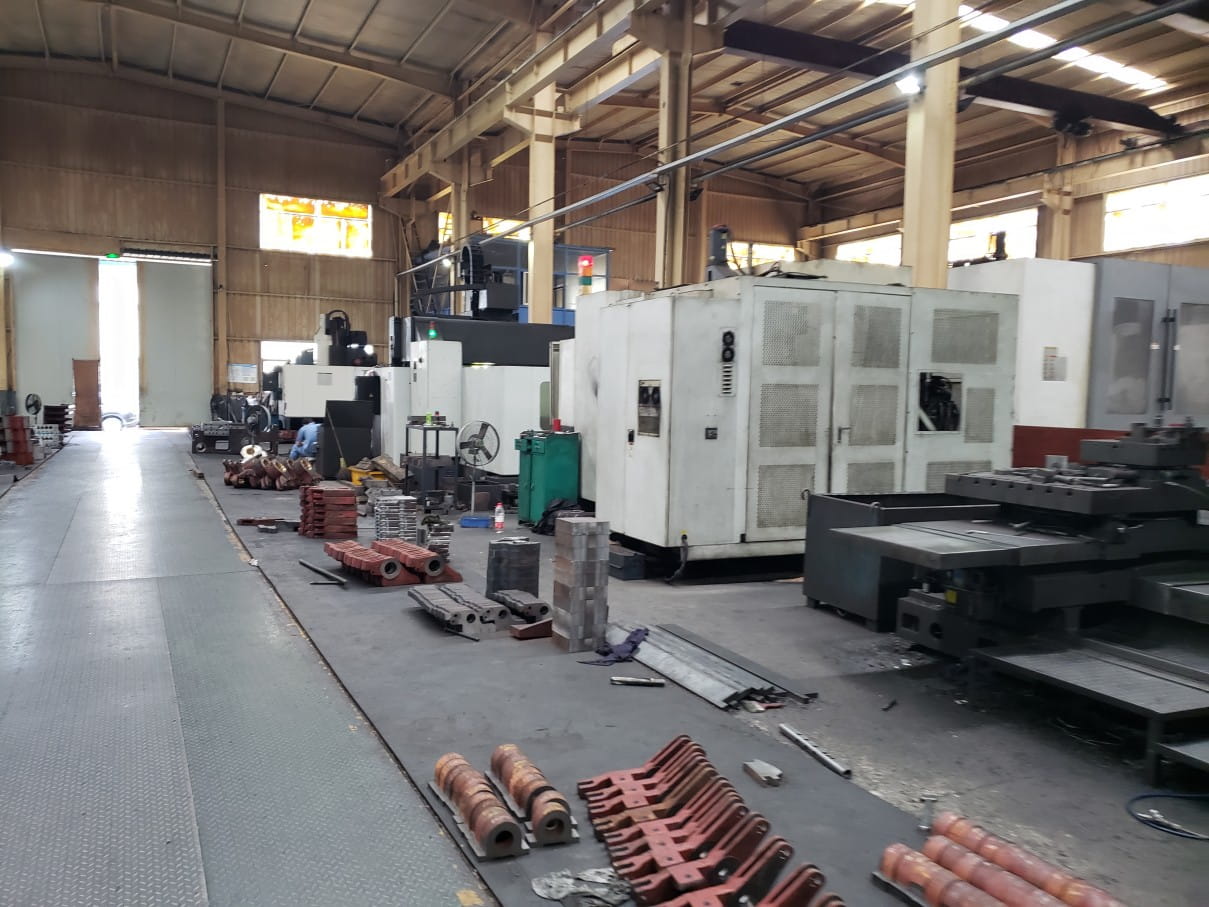

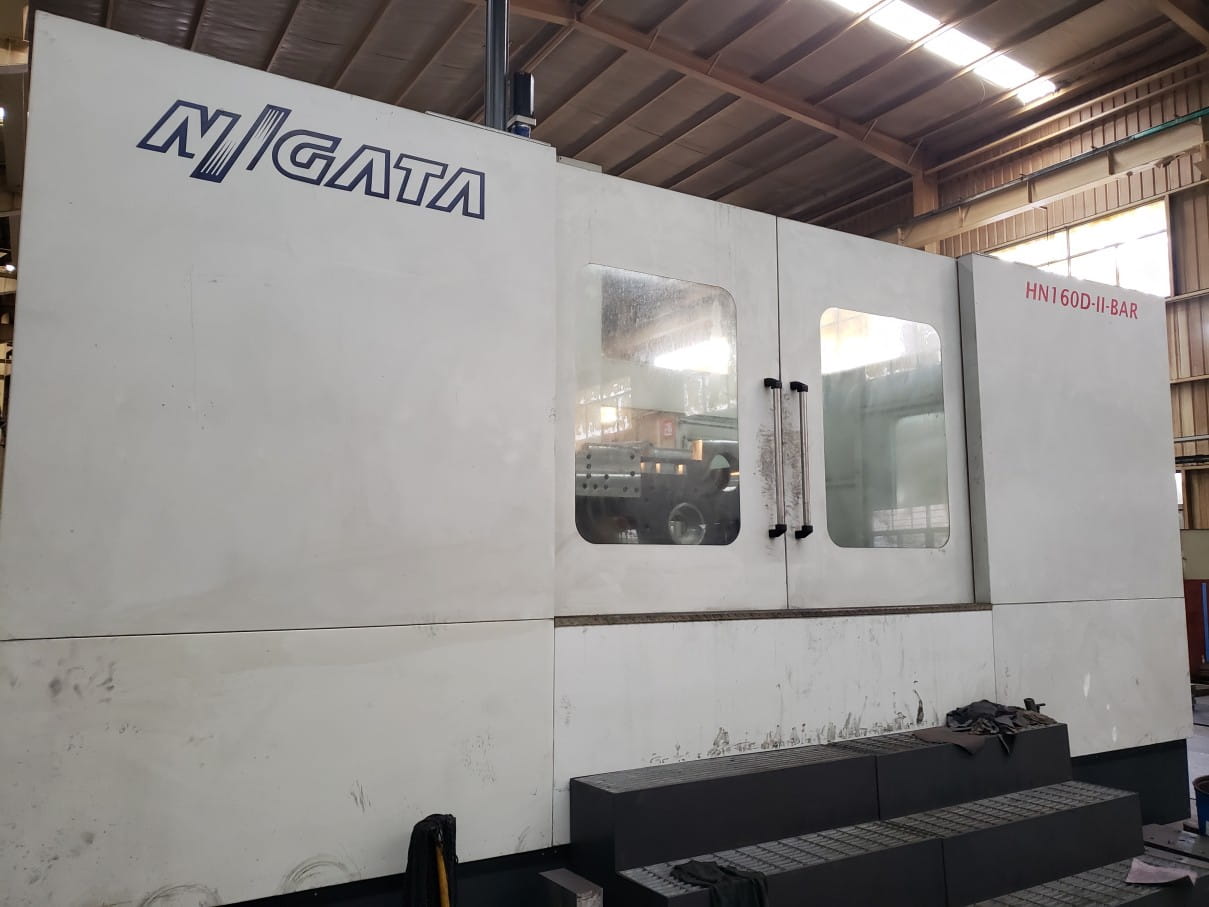

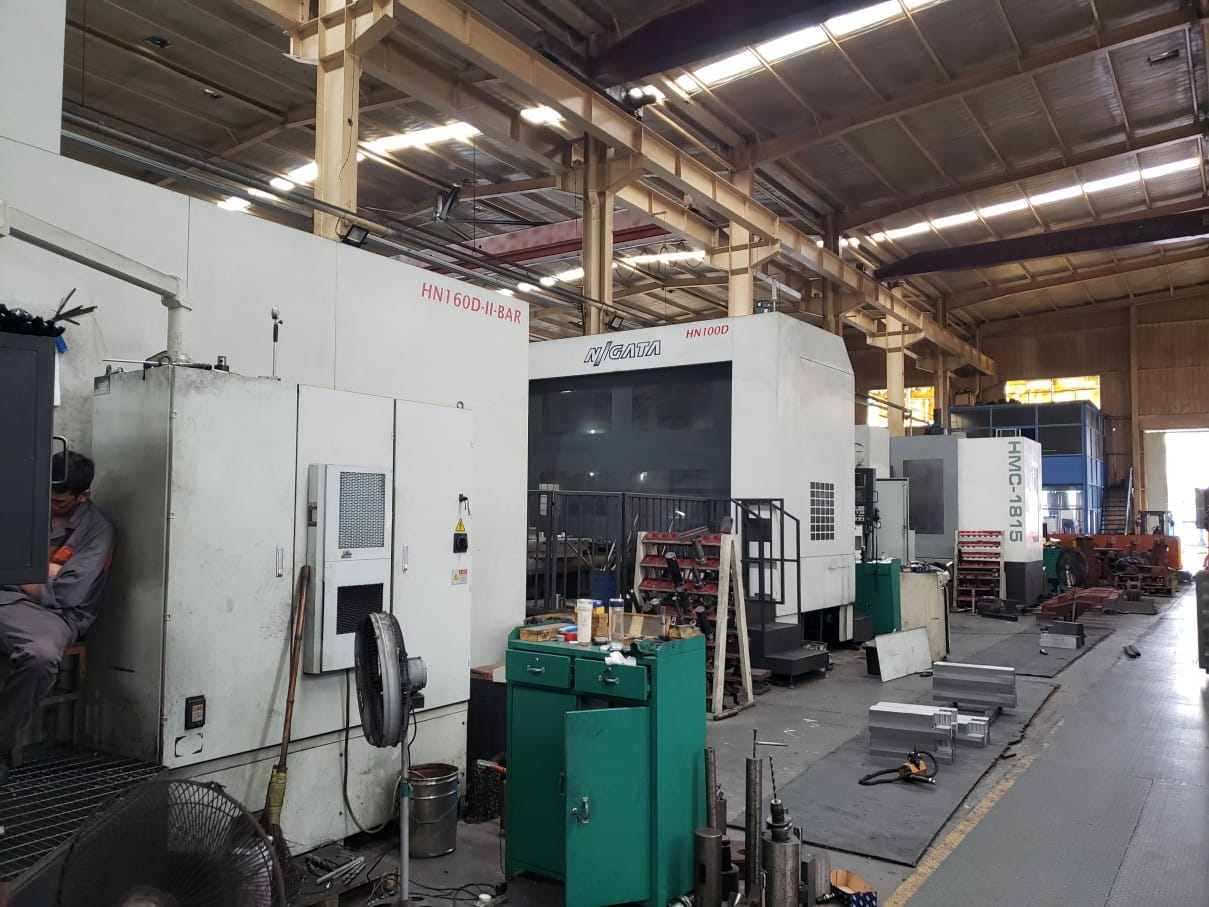

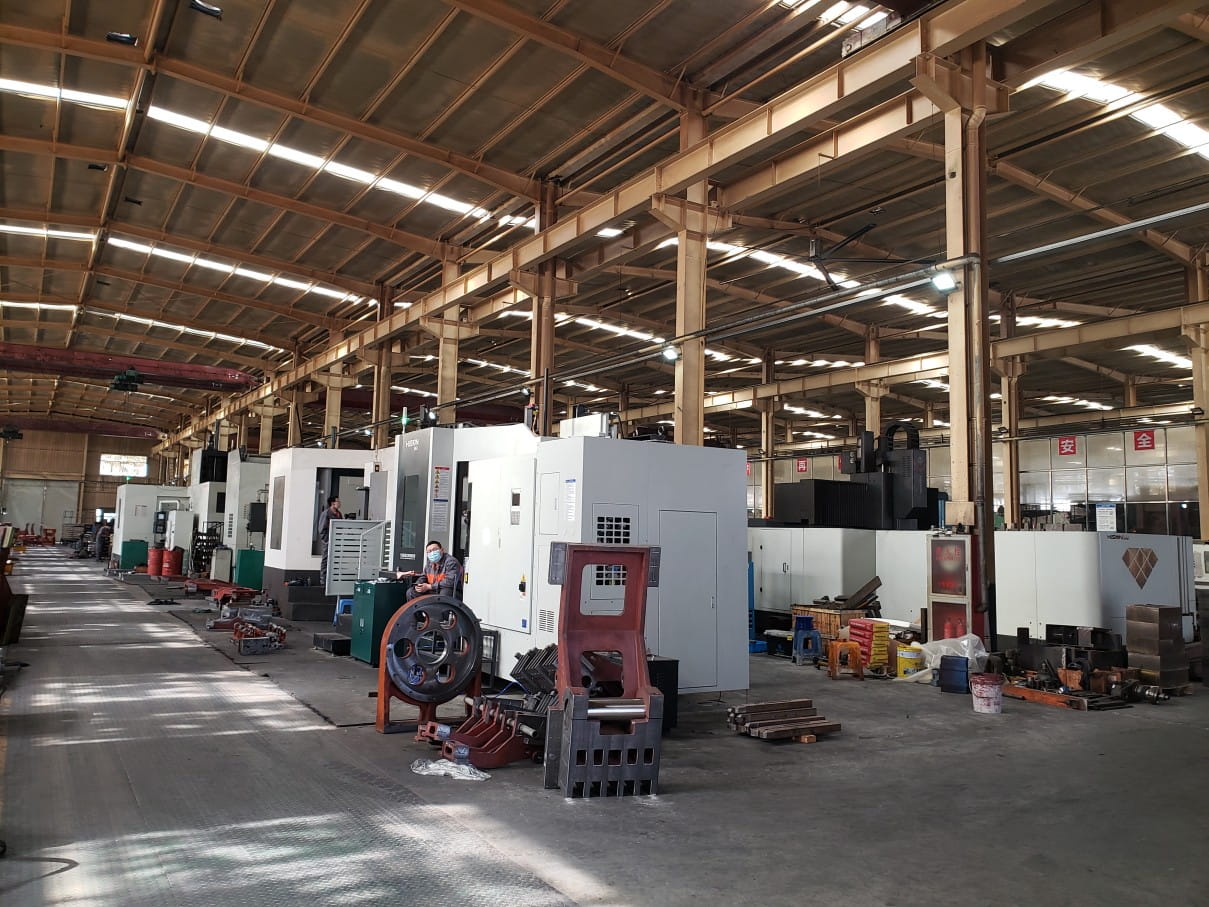

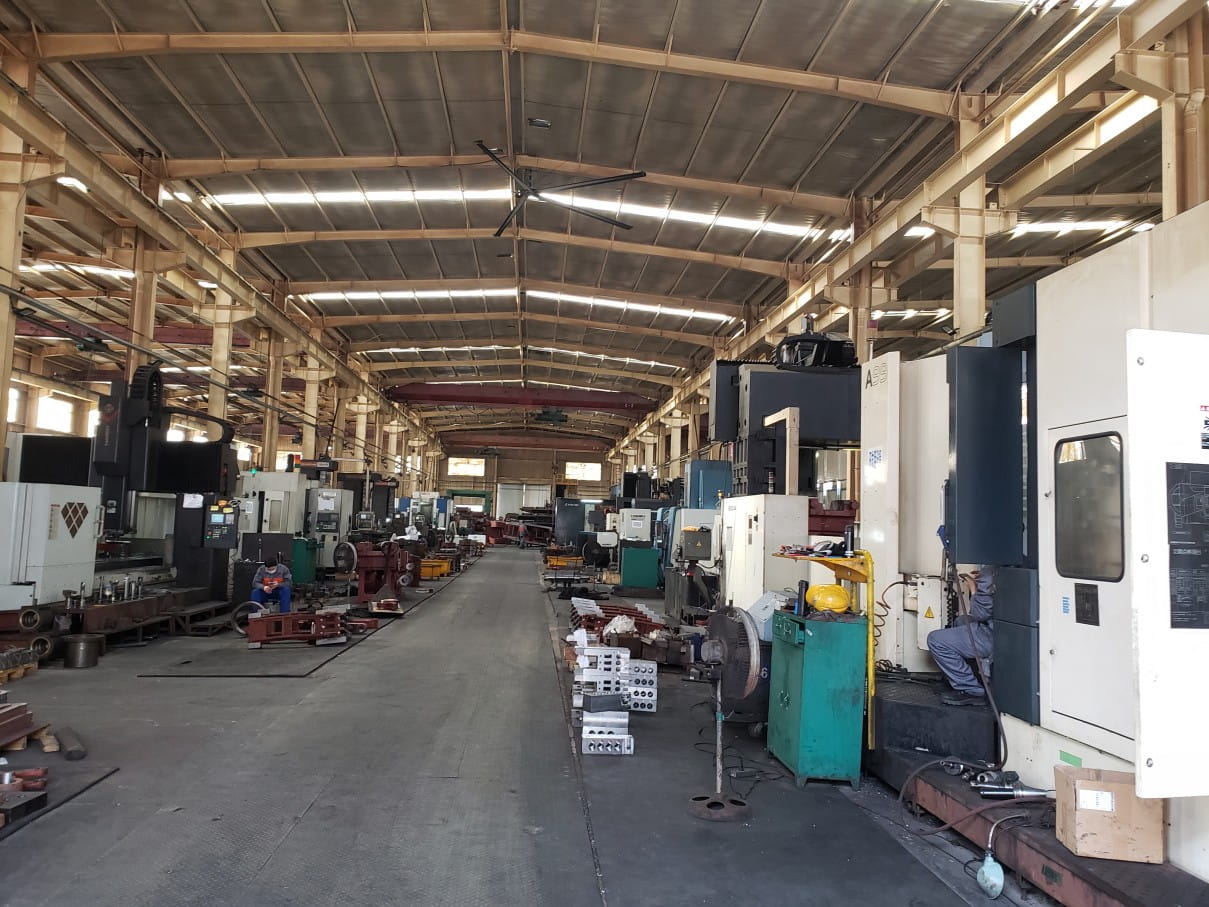

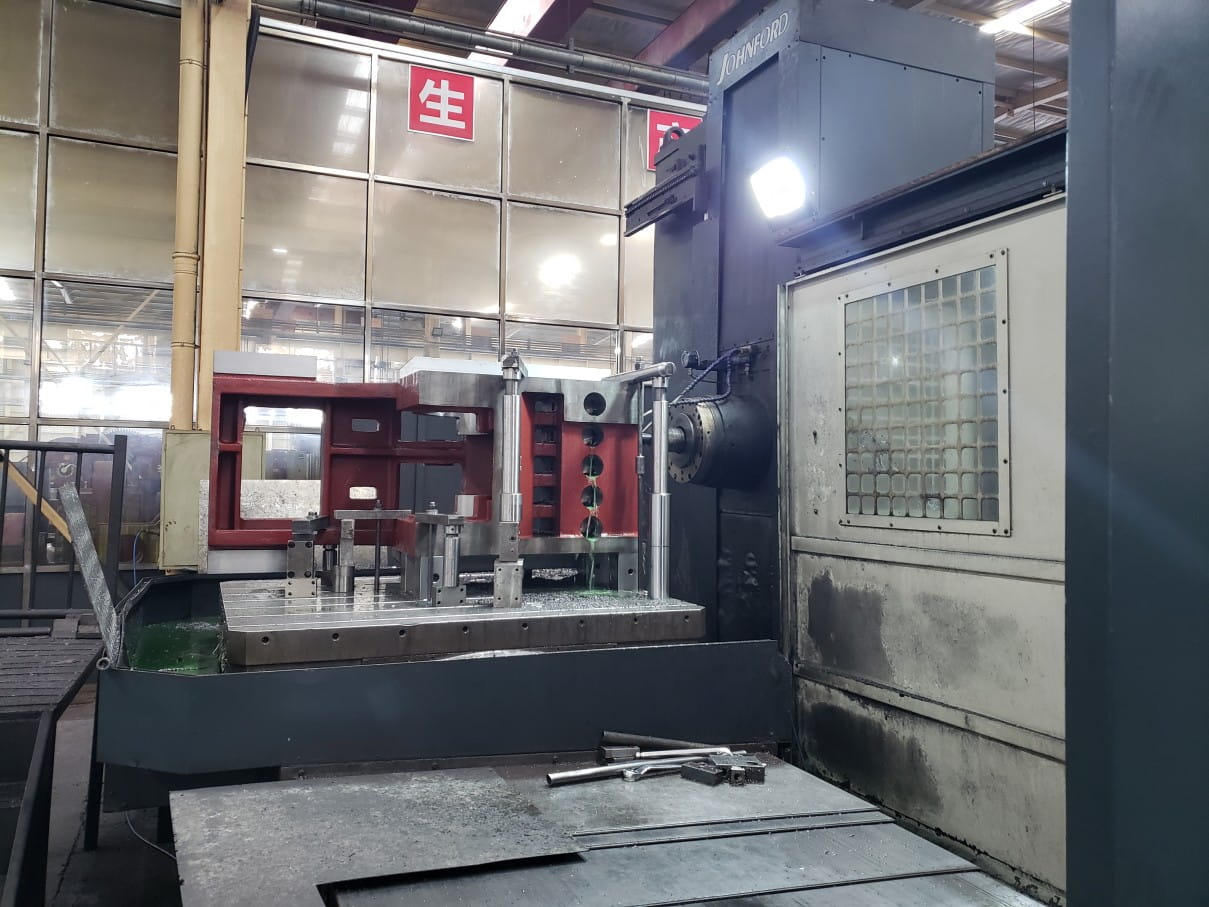

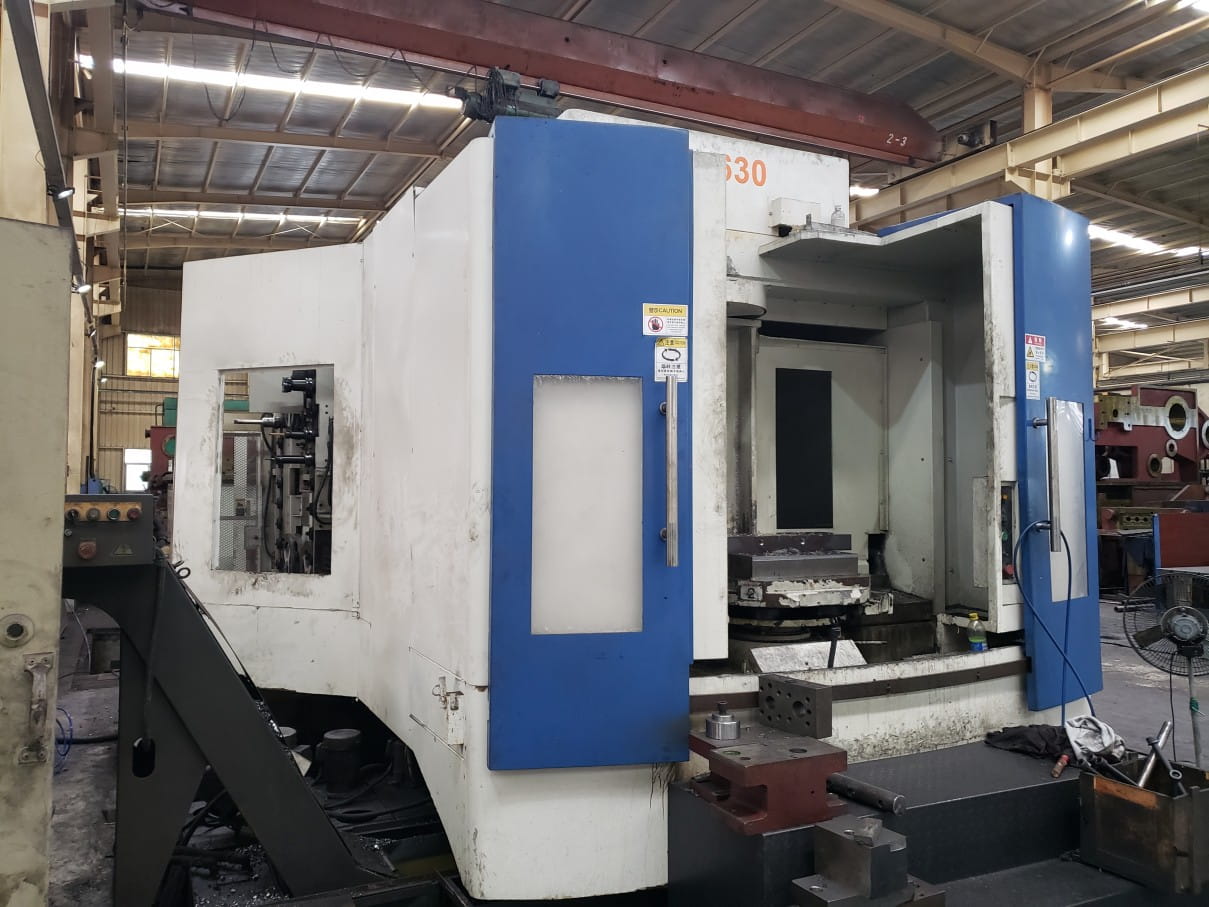

MANUFACTURING FACILITY OF HAIXING BOLT FORMER

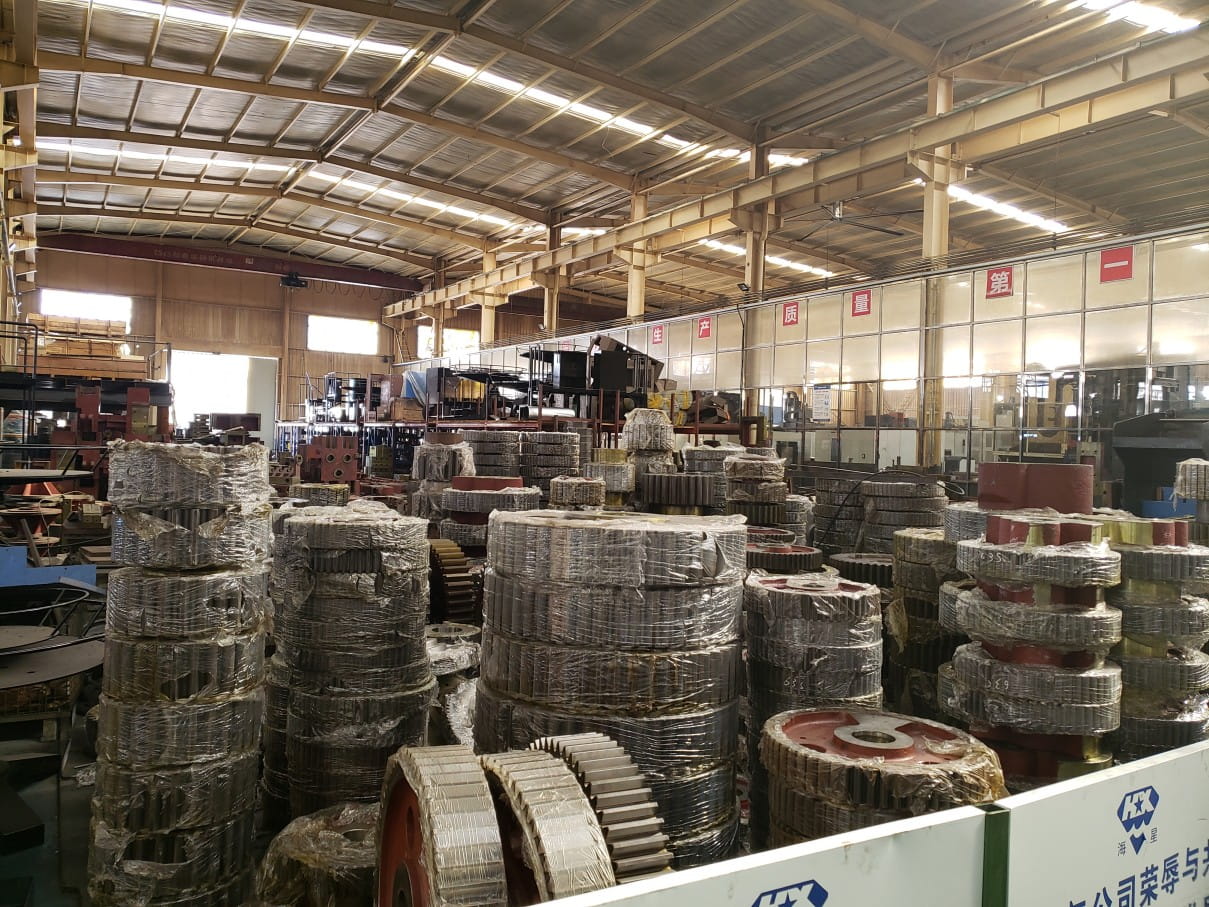

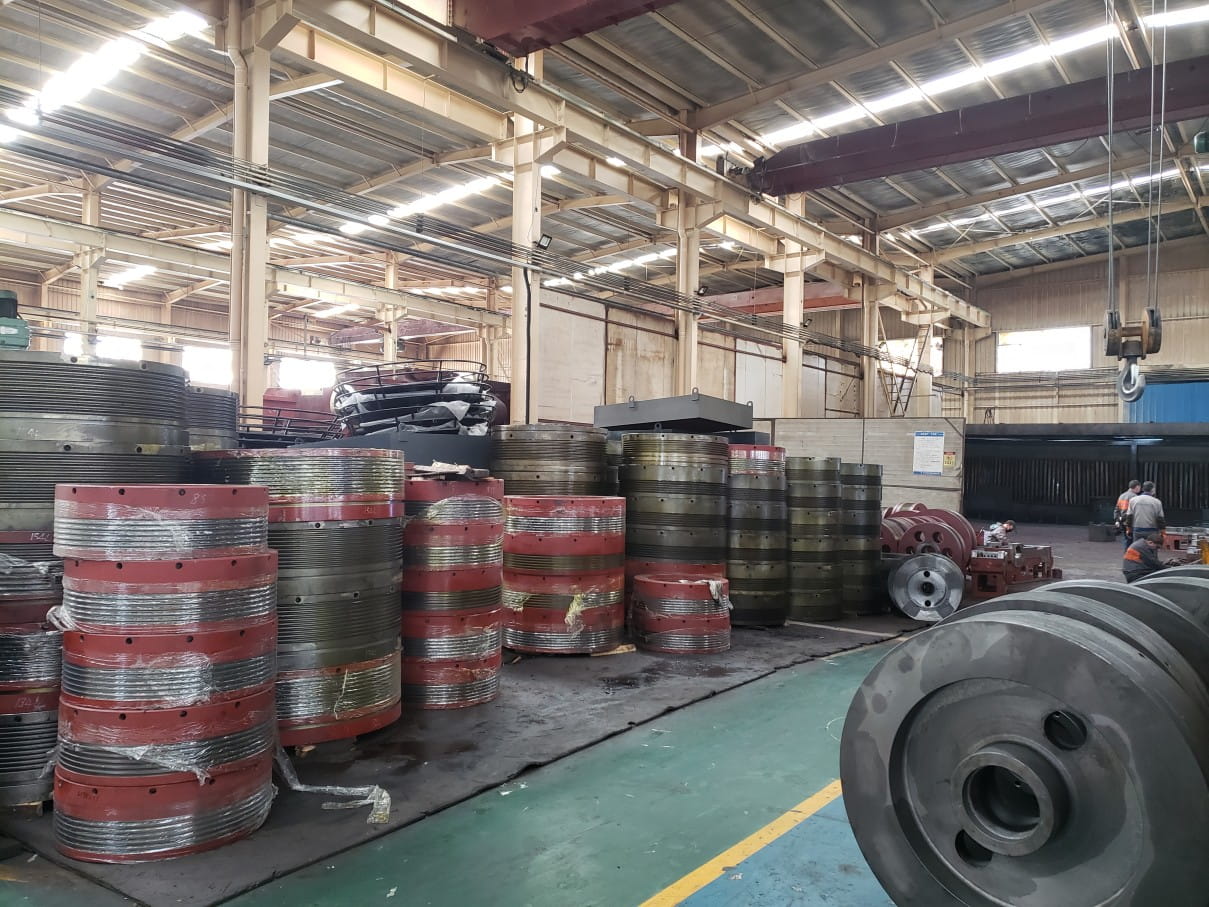

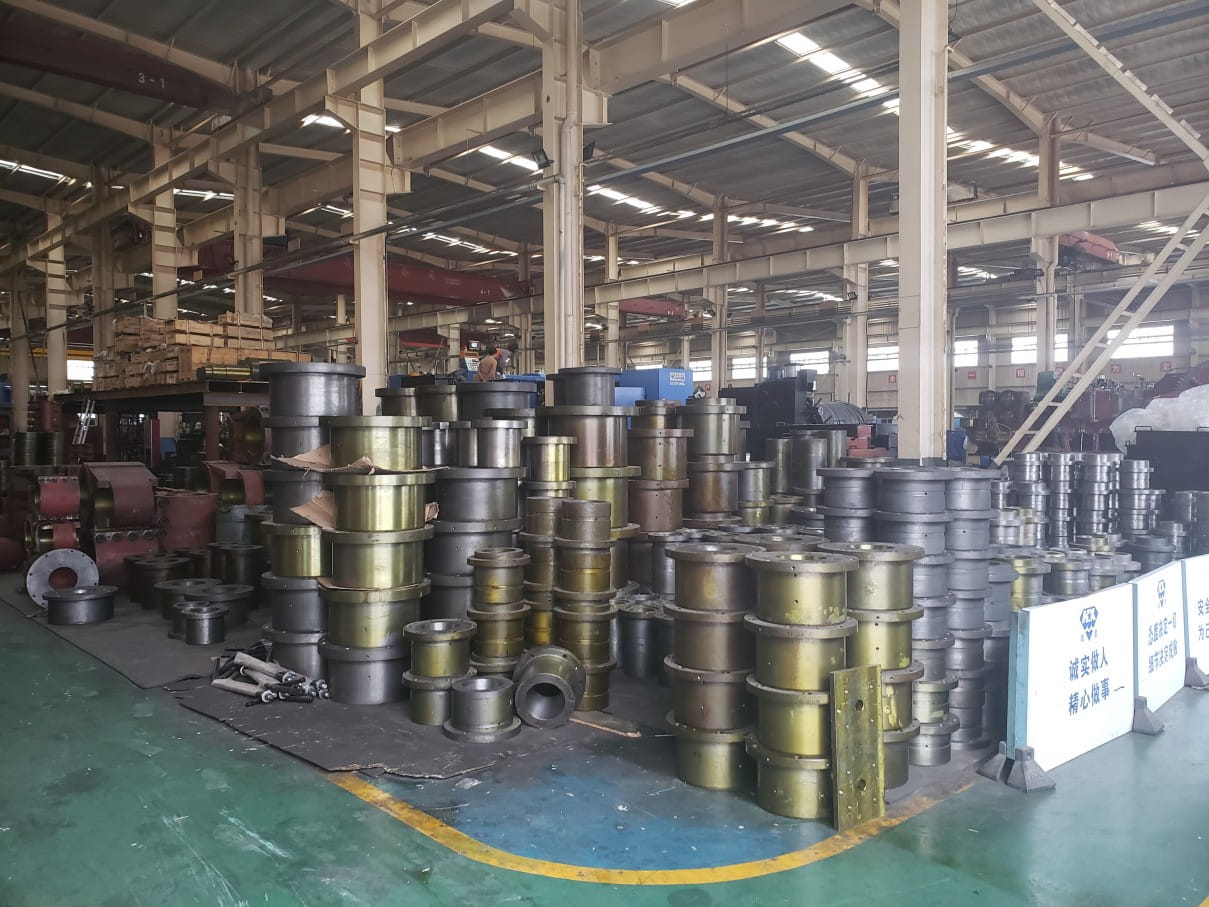

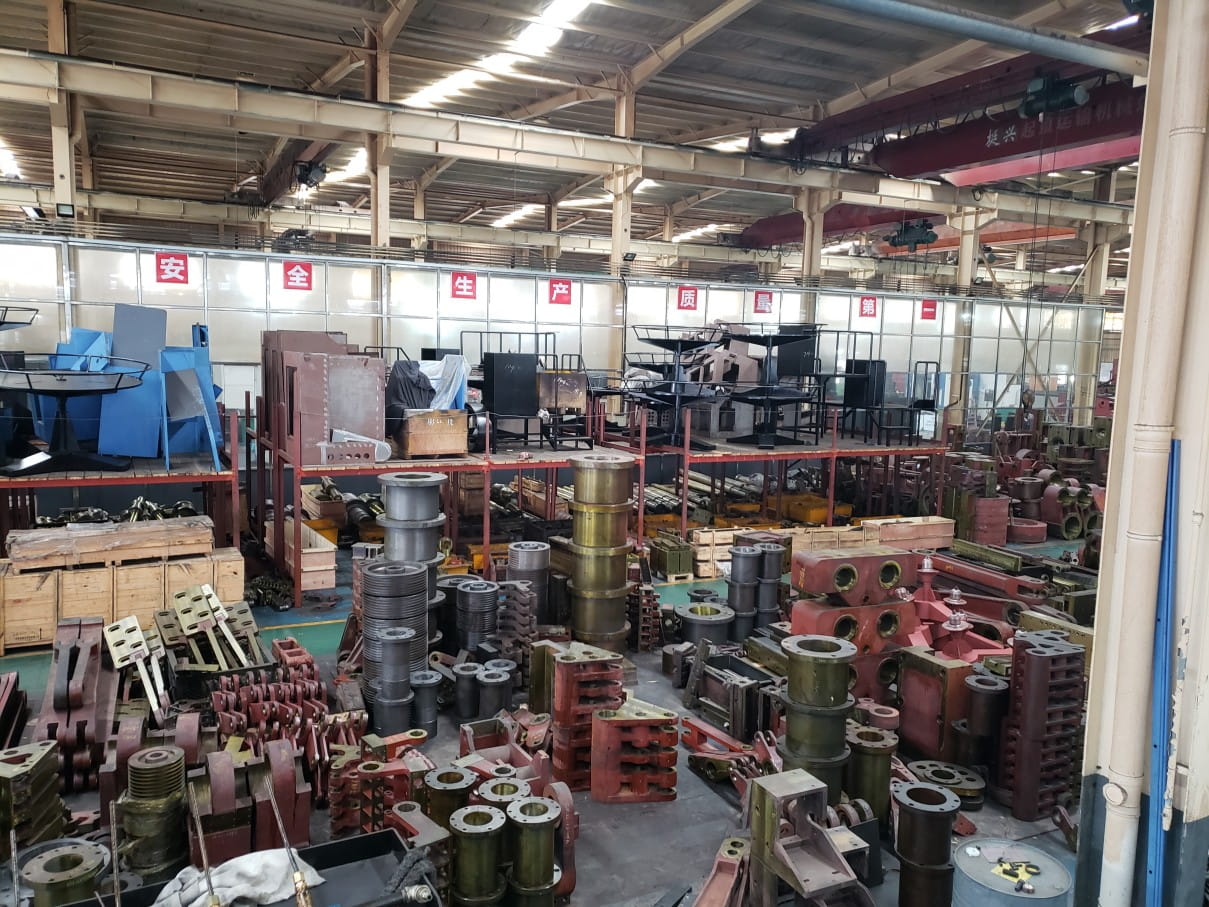

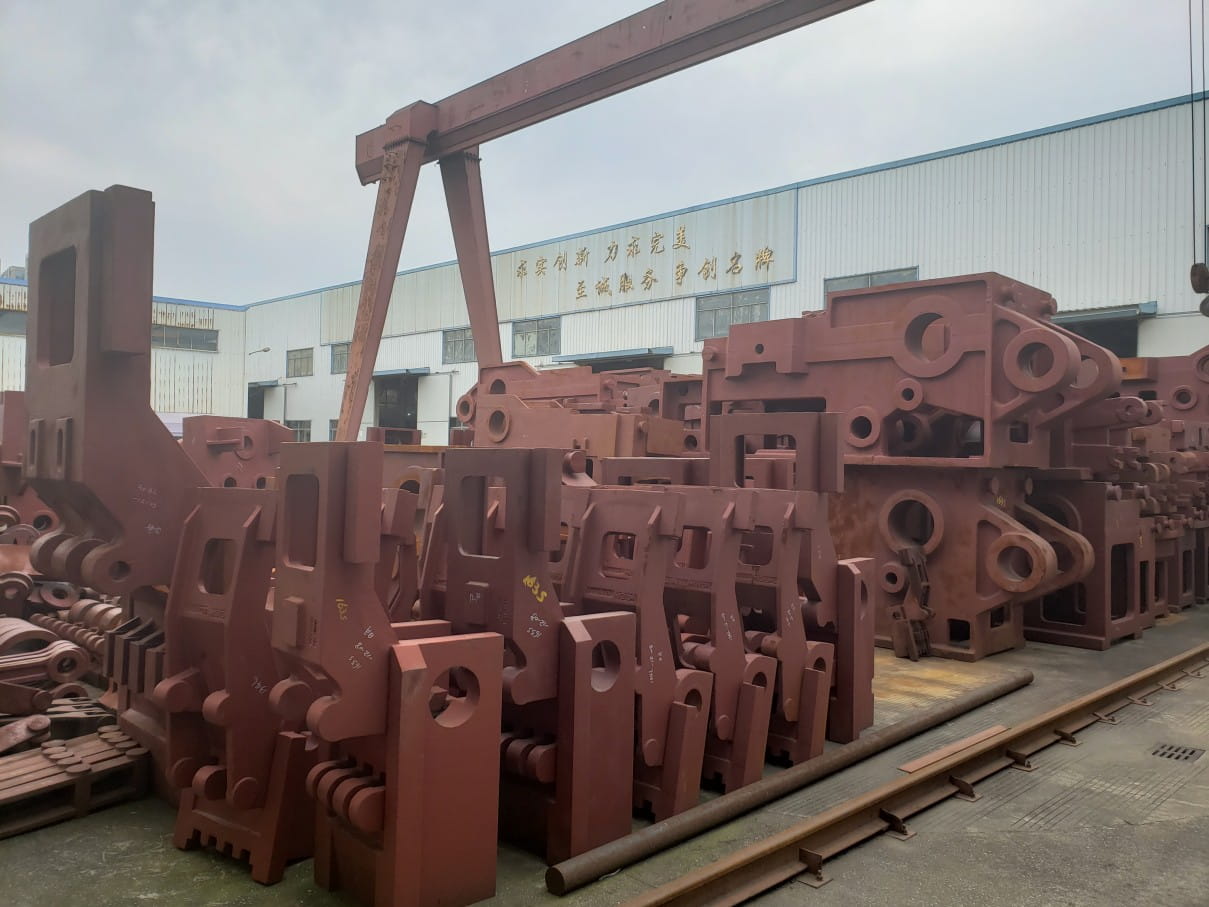

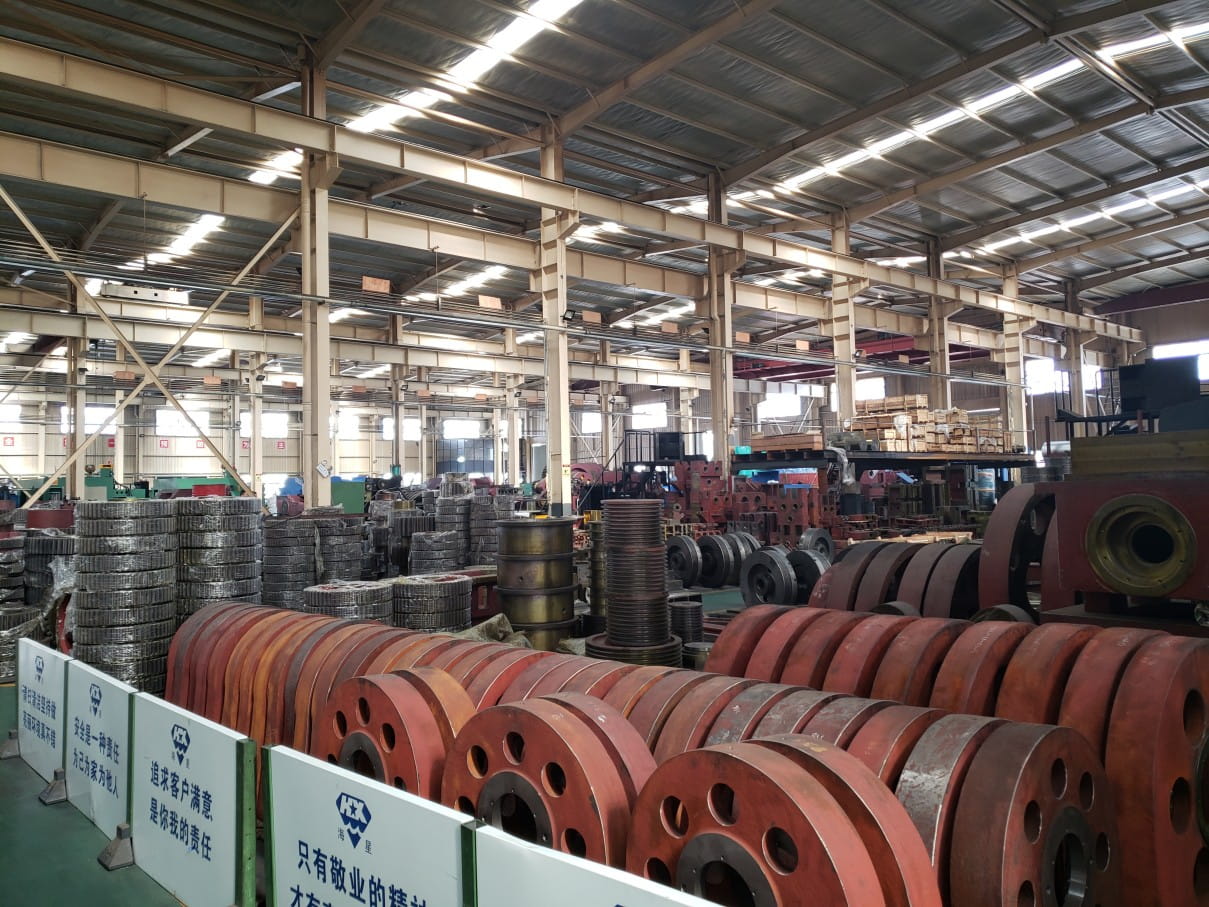

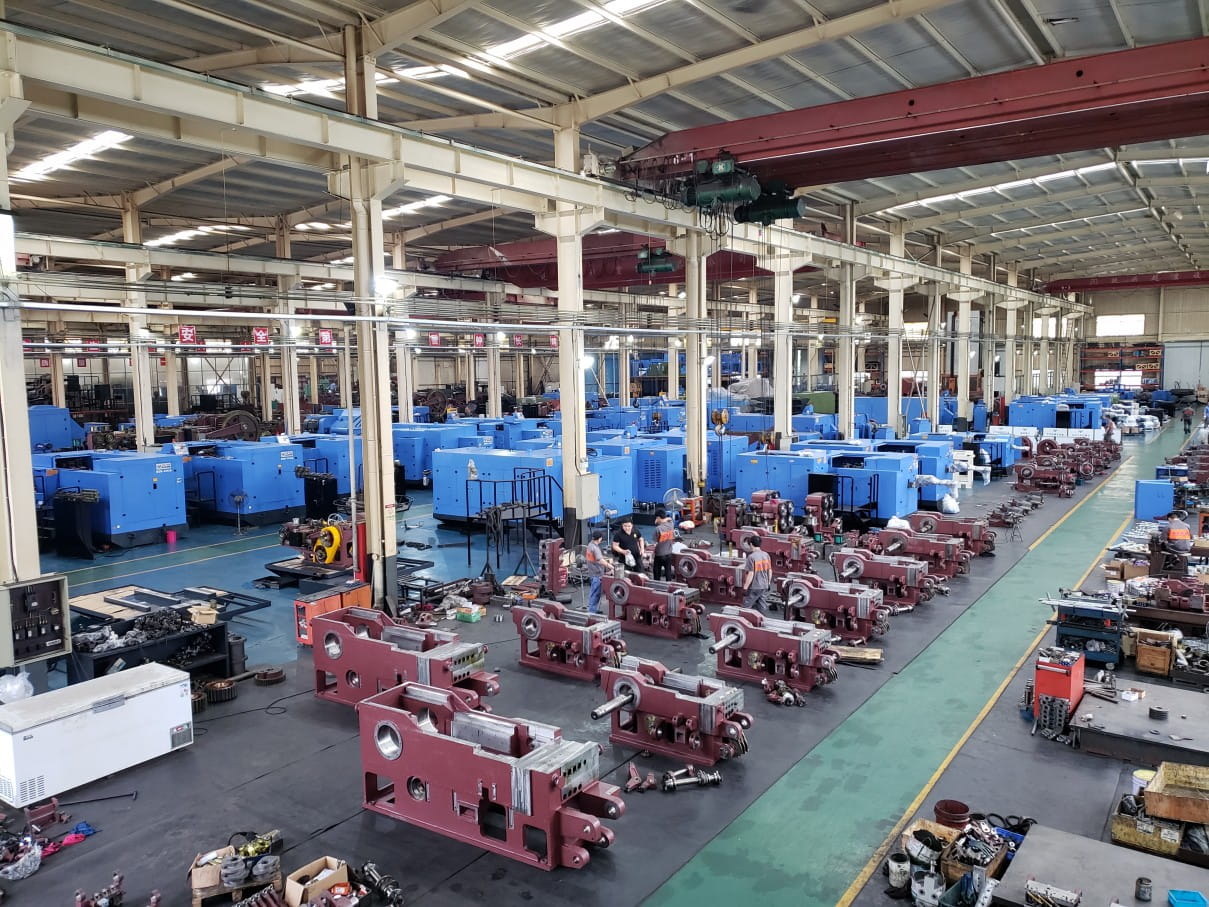

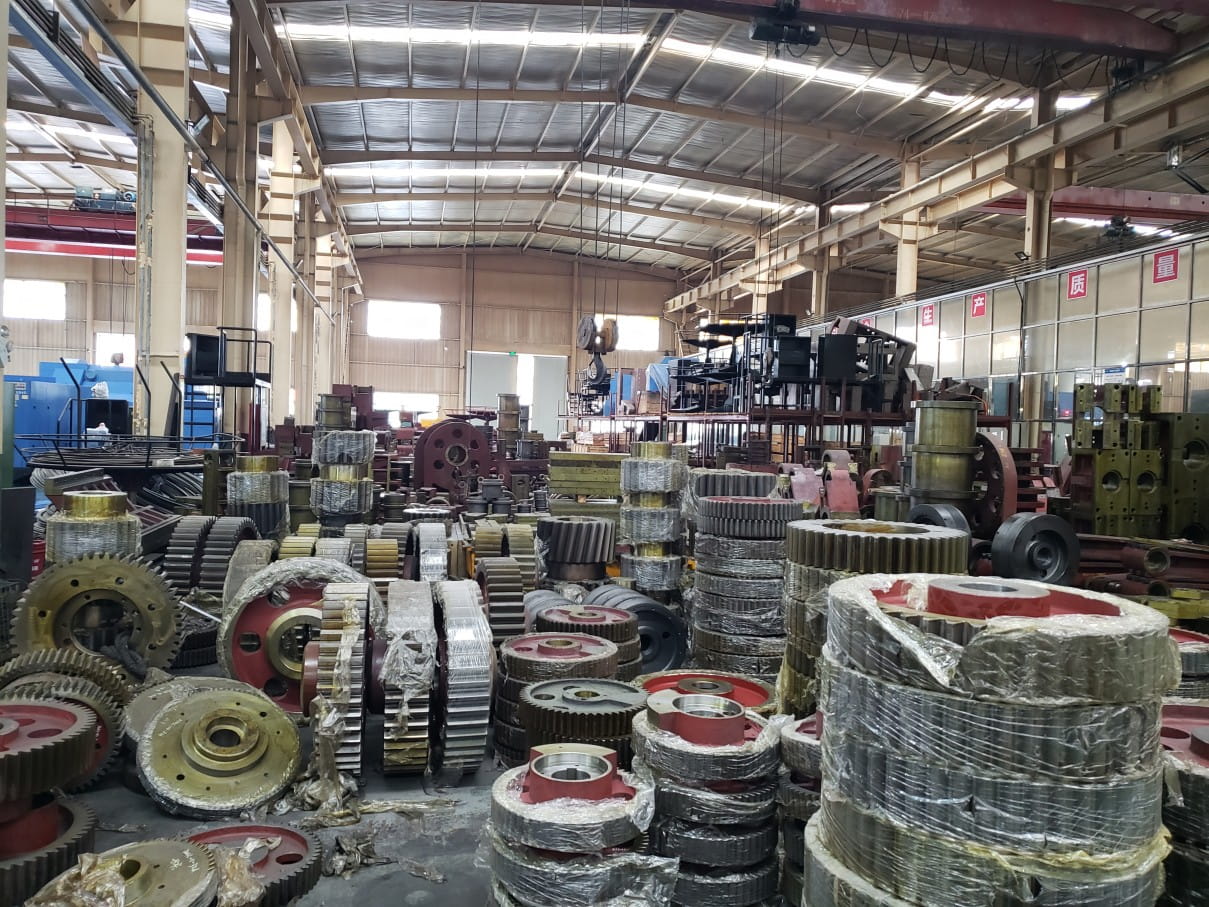

ASSEMBLY UNIT AND STORAGE OF HAIXING BOLT FORMER
