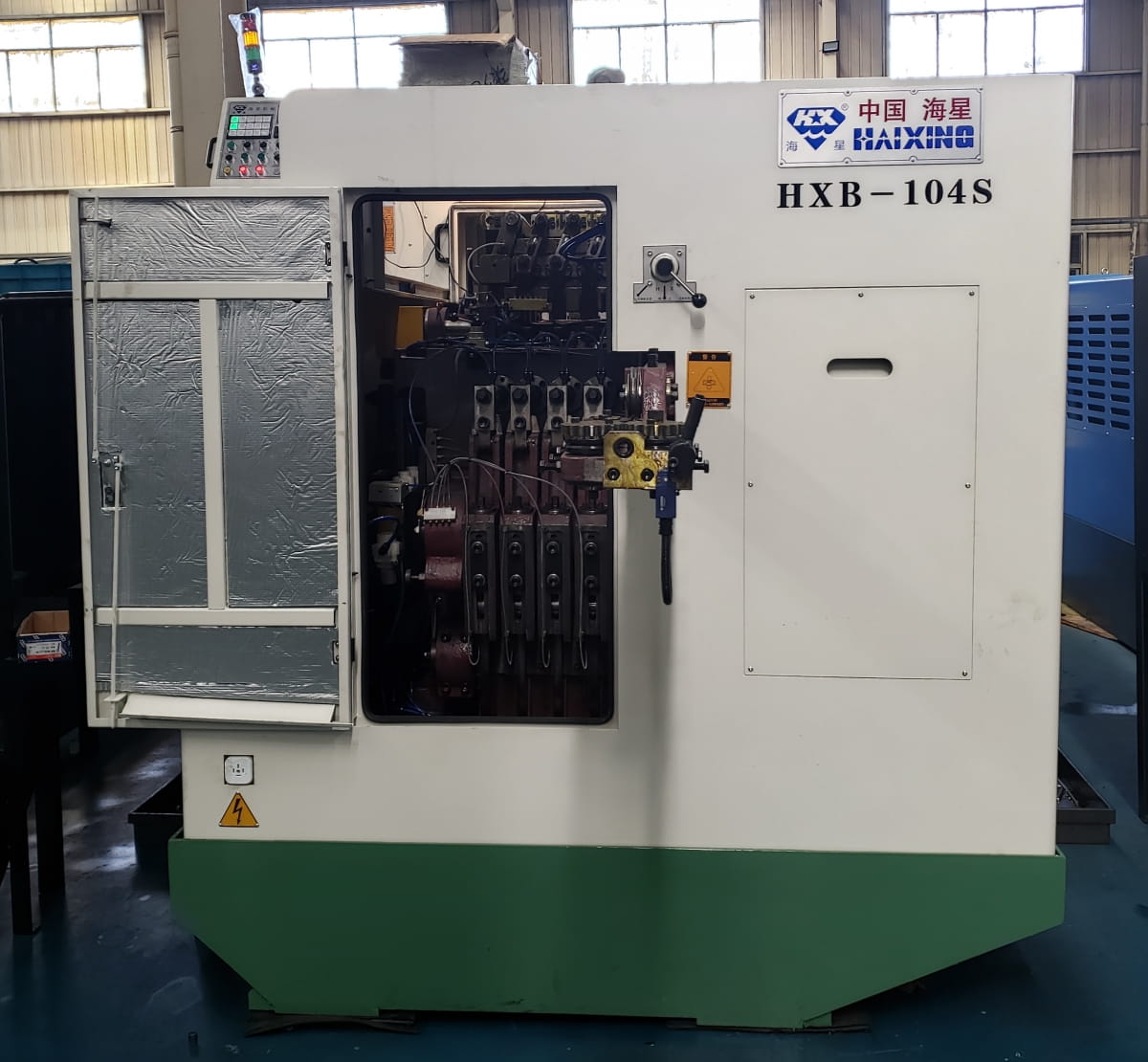

Specifications of four stations bolt maker
| Specifications | Unit | HXJM-44S | HXB-64S | HXB-84S | HXB-84L | HXB-104S | HXB-104LL |
| Forging stations | No. | 4 | 4 | 4 | 4 | 4 | 4 |
| Forging force | Kgs | 16000 | 40000 | 60000 | 70000 | 80000 | 90000 |
| Max. output | Pcs/Min. | 350 | 260 | 180 | 120 | 150 | 110 |
| Max. cut off diameter | Mm | 4 | 8 | 10 | 10 | 12 | 12 |
| Max. cut off length | Mm | 66 | 95 | 100 | 175 | 135 | 245 |
| Main motor | Kw | 11 | 15 | 22 | 22 | 30 | 30 |
| P.K.O stroke | Mm | 12 | 12 | 15 | 30 | 20 | 40 |
| K.O stroke | Mm | 52 | 80 | 85 | 160 | 110 | 230 |
| Die pitch | Mm | 50 | 60 | 70 | 80 | 90 | 90 |
| Cut off die diameter | Mm | 20 | 30 | 30 | 30 | 45 | 45 |
| Punch die dimension | Mm | 35*75 | 40*90 | 45*115 | 45*115 | 53*115 | 53*180 |
| Main die dimension | Mm | 40*85 | 50*108 | 60*108 | 70*185 | 75*135 | 80*240 |
| Nominal bolt size | Mm | 1-4 | 3-6 | 5-8 | 5-8 | 6-10 | 6-10 |
| Length under head | Mm | 6-50 | 10-75 | 15-75 | 30-150 | 20-110 | 50-200 |
| Appro. weight | Kgs | 4300 | 8100 | 13800 | 15500 | 18000 | 25000 |
| Appro. floor area | M | 5.6*1.38*1.43 | 6.13*2.43*1.83 | 6.97*2.88*1.85 | 9*3.2*1.9 | 6.9*2.96*2.29 | 9.5*3.22*2.4 |
| Specifications | Unit | HXB-134S | HXB-134L | HXB-134LL | HXB-164S | HXB-164LL | HXB-204L |
| Forging stations | No. | 4 | 4 | 4 | 4 | 4 | 4 |
| Forging force | Kgs | 110000 | 120000 | 130000 | 210000 | 210000 | 350000 |
| Max. output | Pcs/Min. | 120 | 120 | 70 | 100 | 60 | 80 |
| Max. cut off diameter | Mm | 15 | 15 | 15 | 18 | 18 | 23 |
| Max. cut off length | Mm | 140 | 190 | 350 | 205 | 350 | 250 |
| Main motor | Kw | 37 | 37 | 37 | 45 | 55 | 75 |
| P.K.O stroke | Mm | 20 | 45 | 60 | 30 | 45 | 45 |
| K.O stroke | Mm | 110 | 160 | 330 | 170 | 330 | 210 |
| Die pitch | Mm | 110 | 110 | 110 | 126 | 126 | 138 |
| Cut off die diameter | Mm | 55 | 55 | 55 | 60 | 60 | 75 |
| Punch die dimension | Mm | 60*115 | 60*150 | 60*250 | 75*160 | 75*185 | 90*190 |
| Main die dimension | Mm | 86*135 | 85*190 | 90*340 | 100*205 | 100*345 | 125*240 |
| Nominal bolt size | Mm | 8-12.7 | 8-12.7 | 8-12.7 | 10-16 | 10-16 | 12-20 |
| Length under head | Mm | 20-110 | 30-155 | 100-300 | 20-160 | 100-300 | 25-200 |
| Appro. weight | Kgs | 21000 | 24500 | 40000 | 43000 | 66000 | 65000 |
| Appro. floor area | M | 6.9*2.98*2.29 | 9.2*3.1*2.43 | 14*3.31*2.2 | 14*3.69*2.63 | 15.5*3.69*2.63 | 12.3*4.06*2.82 |
| Specifications | Unit | HXB-204LL | HXB-254L | HXB-304L | HXB-364L |
| Forging stations | No. | 4 | 4 | 4 | 4 |
| Forging force | Kgs | 380000 | 430000 | 550000 | 750000 |
| Max. output | Pcs/Min. | 60 | 60 | 45 | 45 |
| Max. cut off diameter | Mm | 23 | 29 | 38 | 42 |
| Max. cut off length | Mm | 400 | 320 | 450 | 450 |
| Main motor | Kw | 90 | 90 | 132 | 200 |
| P.K.O stroke | Mm | 60 | 60 | 80 | 80 |
| K.O stroke | Mm | 330 | 290 | 380 | 400 |
| Die pitch | Mm | 138 | 174 | 200 | 220 |
| Cut off die diameter | Mm | 75 | 90 | 115 | 145 |
| Punch die dimension | Mm | 90*240 | 105*232 | 135*280 | 155*265 |
| Main die dimension | Mm | 125*370 | 160*294 | 185*420 | 195*420 |
| Nominal bolt size | Mm | 12-20 | 16-25.4 | 20-33 | 30-38 |
| Length under head | Mm | 100-300 | 35-250 | 80-350 | 80-350 |
| Appro. weight | Kgs | 83000 | 105000 | 150000 | 258000 |
| Appro. floor area | M | 13.1*4.06*2.82 | 15*5.85*3.4 | 16*5.9*3.5 | 17*6.1*3.6 |
