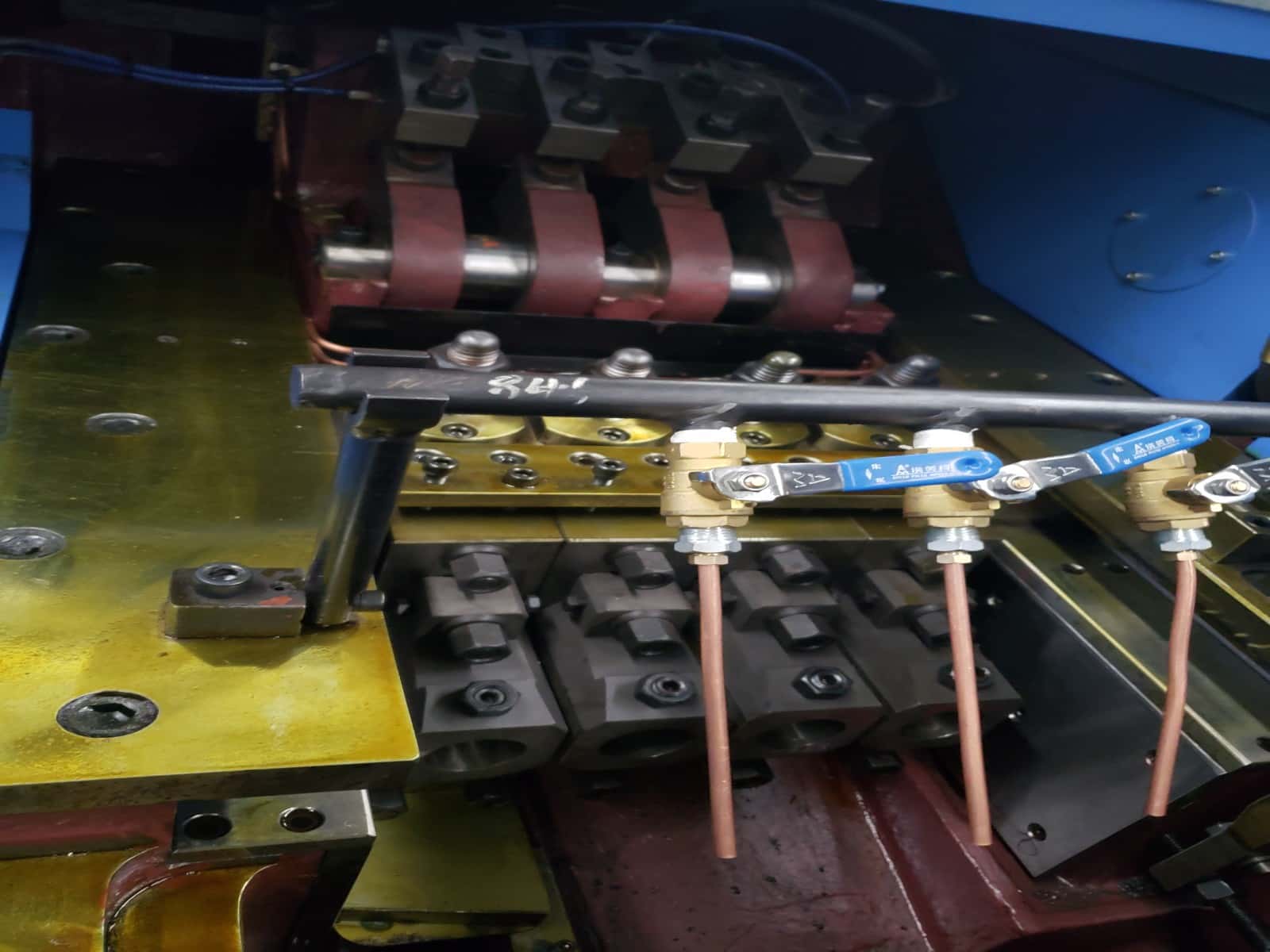

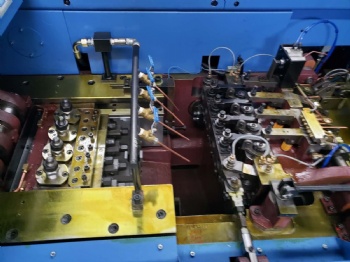

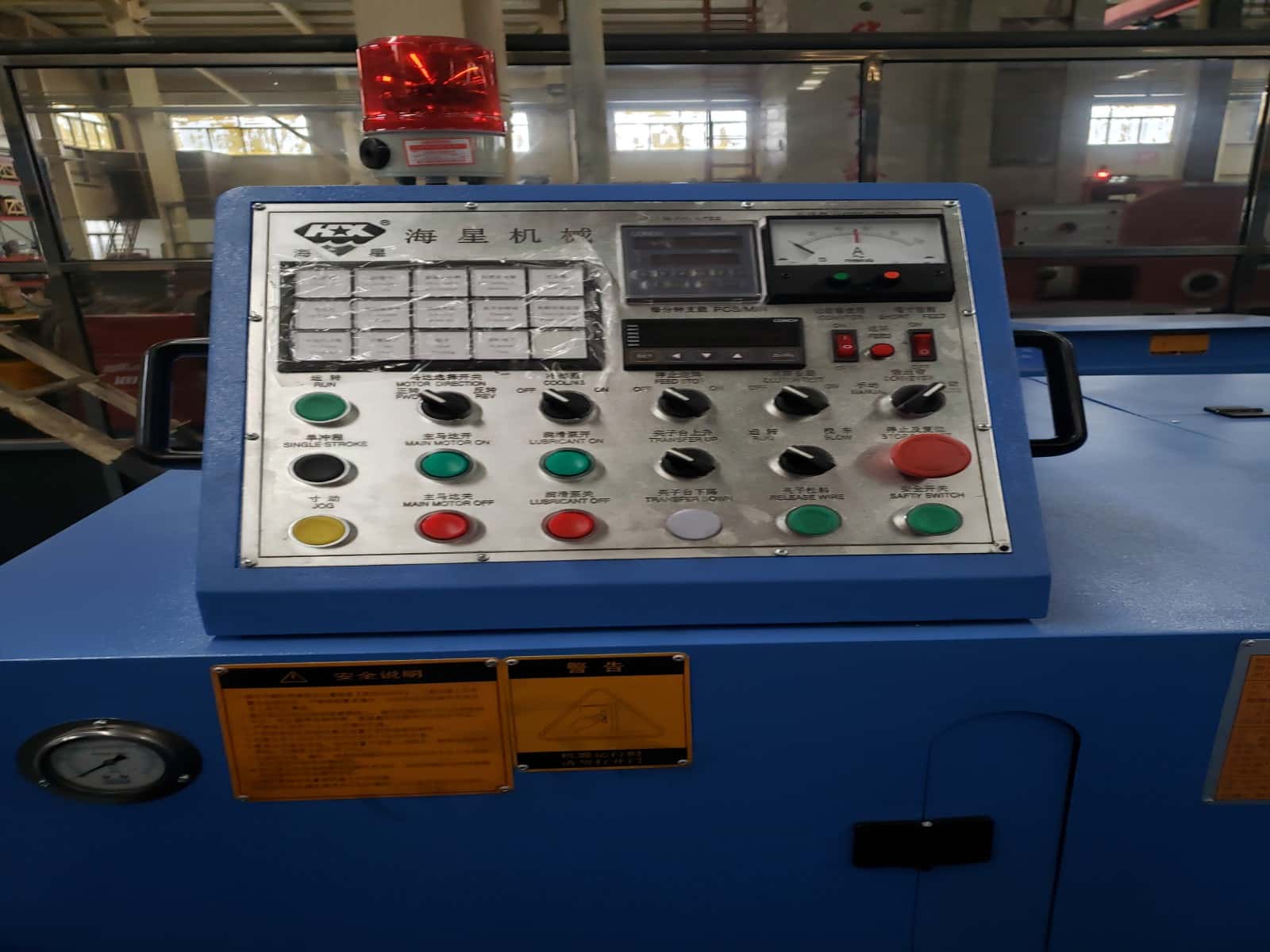

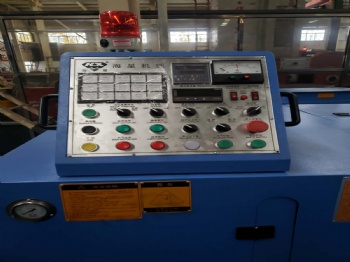

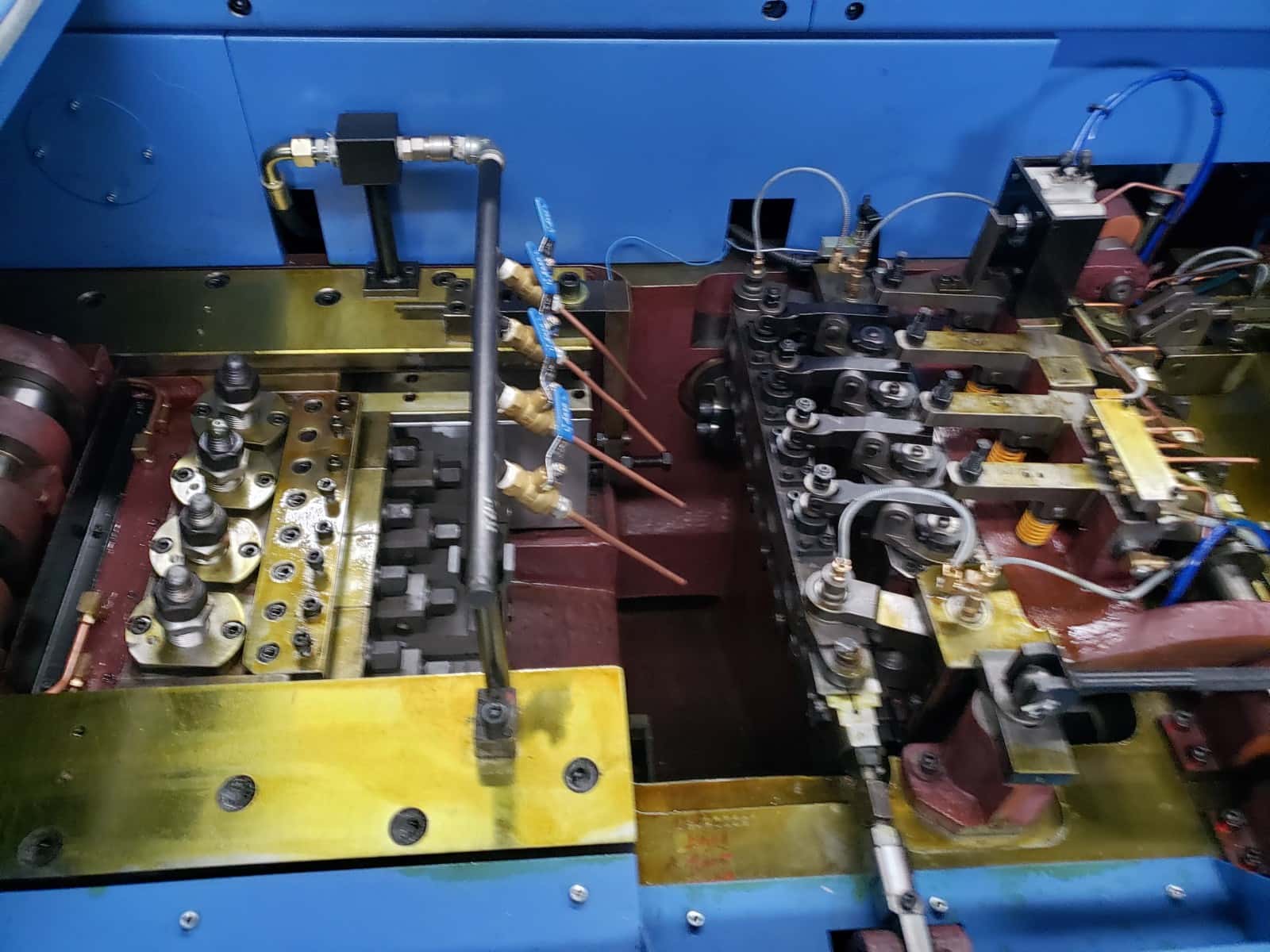

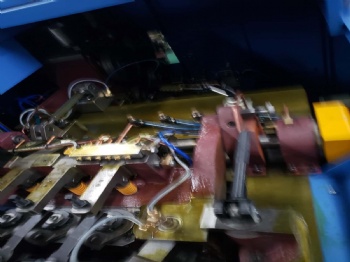

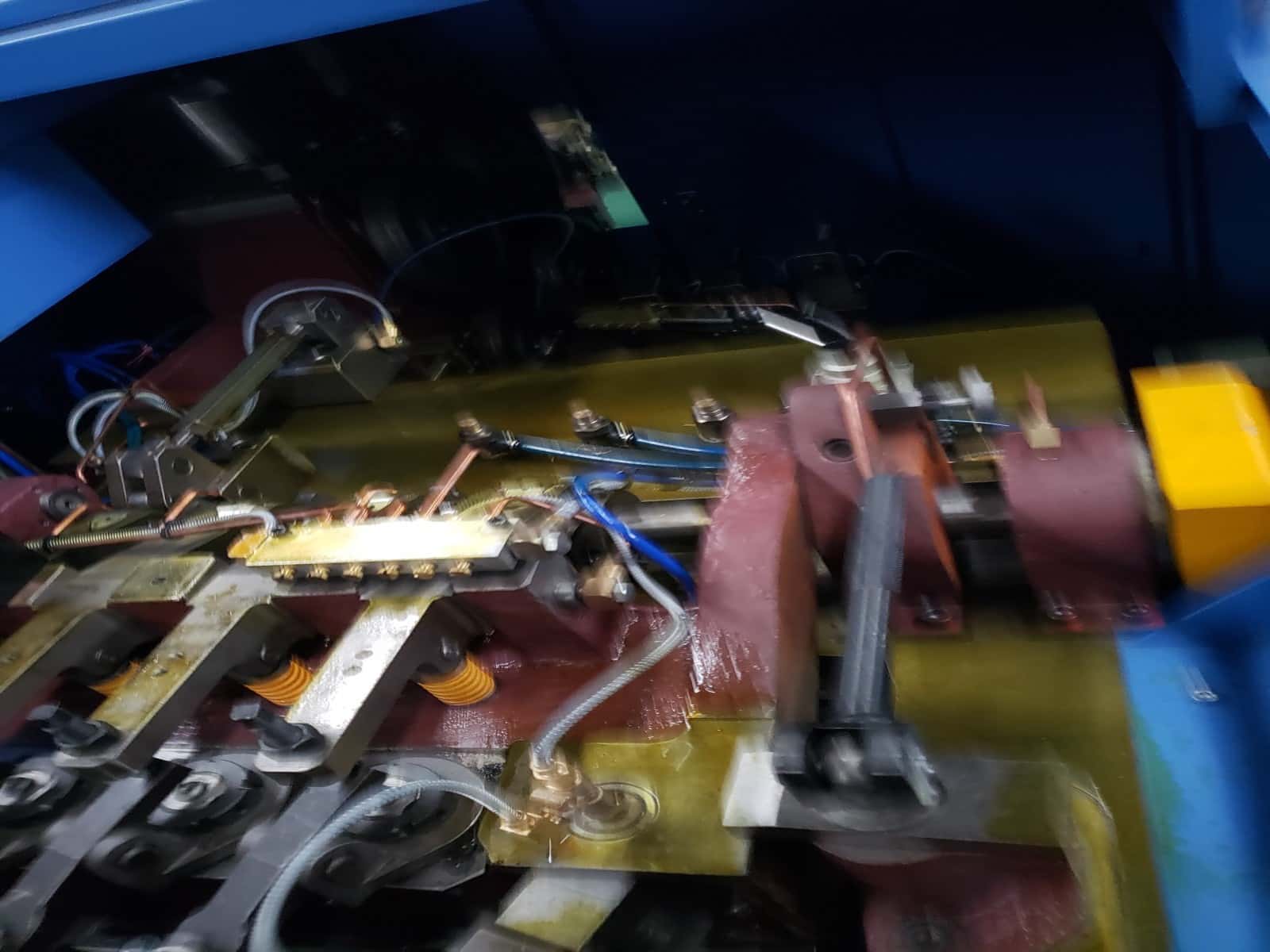

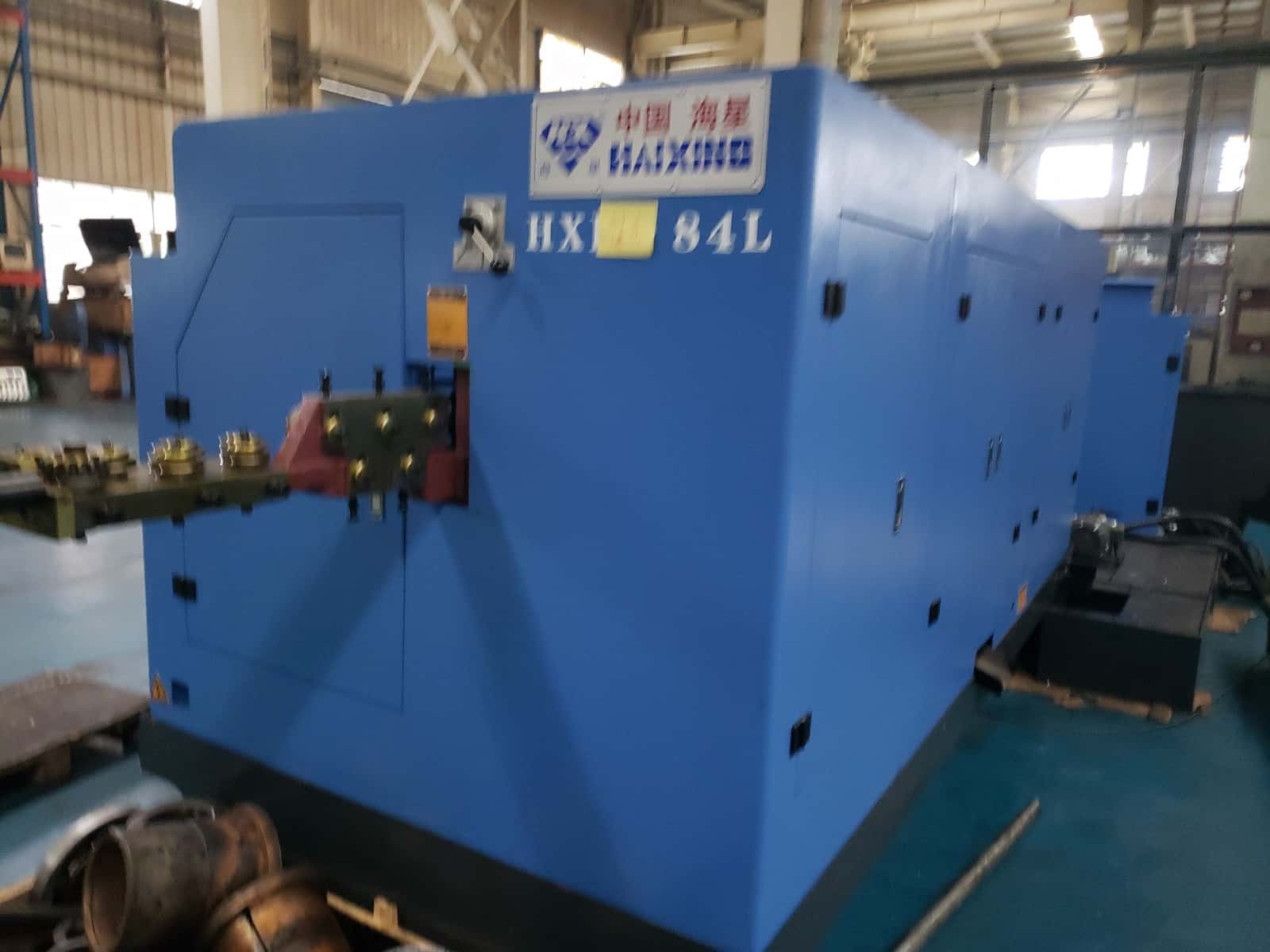

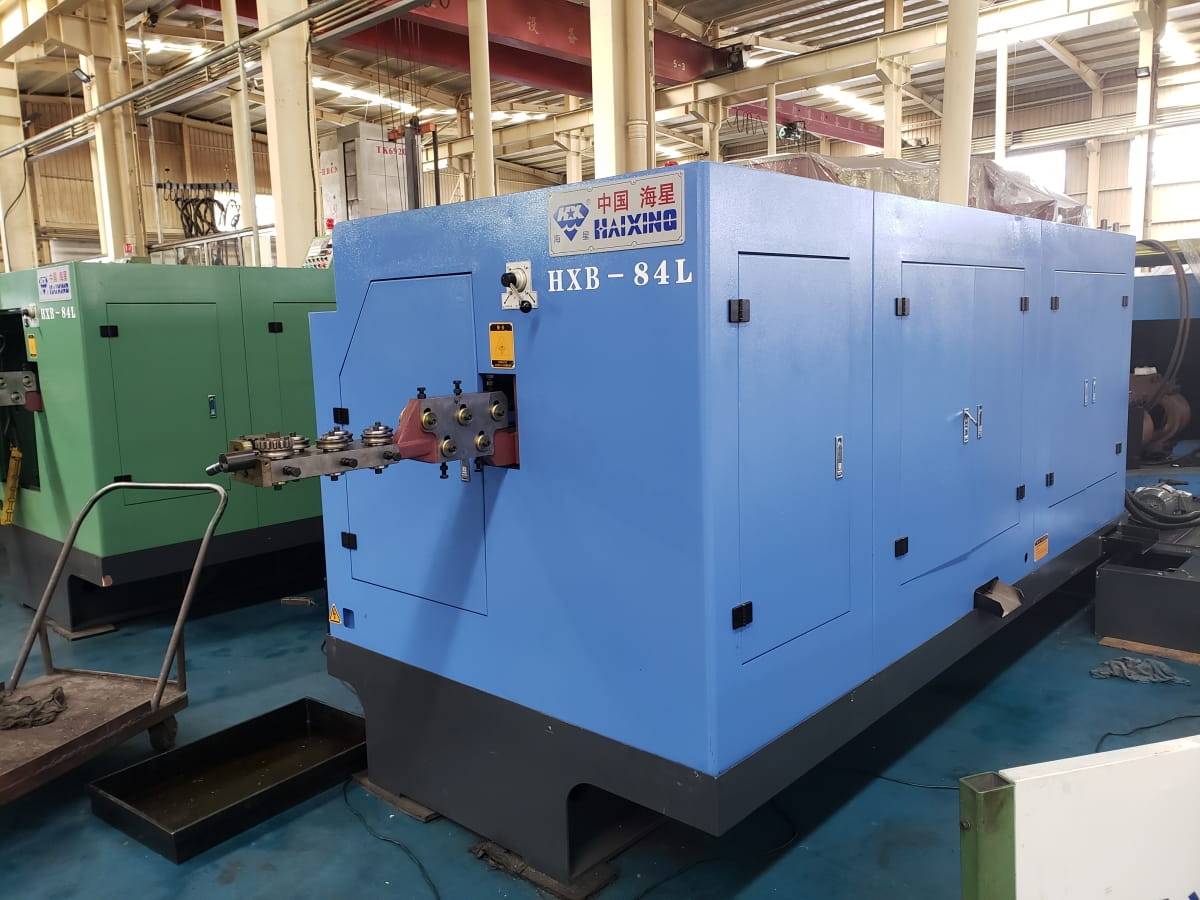

HXB-84L multi stations bolt maker
HXB-84L multi stations bolt maker
Specifications of HXB-84L multi stations bolt maker
| Specifications | Unit | HXB-84L |
| Forging stations | No. | 4 |
| Forging force | Kgs | 70000 |
| Max. output | Pcs/Min. | 120 |
| Max. cut off diameter | Mm | 10 |
| Max. cut off length | Mm | 175 |
| Main motor | Kw | 22 |
| P.K.O stroke | Mm | 30 |
| K.O stroke | Mm | 160 |
| Die pitch | Mm | 80 |
| Cut off die diameter | Mm | 30 |
| Punch die dimension | Mm | 45*115 |
| Main die dimension | Mm | 70*185 |
| Nominal bolt size | Mm | 5-8 |
| Length under head | Mm | 30-150 |
| Appro. weight | Kgs | 15500 |
| Appro. floor area | M | 9*3.2*1.9 |
