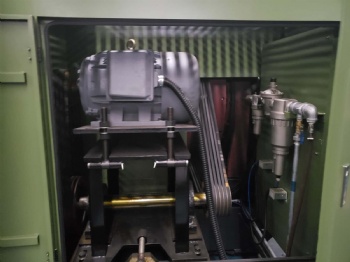

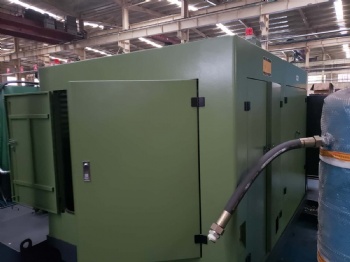

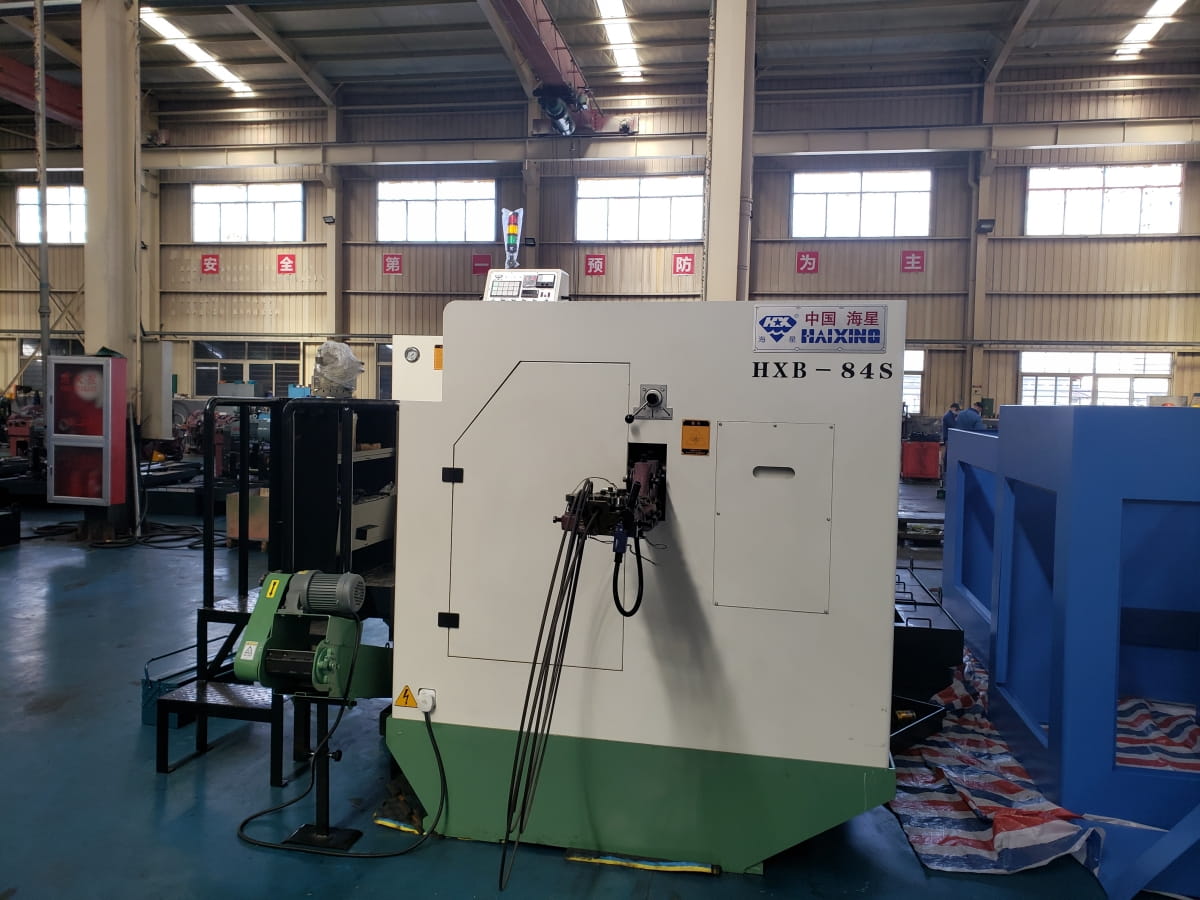

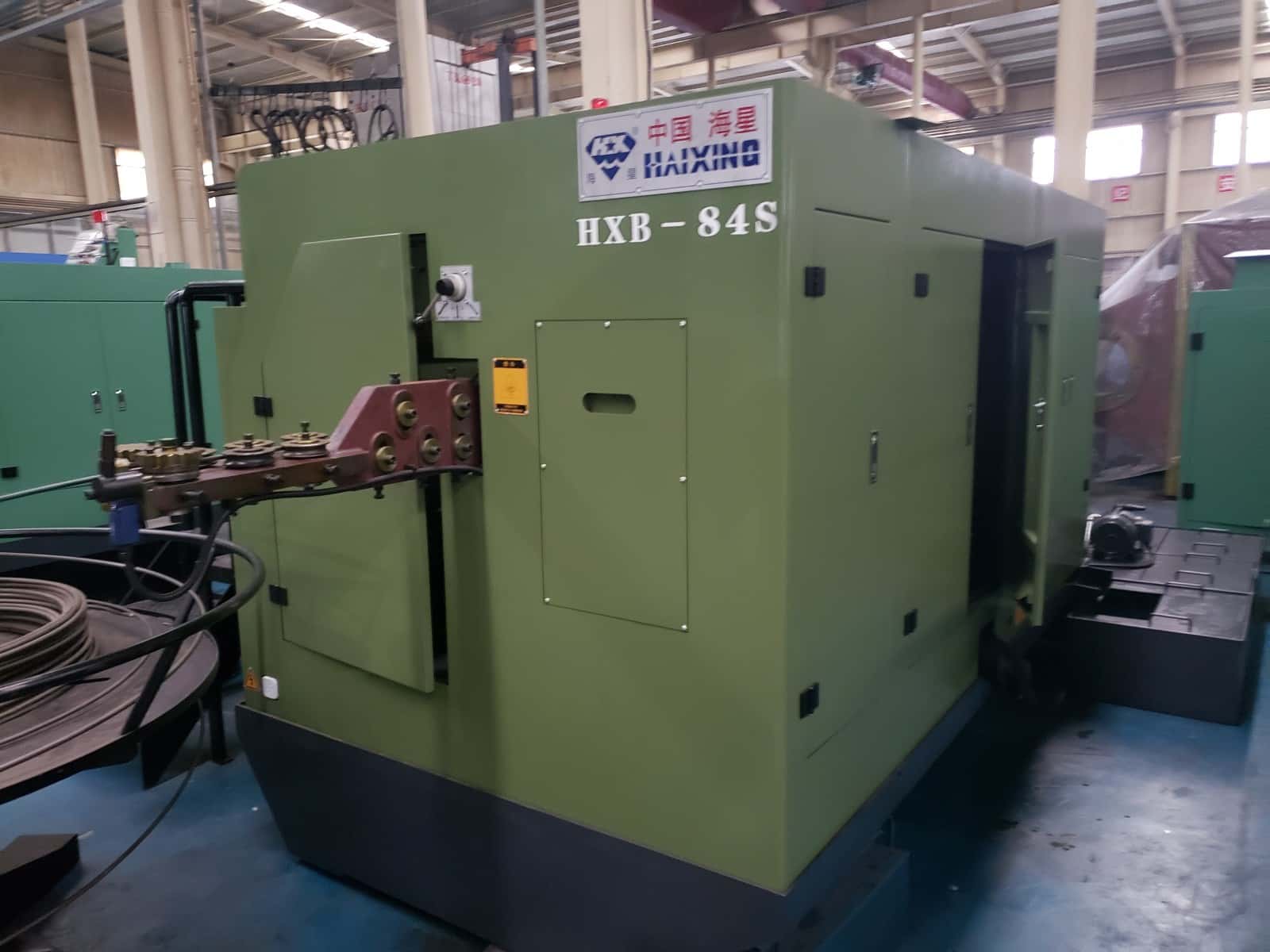

HXB-84S multi stations bolt maker
HXB-84S multi stations bolt maker
Specifications of HXB-84S multi stations bolt maker
| Specifications | Unit | HXB-84S |
| Forging stations | No. | 4 |
| Forging force | Kgs | 60000 |
| Max. output | Pcs/Min. | 180 |
| Max. cut off diameter | Mm | 10 |
| Max. cut off length | Mm | 100 |
| Main motor | Kw | 22 |
| P.K.O stroke | Mm | 15 |
| K.O stroke | Mm | 85 |
| Die pitch | Mm | 70 |
| Cut off die diameter | Mm | 30 |
| Punch die dimension | Mm | 45*115 |
| Main die dimension | Mm | 60*108 |
| Nominal bolt size | Mm | 5-8 |
| Length under head | Mm | 15-75 |
| Appro. weight | Kgs | 13800 |
| Appro. floor area | M | 6.97*2.88*1.85 |
