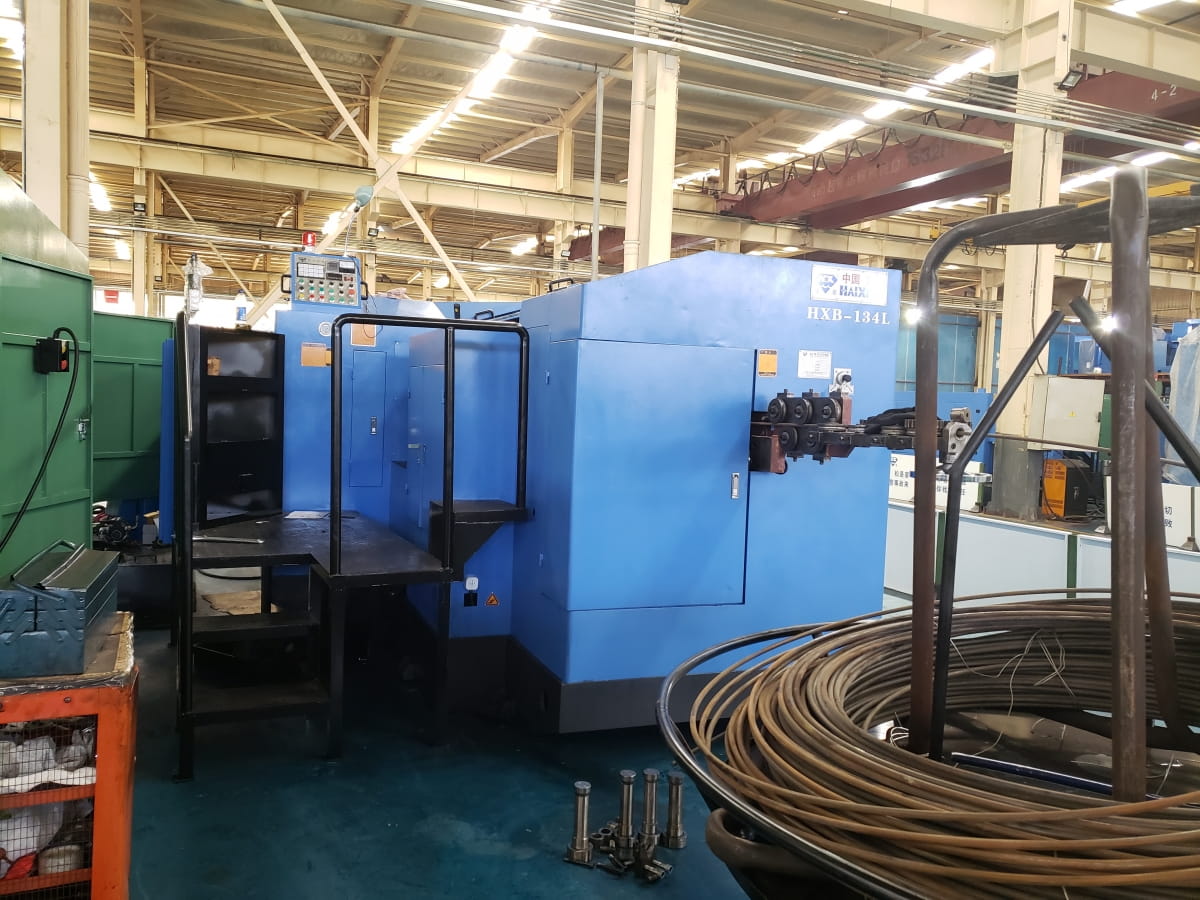

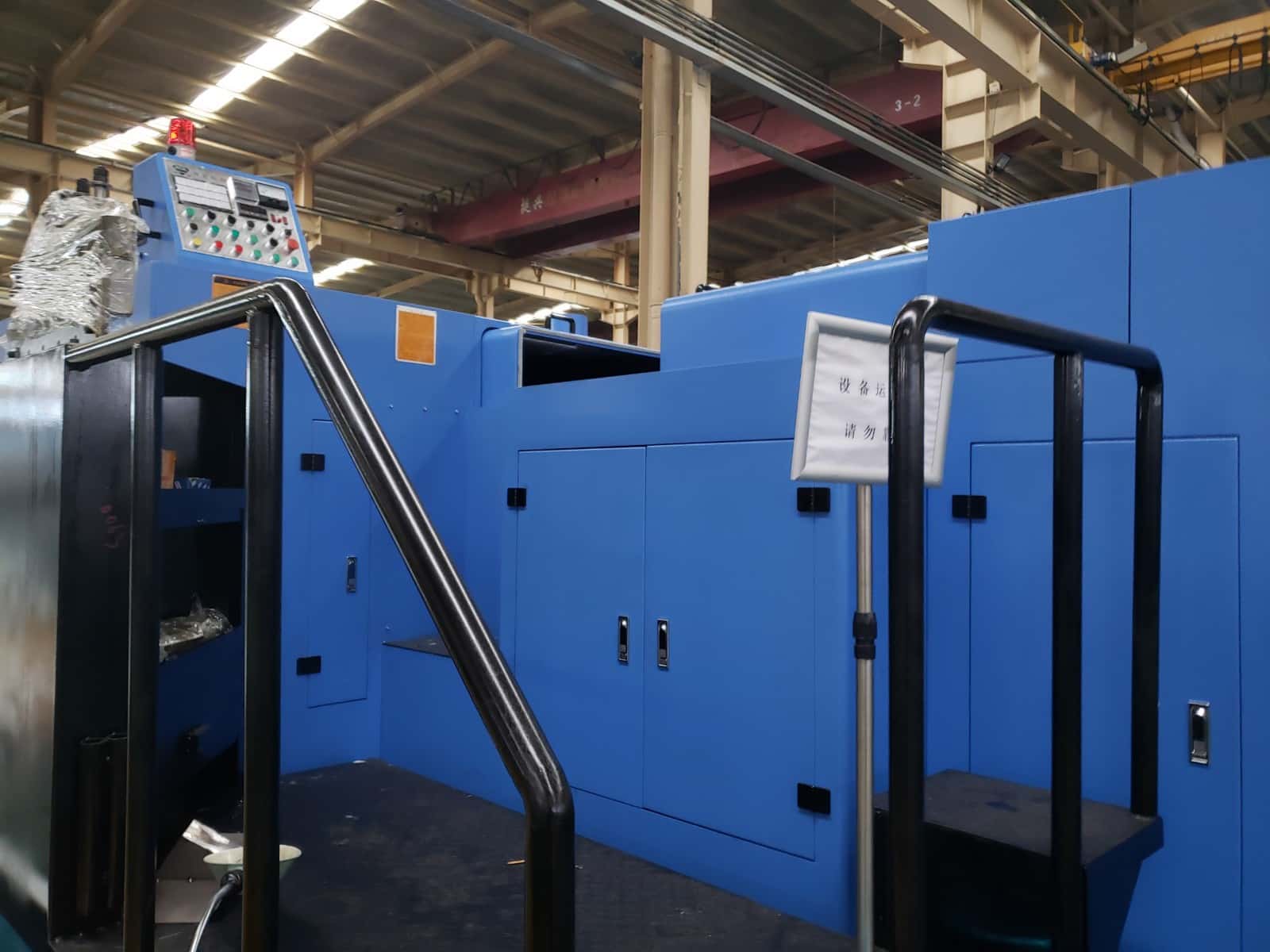

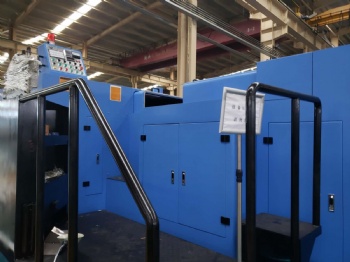

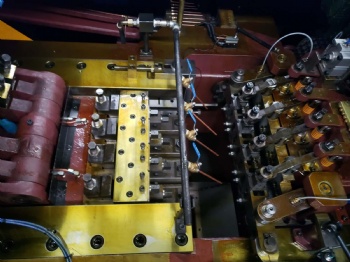

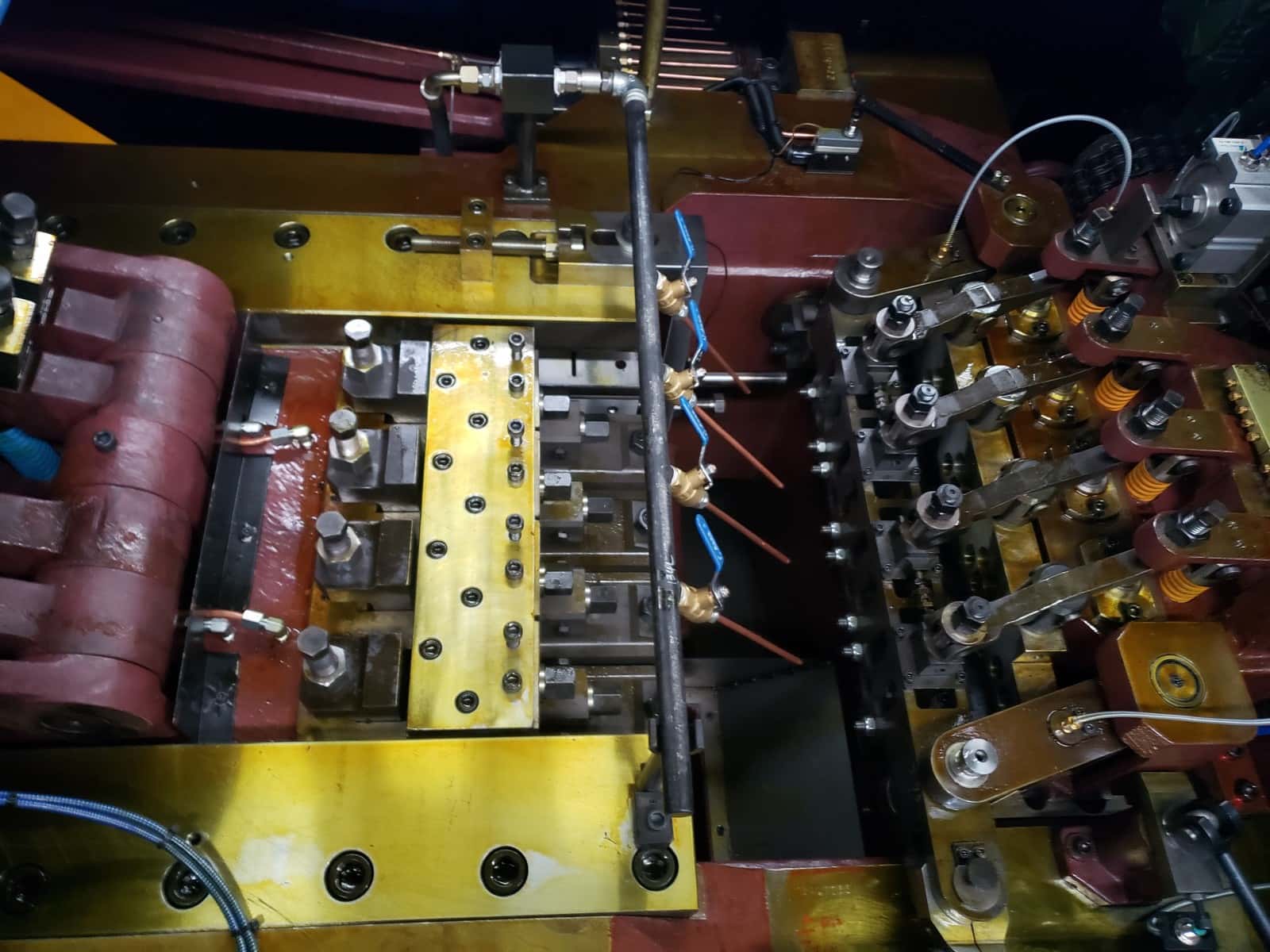

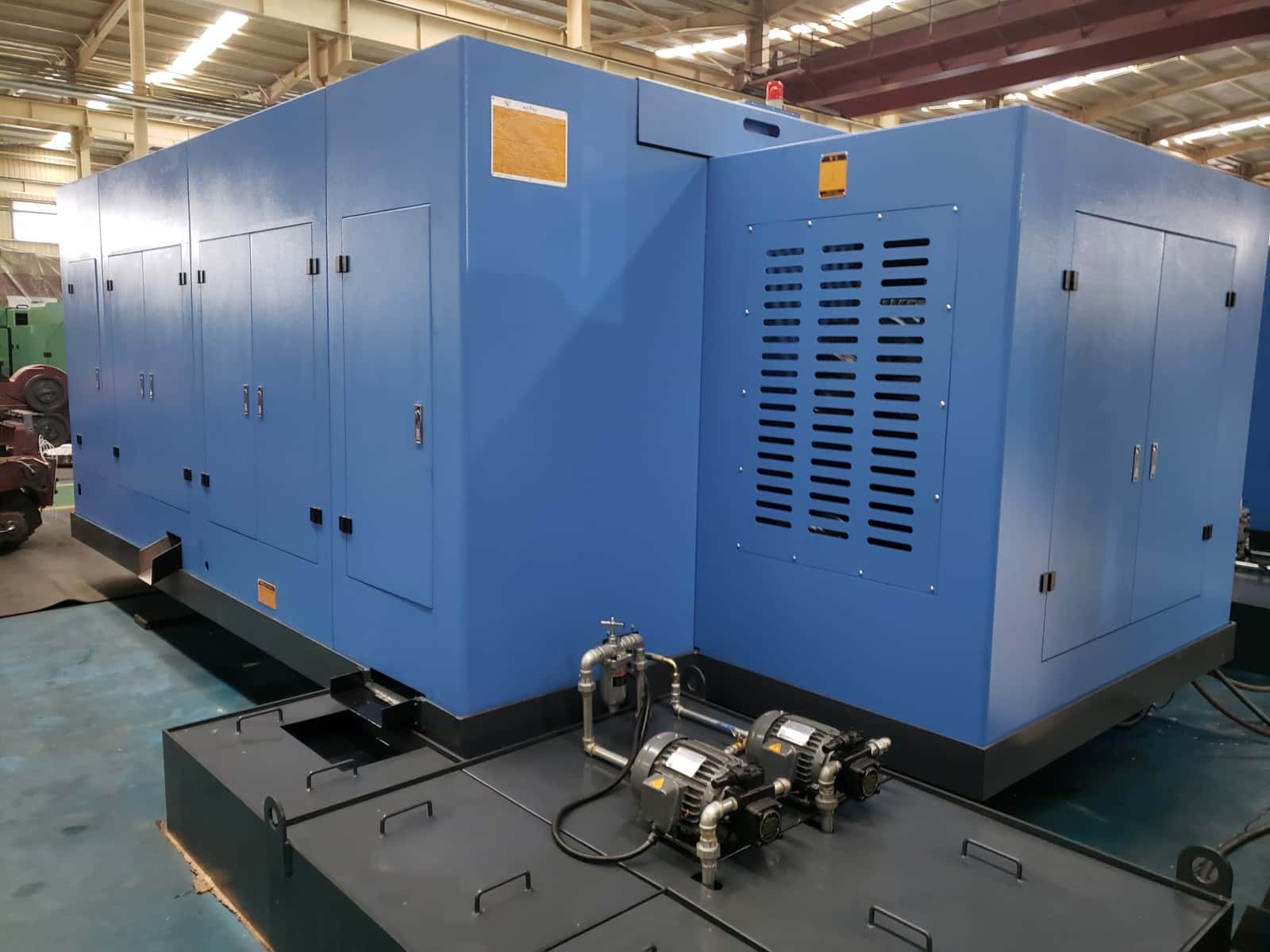

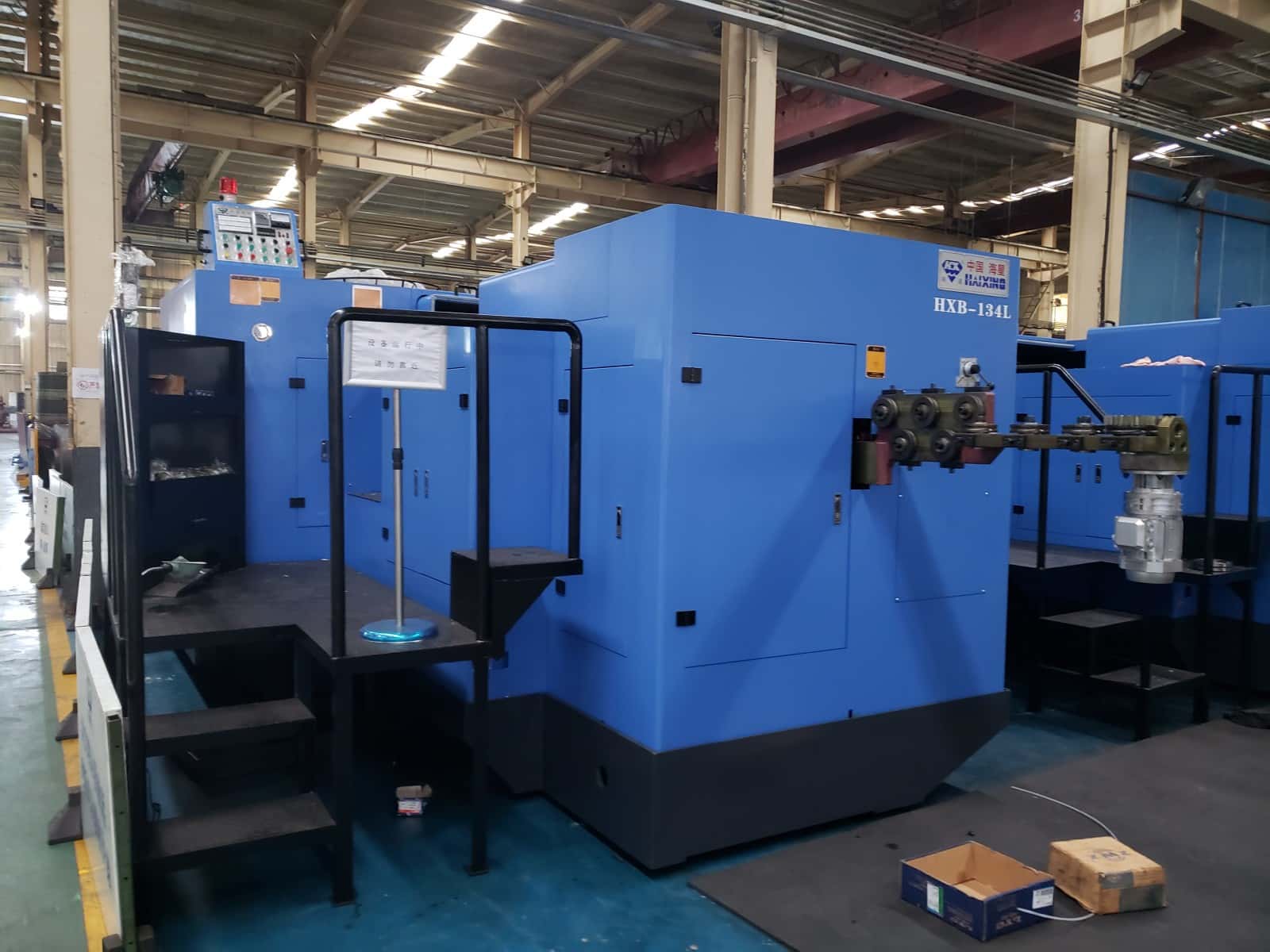

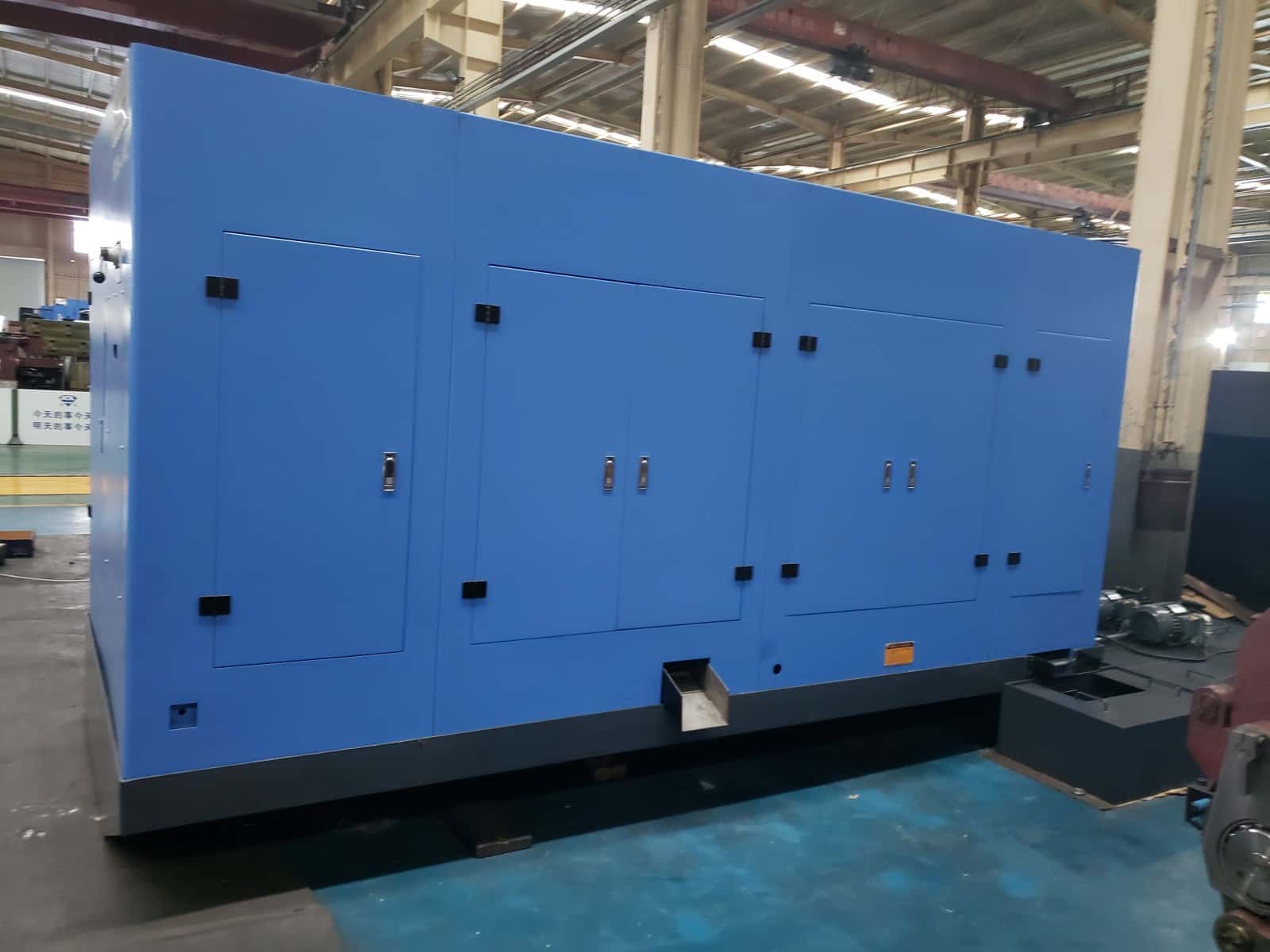

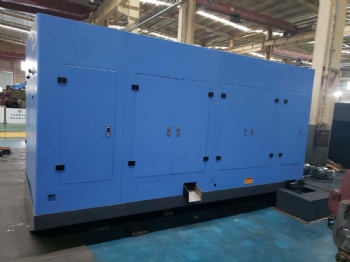

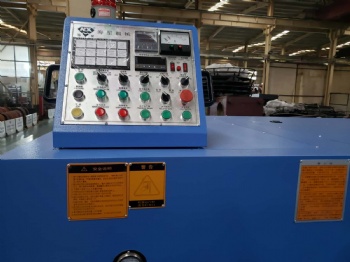

HXB-134L multi stations bolt maker
HXB-134L multi stations bolt maker
Specifications of HXB-134L multi stations bolt maker
| Specifications | Unit | HXB-134L |
| Forging stations | No. | 4 |
| Forging force | Kgs | 120000 |
| Max. output | Pcs/Min. | 120 |
| Max. cut off diameter | Mm | 15 |
| Max. cut off length | Mm | 190 |
| Main motor | Kw | 37 |
| P.K.O stroke | Mm | 45 |
| K.O stroke | Mm | 160 |
| Die pitch | Mm | 110 |
| Cut off die diameter | Mm | 55 |
| Punch die dimension | Mm | 60*150 |
| Main die dimension | Mm | 85*190 |
| Nominal bolt size | Mm | 8-12.7 |
| Length under head | Mm | 30-155 |
| Appro. weight | Kgs | 24500 |
| Appro. floor area | M | 9.2*3.1*2.43 |
