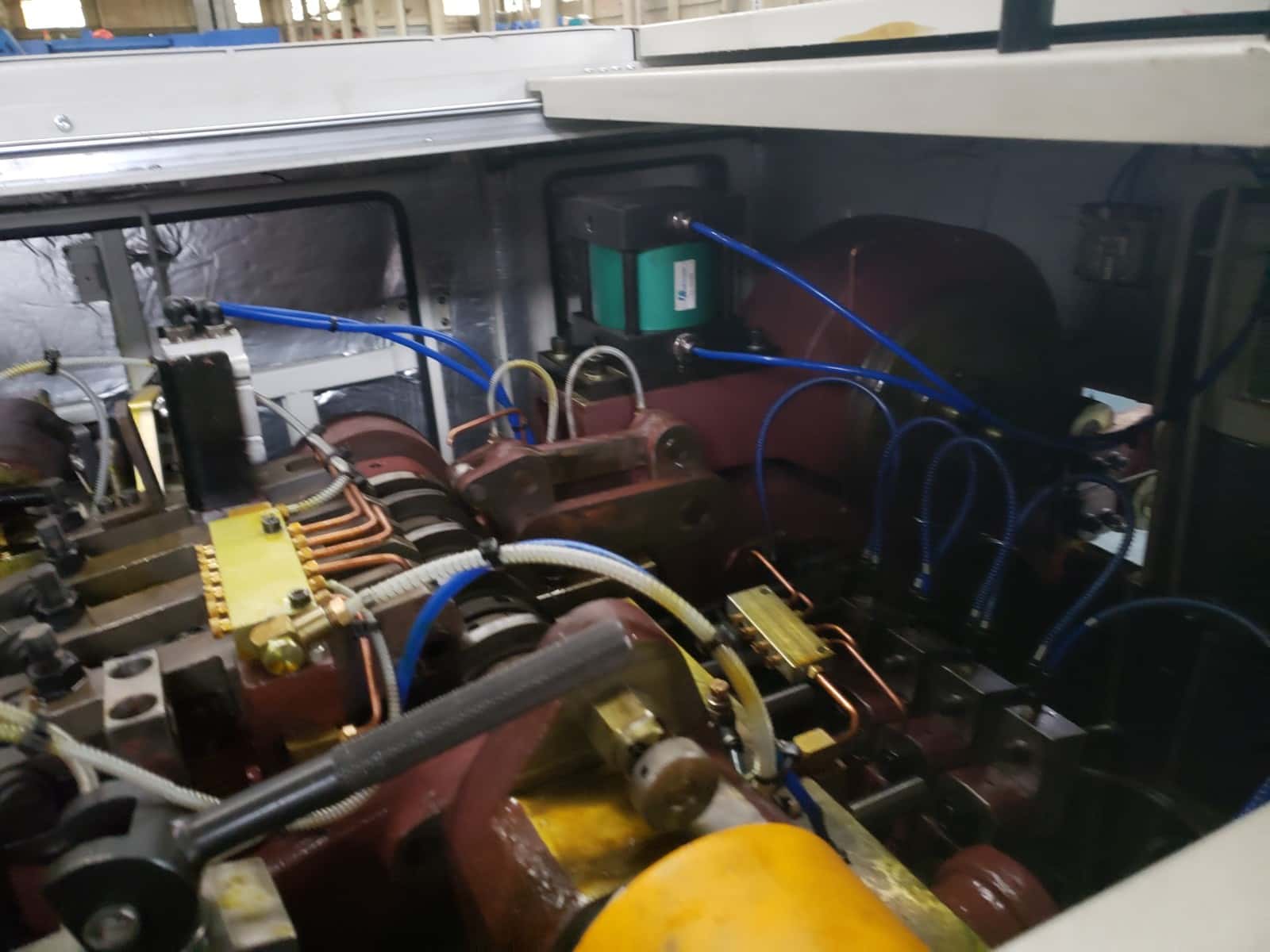

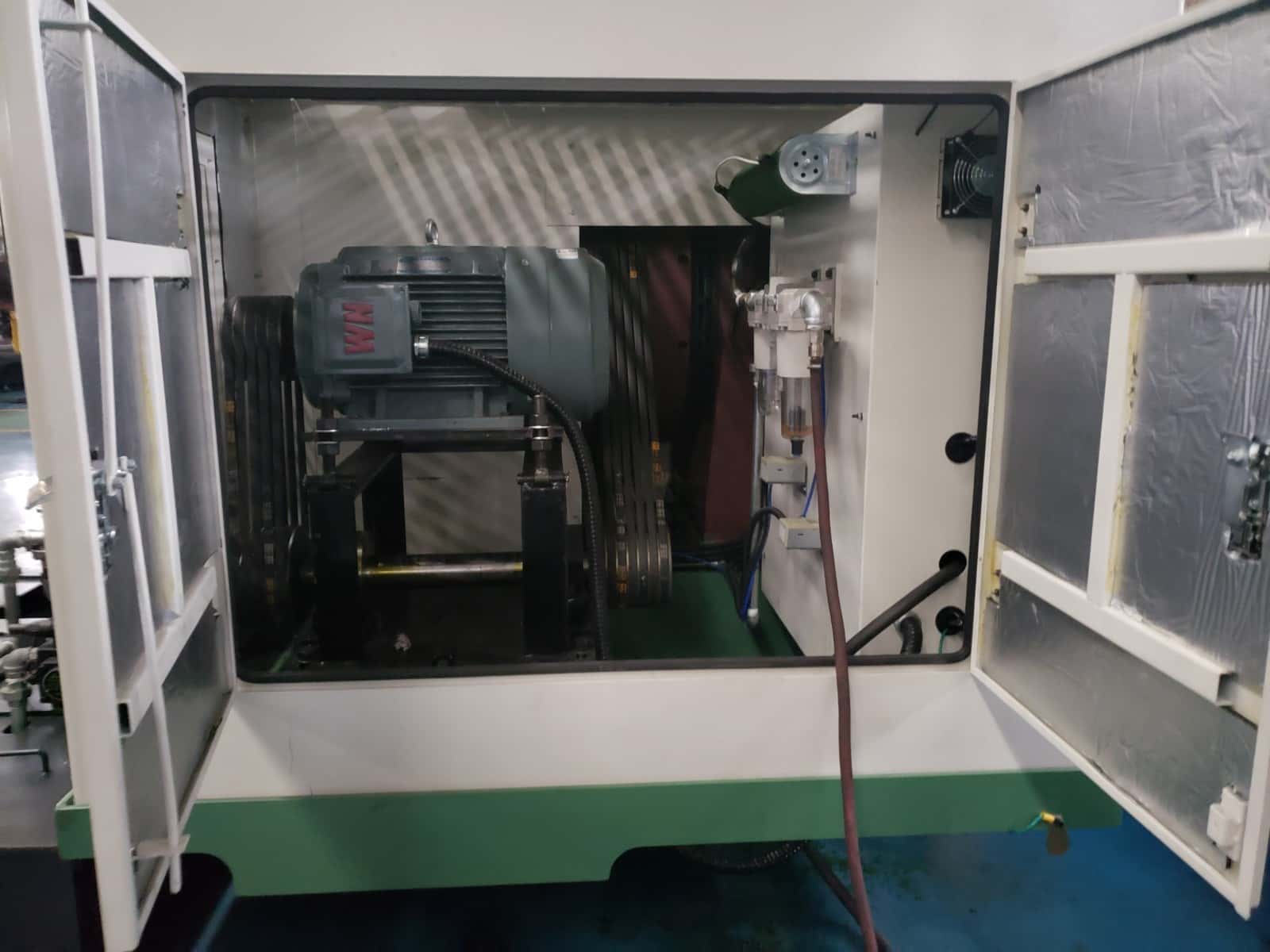

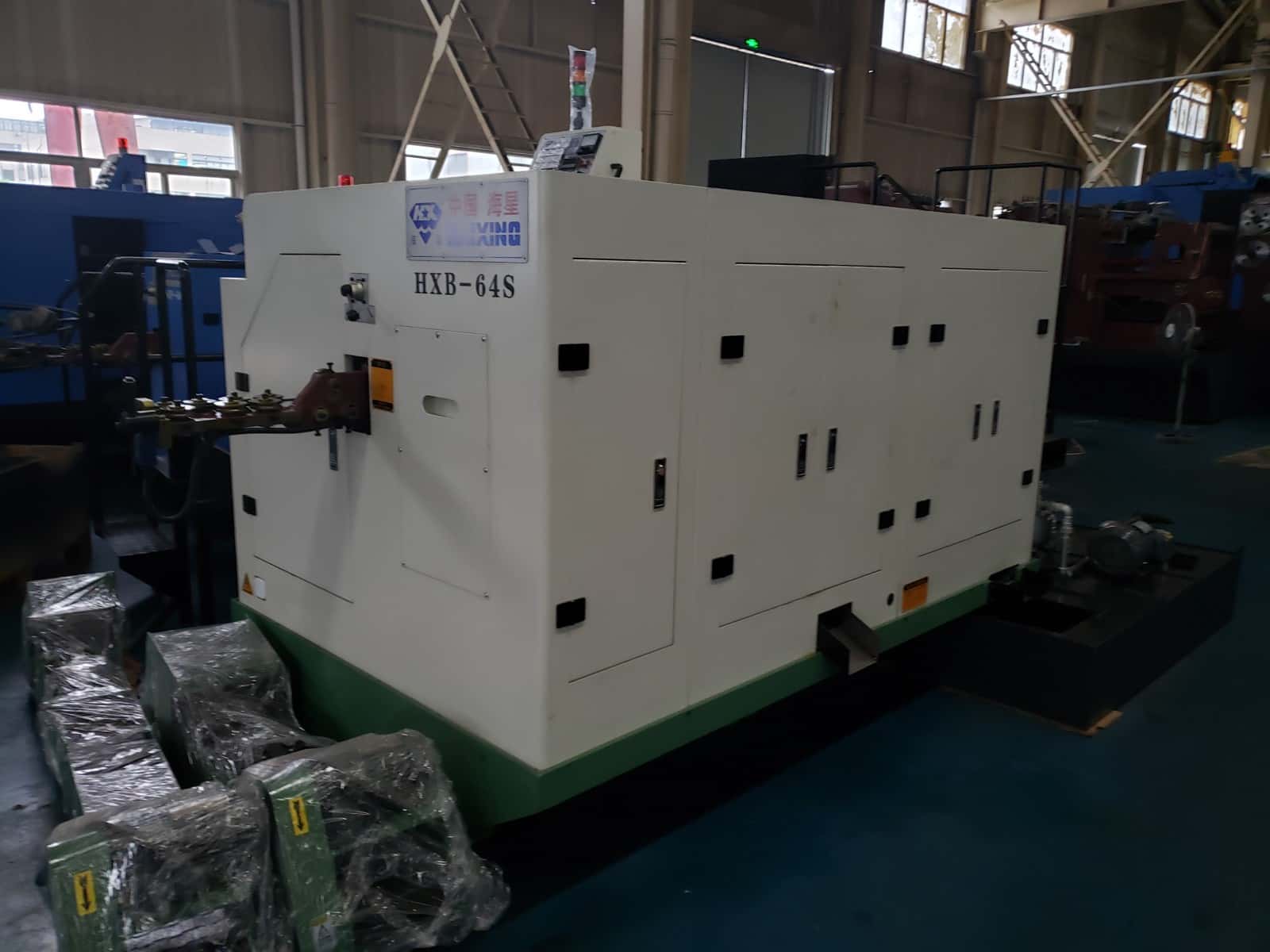

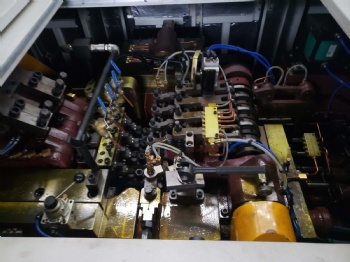

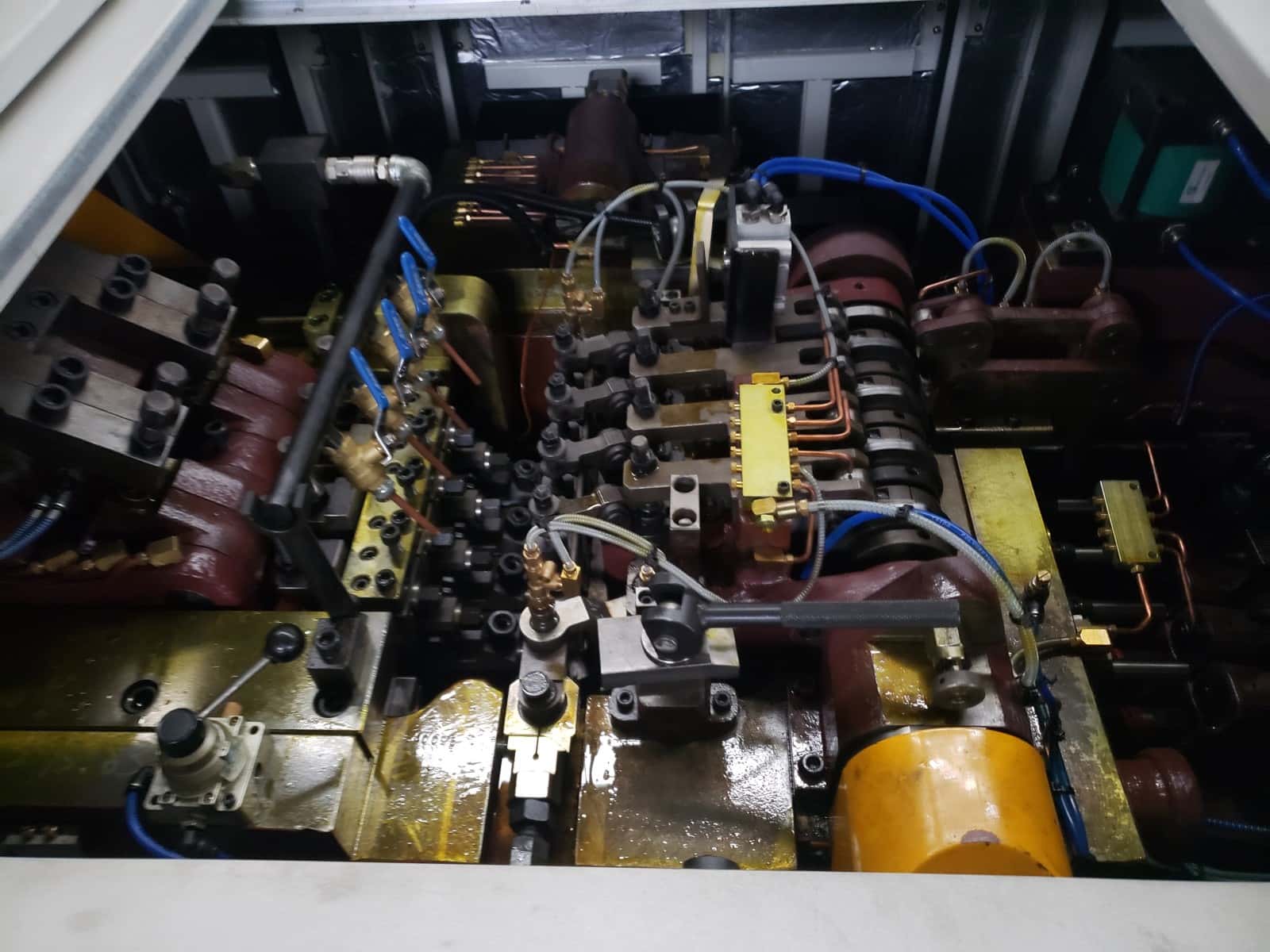

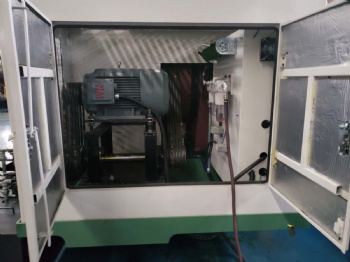

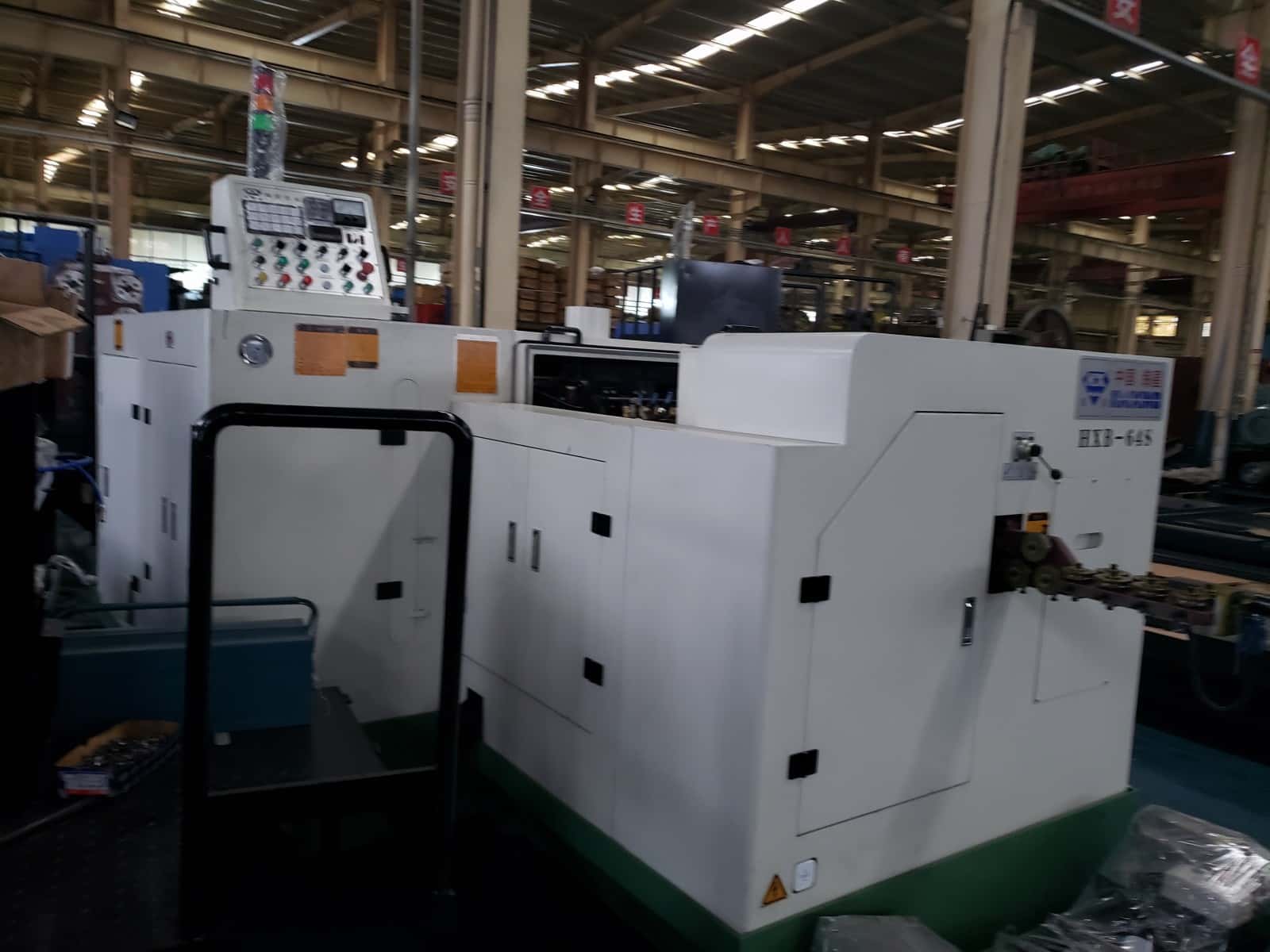

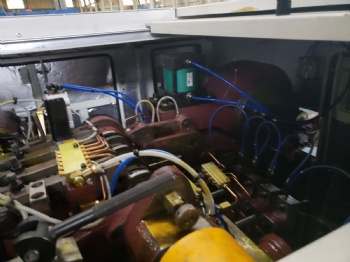

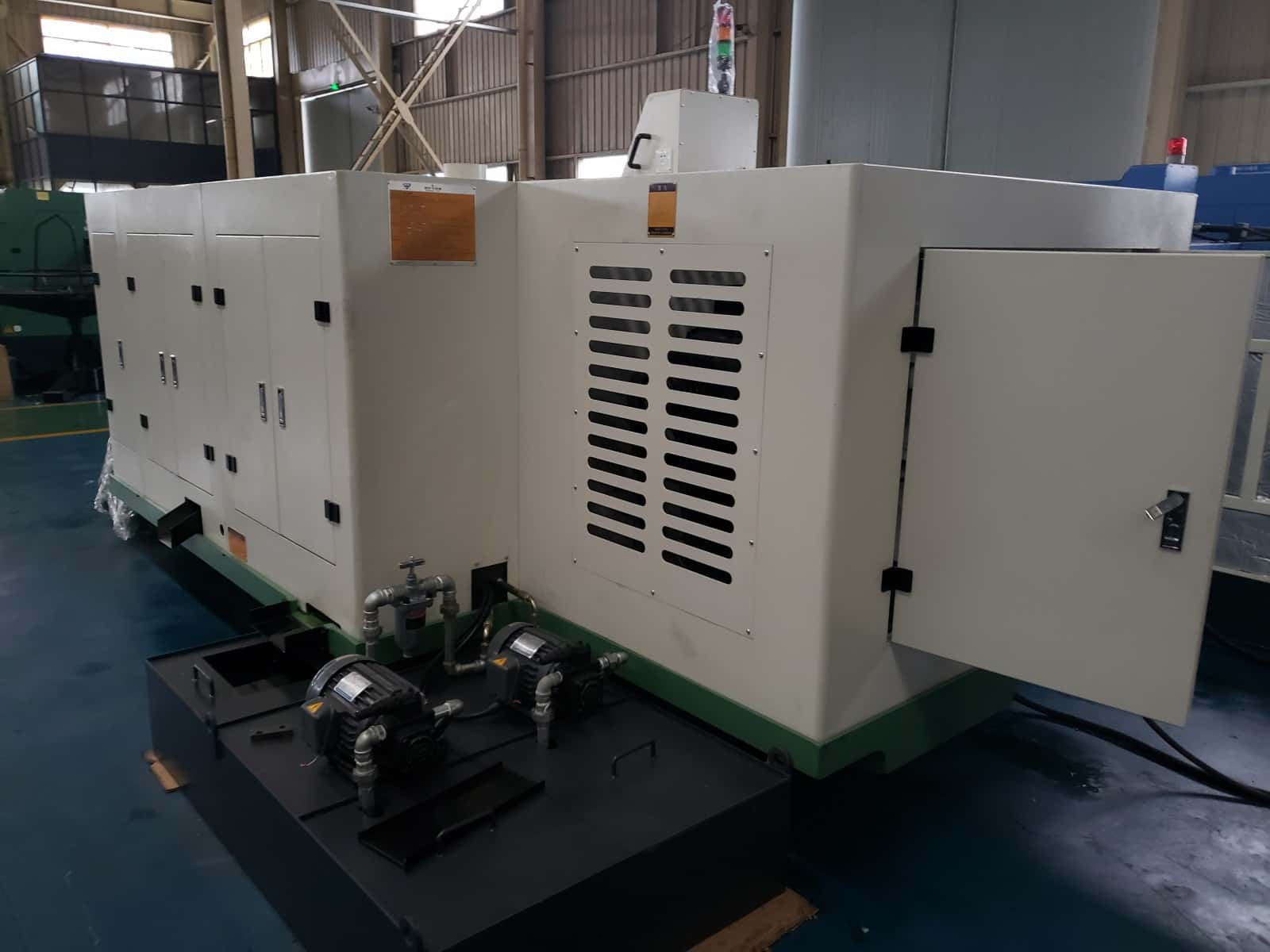

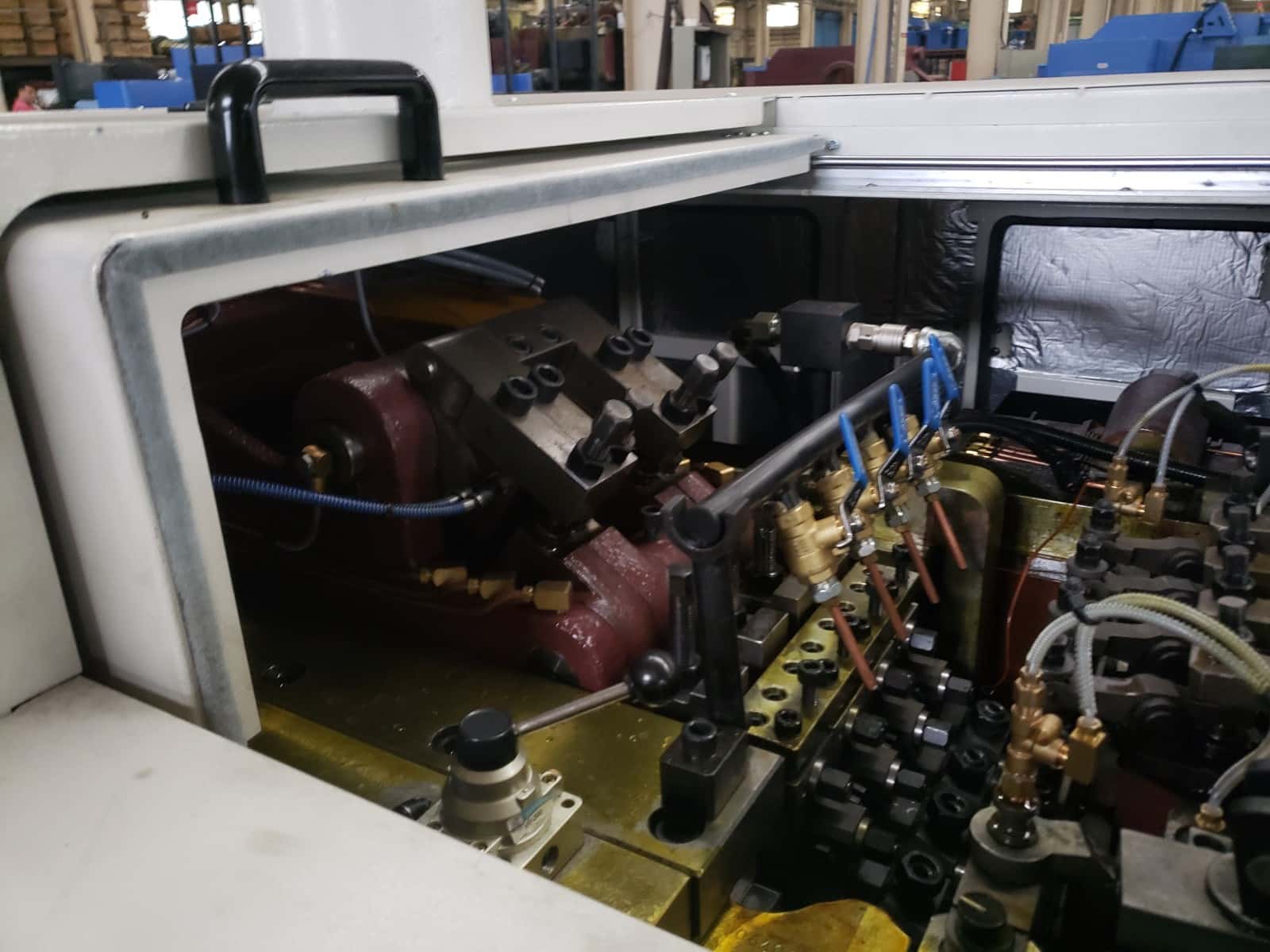

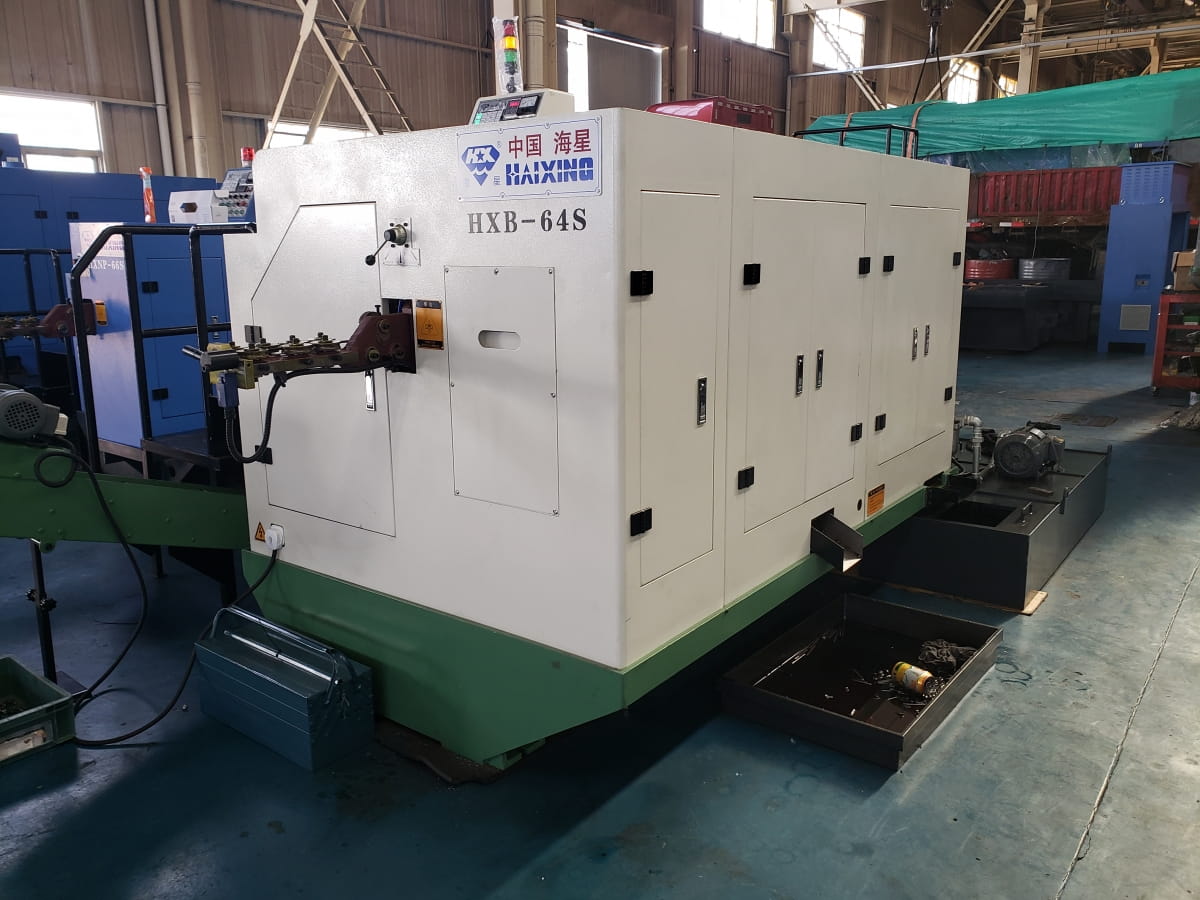

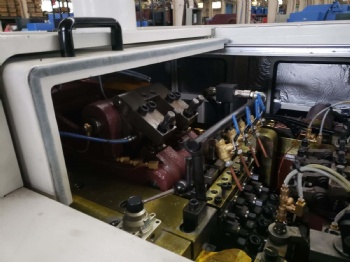

HXB-64S multi stations bolt maker
HXB-64S multi stations bolt maker
Specifications of HXB-64S multi stations bolt maker
| Specifications | Unit | HXB-64S |
| Forging stations | No. | 4 |
| Forging force | Kgs | 40000 |
| Max. output | Pcs/Min. | 260 |
| Max. cut off diameter | Mm | 8 |
| Max. cut off length | Mm | 95 |
| Main motor | Kw | 15 |
| P.K.O stroke | Mm | 12 |
| K.O stroke | Mm | 80 |
| Die pitch | Mm | 60 |
| Cut off die diameter | Mm | 30 |
| Punch die dimension | Mm | 40*90 |
| Main die dimension | Mm | 50*108 |
| Nominal bolt size | Mm | 3-6 |
| Length under head | Mm | 10-75 |
| Appro. weight | Kgs | 8100 |
| Appro. floor area | M | 6.13*2.43*1.83 |
