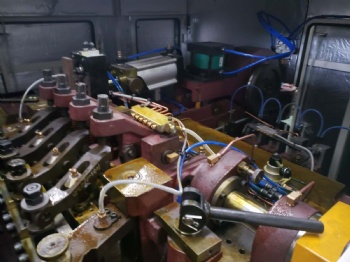

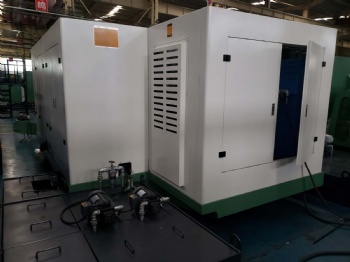

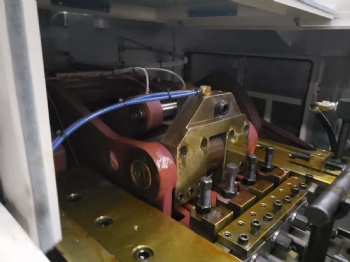

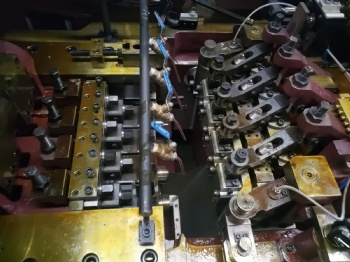

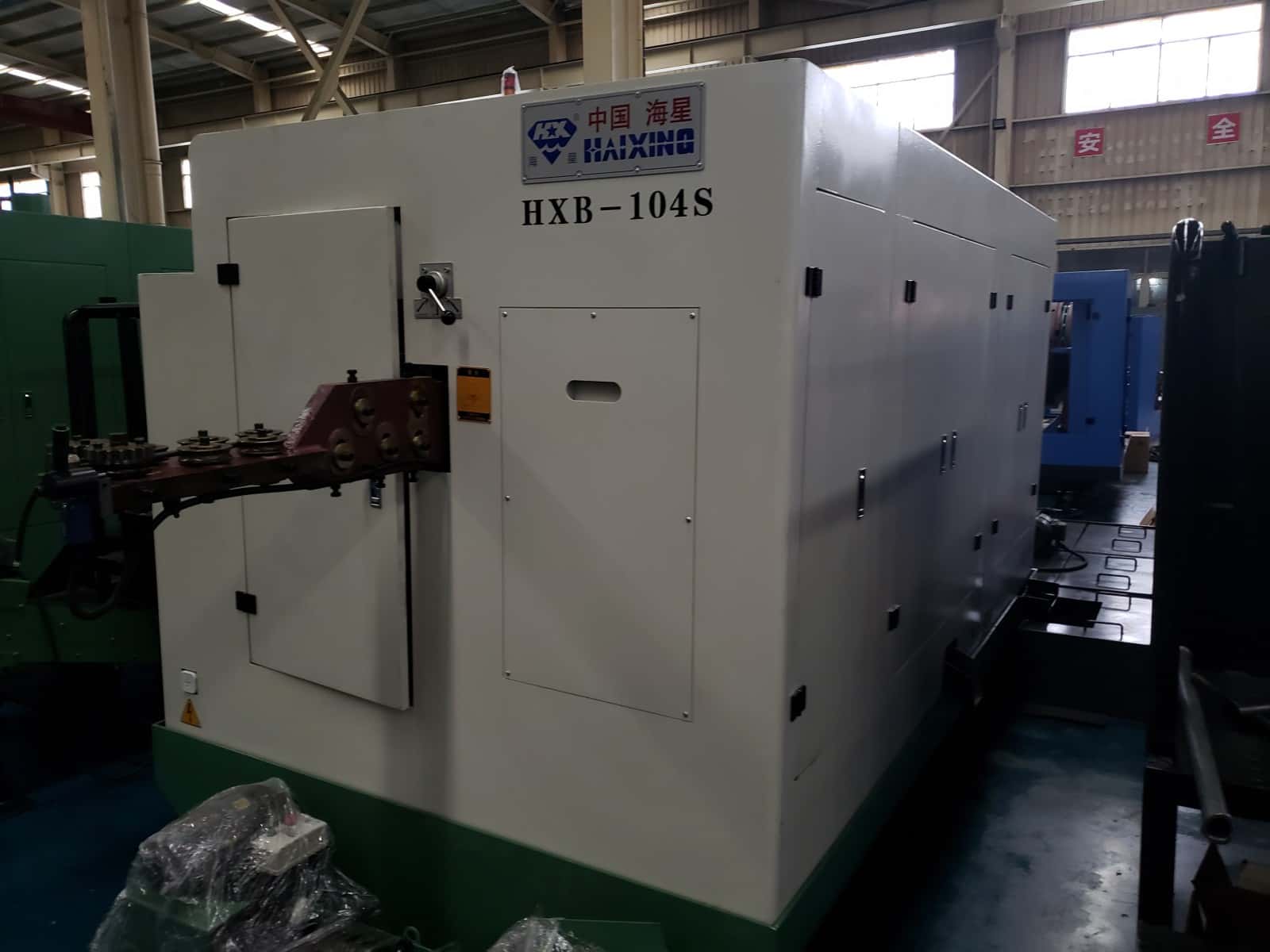

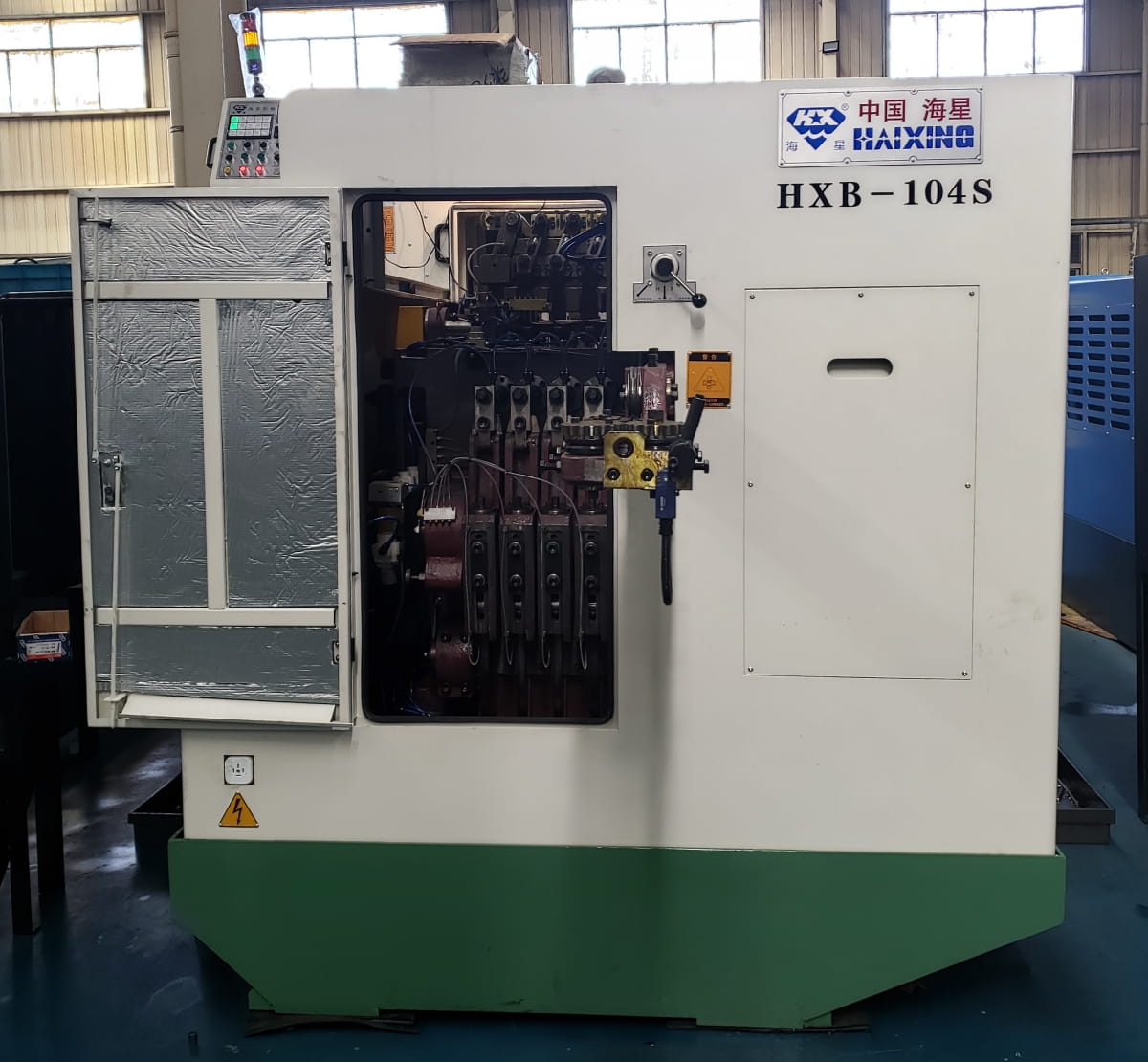

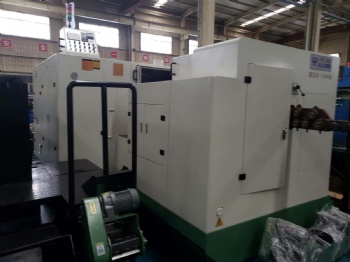

HXB-104S multi stations bolt maker
HXB-104S multi stations bolt maker
Specifications of HXB-104S multi stations bolt maker
| Specifications | Unit | HXB-104S |
| Forging stations | No. | 4 |
| Forging force | Kgs | 80000 |
| Max. output | Pcs/Min. | 150 |
| Max. cut off diameter | Mm | 12 |
| Max. cut off length | Mm | 135 |
| Main motor | Kw | 30 |
| P.K.O stroke | Mm | 20 |
| K.O stroke | Mm | 110 |
| Die pitch | Mm | 90 |
| Cut off die diameter | Mm | 45 |
| Punch die dimension | Mm | 53*115 |
| Main die dimension | Mm | 75*135 |
| Nominal bolt size | Mm | 6-10 |
| Length under head | Mm | 20-110 |
| Appro. weight | Kgs | 18000 |
| Appro. floor area | M | 6.9*2.96*2.29 |
