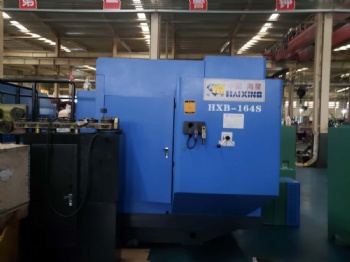

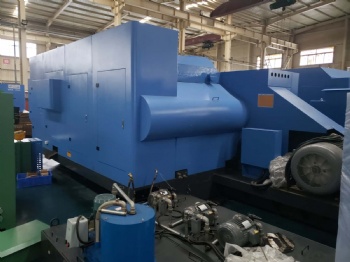

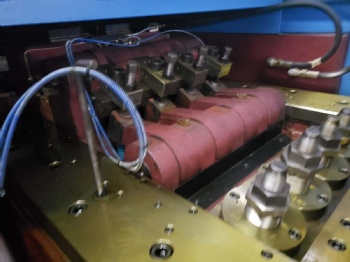

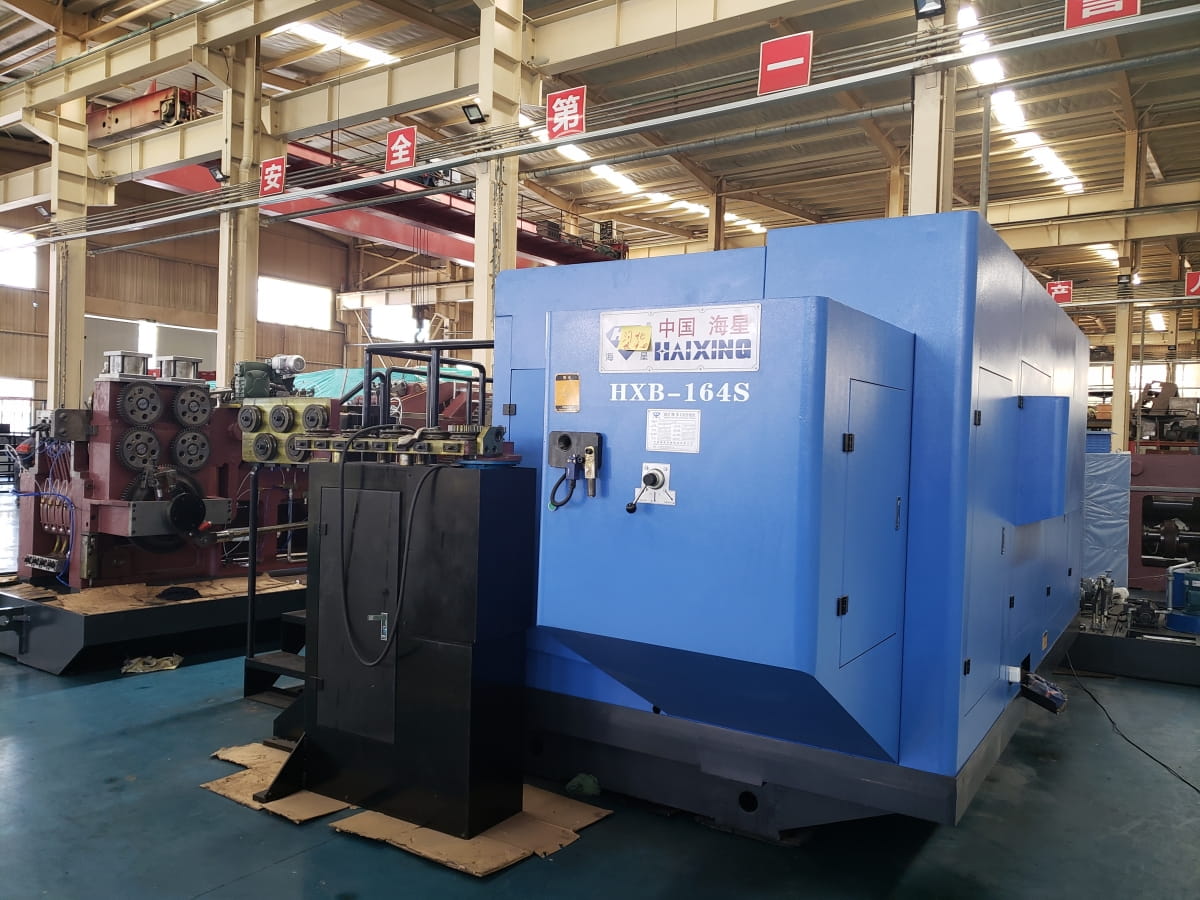

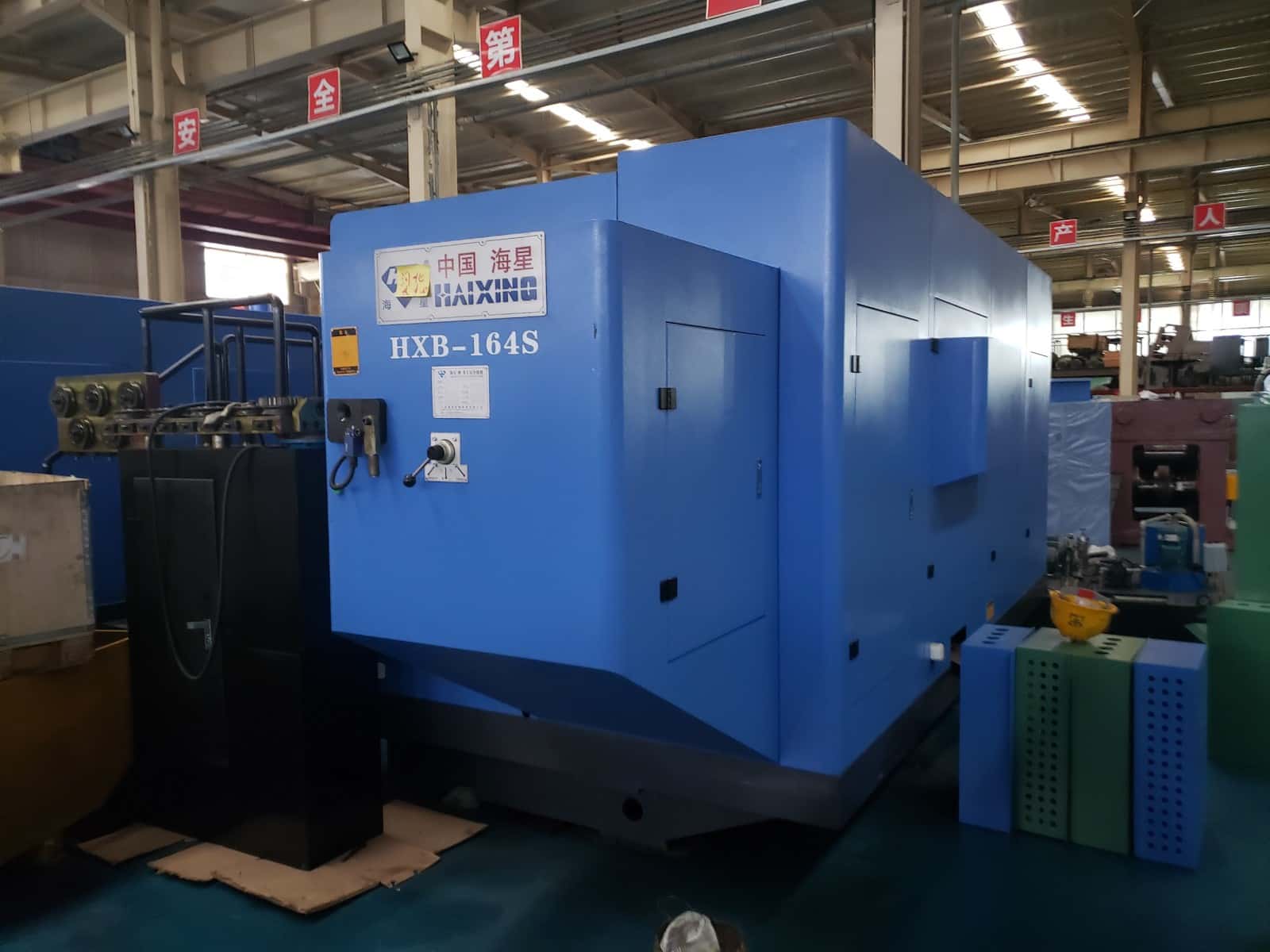

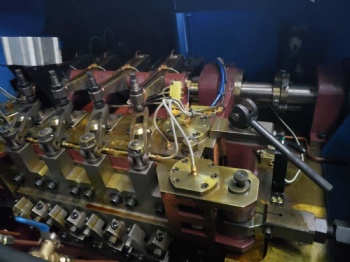

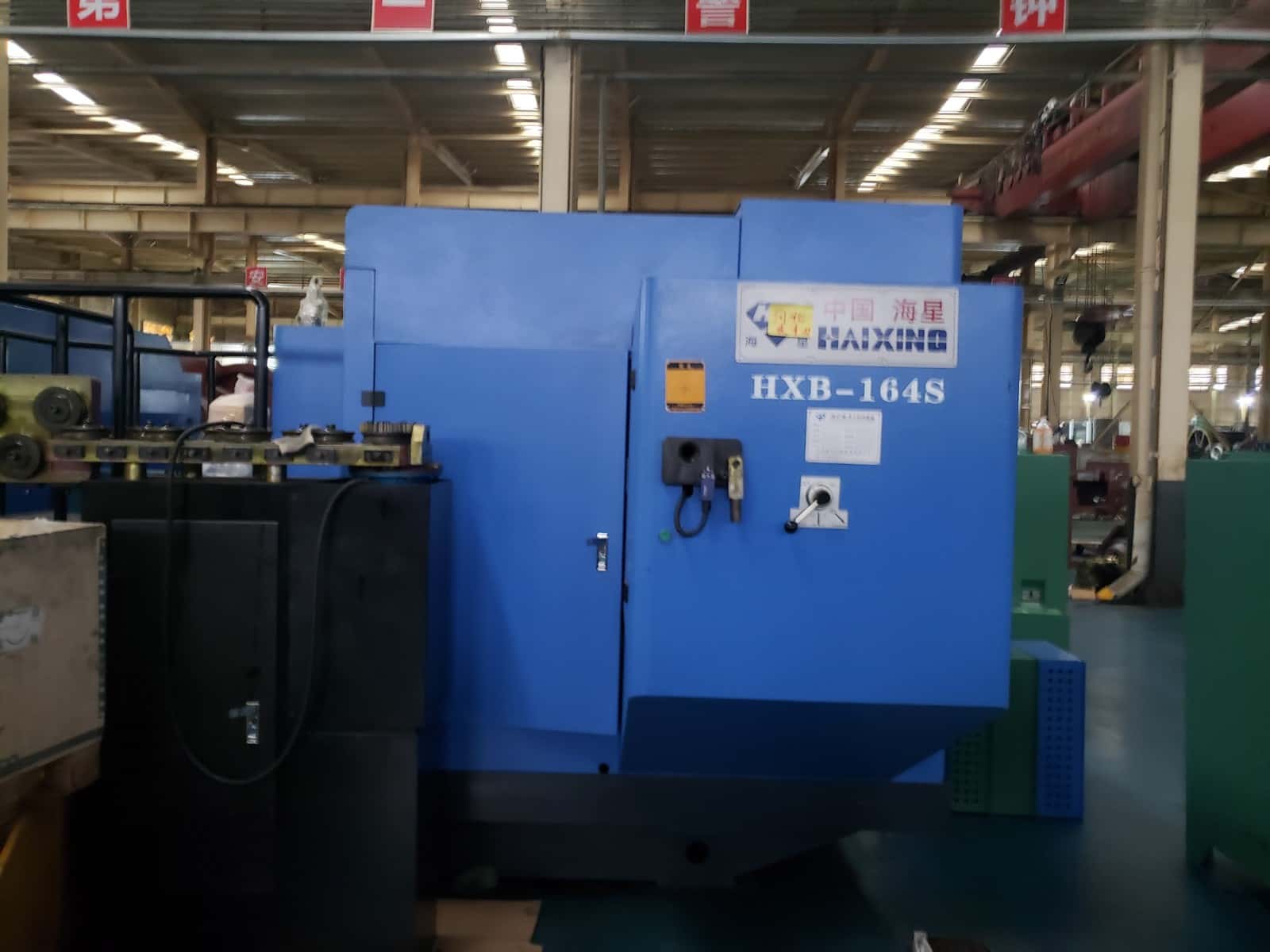

HXB-164S multi stations bolt maker
HXB-164S multi stations bolt maker
Specifications of HXB-164S multi stations bolt maker
| Specifications | Unit | HXB-164S |
| Forging stations | No. | 4 |
| Forging force | Kgs | 210000 |
| Max. output | Pcs/Min. | 100 |
| Max. cut off diameter | Mm | 18 |
| Max. cut off length | Mm | 205 |
| Main motor | Kw | 45 |
| P.K.O stroke | Mm | 30 |
| K.O stroke | Mm | 170 |
| Die pitch | Mm | 126 |
| Cut off die diameter | Mm | 60 |
| Punch die dimension | Mm | 75*160 |
| Main die dimension | Mm | 100*205 |
| Nominal bolt size | Mm | 10-16 |
| Length under head | Mm | 20-160 |
| Appro. weight | Kgs | 43000 |
| Appro. floor area | M | 14*3.69*2.63 |
