Specifications of three stations bolt former

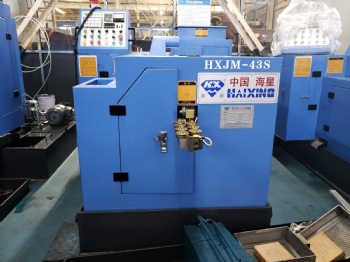

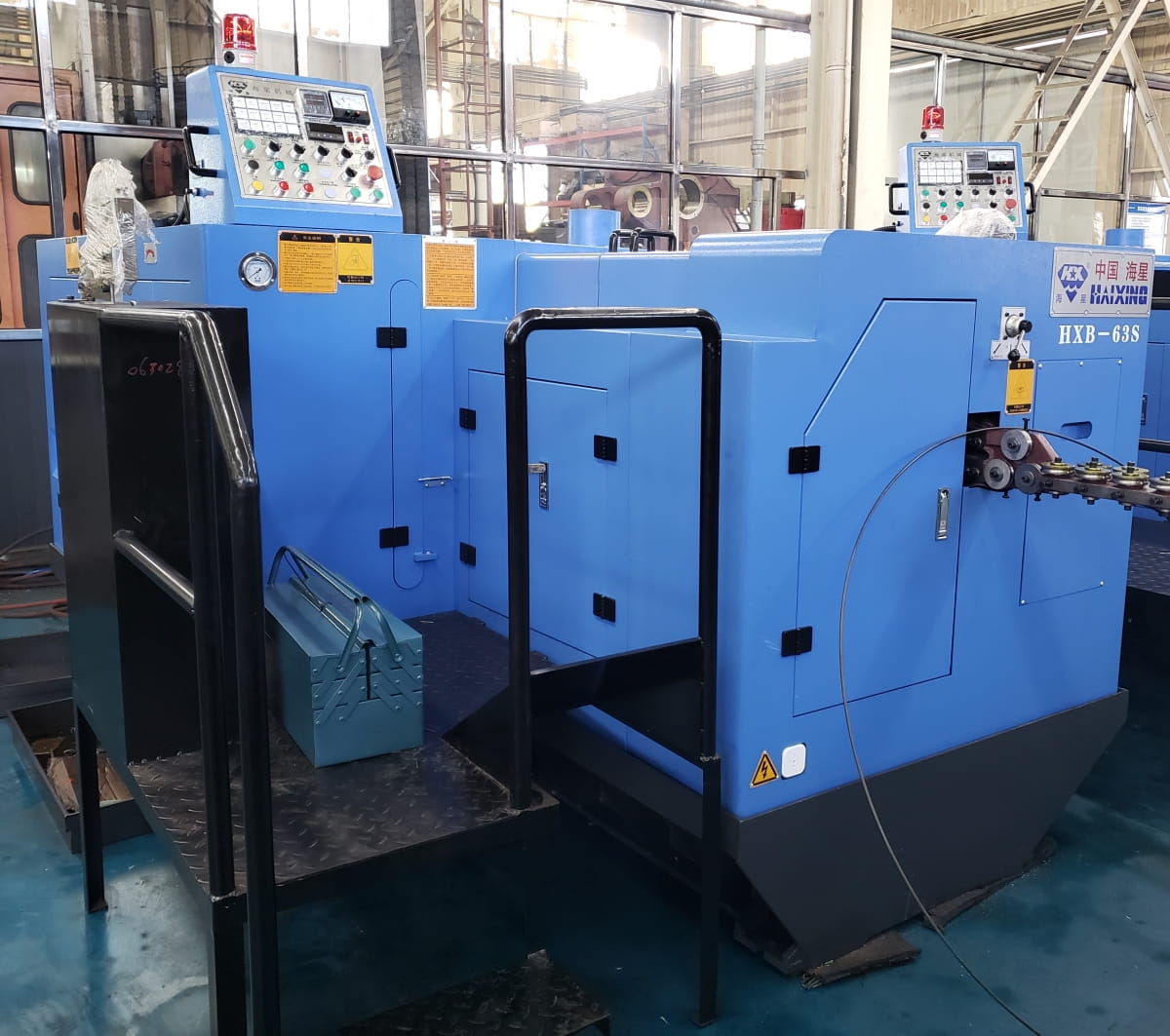

| Specifications | Unit | HXJM-43S | HXB-63S | HXB-63L | HXB-83S | HXB-83L | HXB-83LL |
| Forging stations | No. | 3 | 3 | 3 | 3 | 3 | 3 |
| Forging force | Kgs | 16000 | 35000 | 35000 | 60000 | 60000 | 65000 |
| Max. output | Pcs/Min. | 350 | 270 | 150 | 220 | 160 | 120 |
| Max. cut off diameter | Mm | 4 | 8 | 8 | 10 | 10 | 10 |
| Max. cut off length | Mm | 66 | 70 | 120 | 85 | 135 | 175 |
| Main motor | Kw | 11 | 11 | 11 | 15 | 22 | 22 |
| P.K.O stroke | Mm | 12 | 12 | 20 | 12 | 15 | 30 |
| K.O stroke | Mm | 52 | 65 | 115 | 65 | 125 | 165 |
| Die pitch | Mm | 50 | 60 | 60 | 70 | 80 | 80 |
| Cut off die diameter | Mm | 20 | 30 | 30 | 30 | 30 | 30 |
| Punch die dimension | Mm | 35*75 | 40*90 | 40*110 | 45*100 | 45*115 | 45*115 |
| Main die dimension | Mm | 40*85 | 50*85 | 50*123 | 60*95 | 60*135 | 60*185 |
| Nominal bolt size | Mm | 1-4 | 3-6 | 3-6 | 5-8 | 5-8 | 5-8 |
| Length under head | Mm | 6-50 | 10-60 | 30-100 | 12-60 | 30-110 | 30-150 |
| Appro. weight | Kgs | 3600 | 6500 | 9000 | 8100 | 13000 | 14800 |
| Appro. floor area | M | 5.6*1.38*1.43 | 6.13*2.3*1.83 | 6.78*2.45*1.8 | 6.13*2.43*1.83 | 6.6*2.68*2.12 | 9*2.86*2.16 |

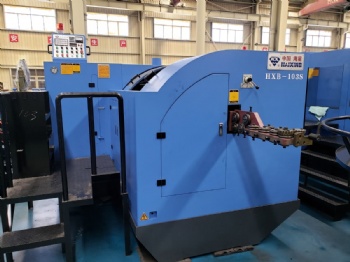

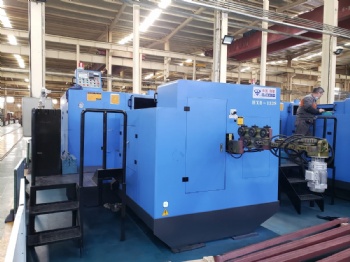

| Specifications | Unit | HXB-103S | HXB-103L | HXB-133S | HXB-133L | HXB-133LL | HXB-163S |
| Forging stations | No. | 3 | 3 | 3 | 3 | 3 | 3 |
| Forging force | Kgs | 90000 | 105000 | 120000 | 130000 | 190000 | 350000 |
| Max. output | Pcs/Min. | 180 | 130 | 150 | 100 | 70 | 100 |
| Max. cut off diameter | Mm | 12 | 12 | 15 | 15 | 15 | 18 |
| Max. cut off length | Mm | 105 | 180 | 140 | 250 | 350 | 205 |
| Main motor | Kw | 22 | 22 | 30 | 45 | 37 | 45 |
| P.K.O stroke | Mm | 15 | 30 | 20 | 60 | 60 | 30 |
| K.O stroke | Mm | 80 | 165 | 110 | 220 | 330 | 170 |
| Die pitch | Mm | 90 | 90 | 110 | 110 | 110 | 126 |
| Cut off die diameter | Mm | 45 | 45 | 55 | 55 | 55 | 60 |
| Punch die dimension | Mm | 53*115 | 53*115 | 60*115 | 68*170 | 60*250 | 75*160 |
| Main die dimension | Mm | 75*108 | 75*185 | 85*135 | 90*240 | 90*340 | 100*205 |
| Nominal bolt size | Mm | 6-10 | 6-10 | 8-12.7 | 8-12.7 | 8-12.7 | 10-16 |
| Length under head | Mm | 15-75 | 30-150 | 20-105 | 50-205 | 100-300 | 20-155 |
| Appro. weight | Kgs | 14000 | 18000 | 18000 | 25000 | 36000 | 38000 |
| Appro. floor area | M | 6.97*2.88*1.85 | 10*3.07*2.3 | 6.9*2.96*2.29 | 9.6*3.08*2.4 | 14*3.2*2.2 | 14*3.56*2.63 |
| Specifications | Unit | HXB-203S |
| Forging stations | No. | 3 |
| Forging force | Kgs | 350000 |
| Max. output | Pcs/Min. | 80 |
| Max. cut off diameter | Mm | 23 |
| Max. cut off length | Mm | 250 |
| Main motor | Kw | 75 |
| P.K.O stroke | Mm | 45 |
| K.O stroke | Mm | 220 |
| Die pitch | Mm | 138 |
| Cut off die diameter | Mm | 75 |
| Punch die dimension | Mm | 90*190 |
| Main die dimension | Mm | 125*240 |
| Nominal bolt size | Mm | 12-20 |
| Length under head | Mm | 25-200 |
| Appro. weight | Kgs | 58000 |
| Appro. floor area | M | 12.3*4.2*2.82 |
