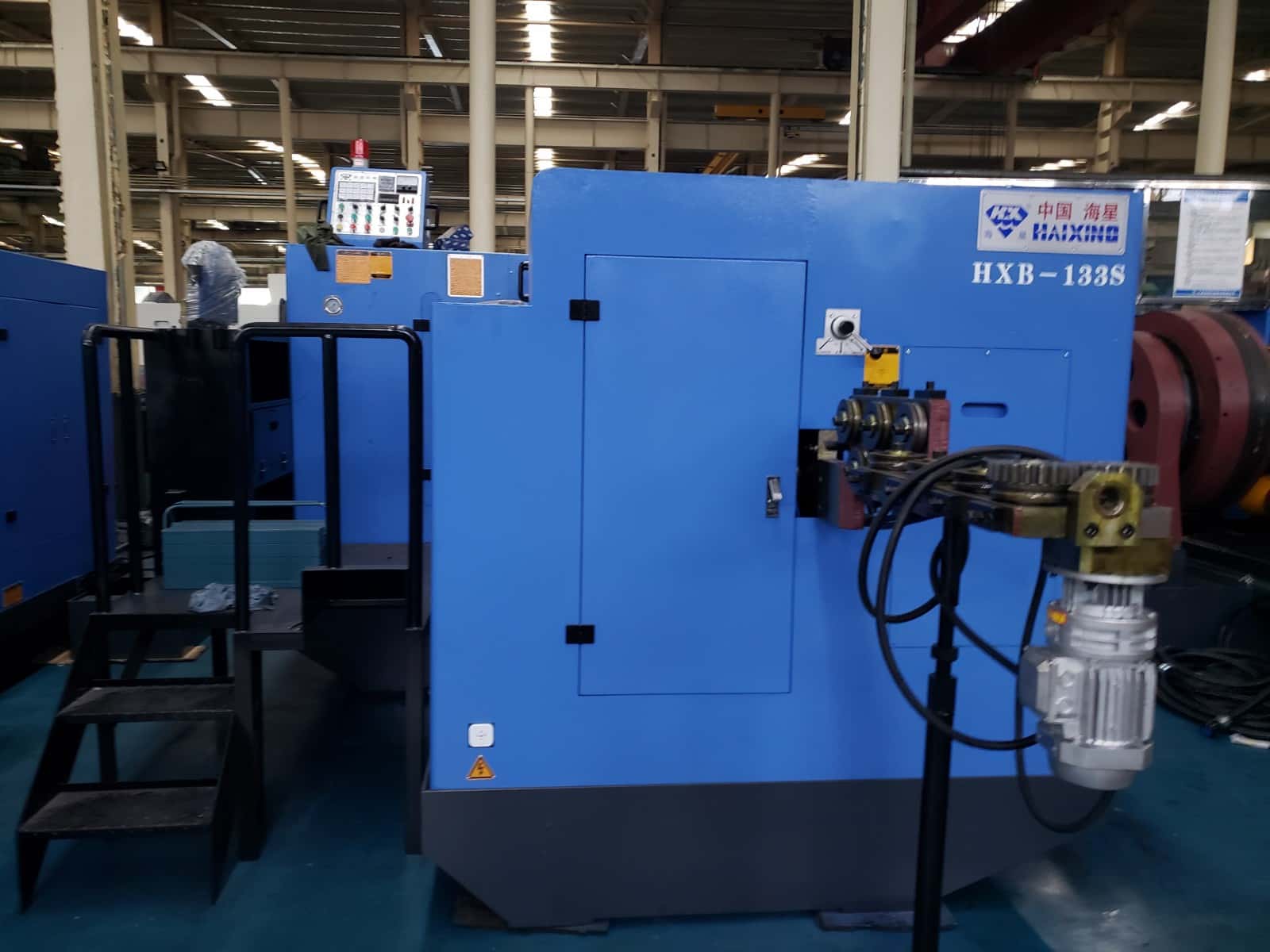

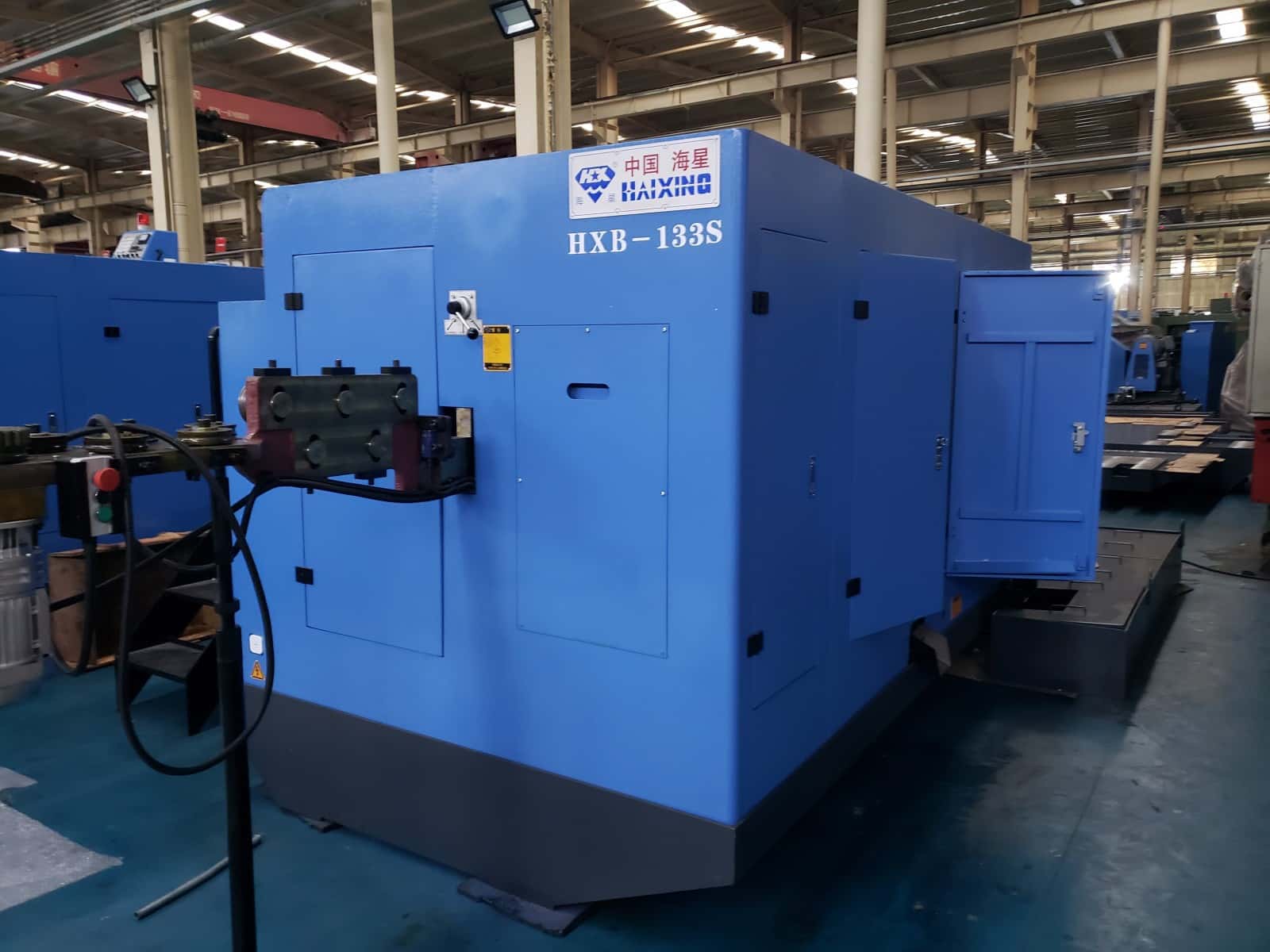

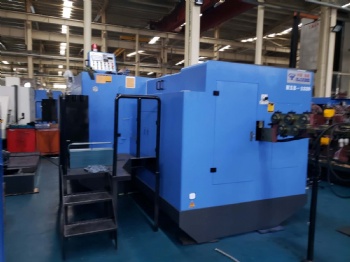

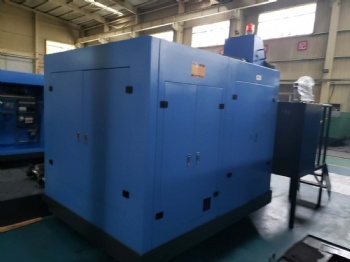

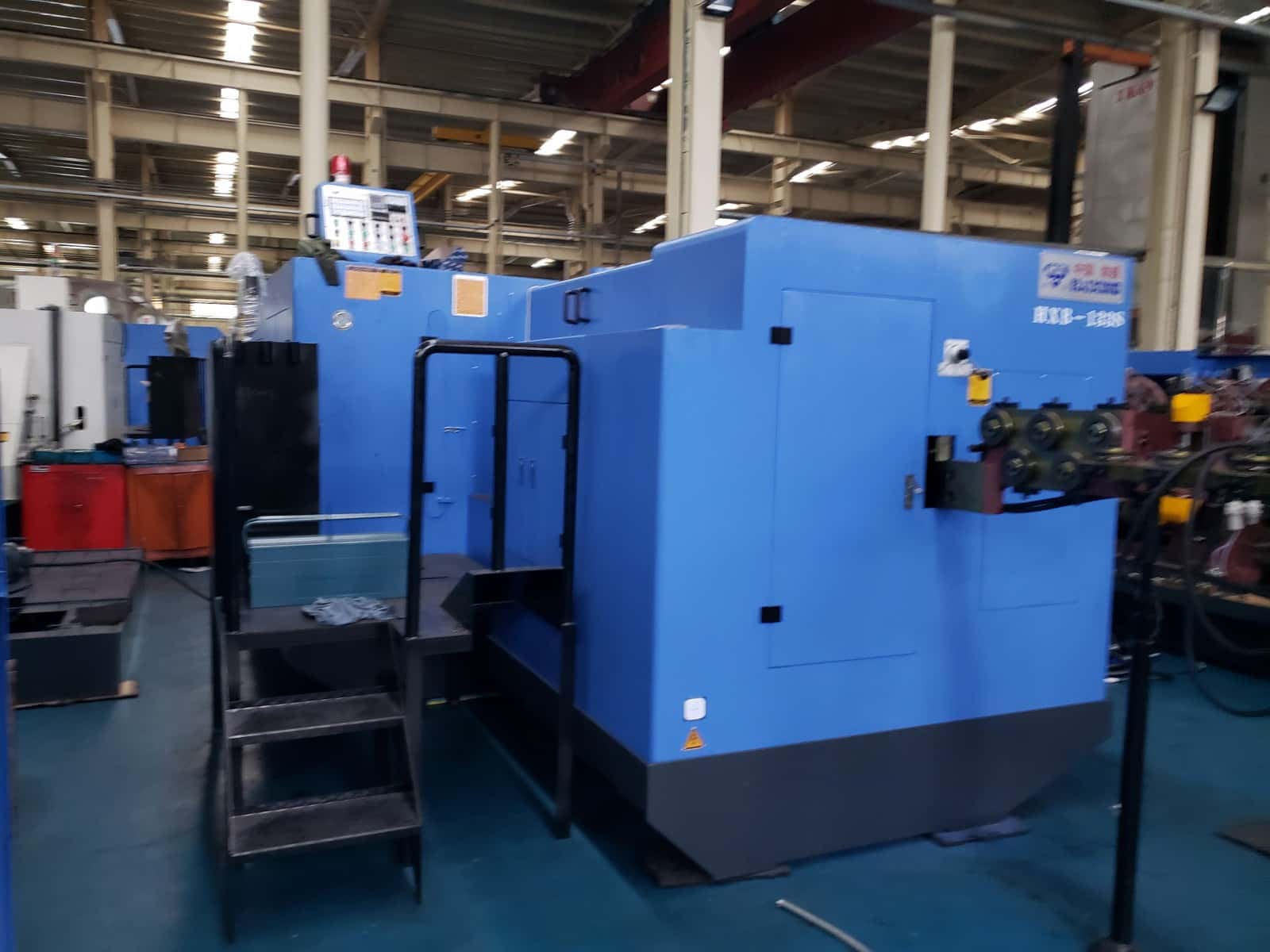

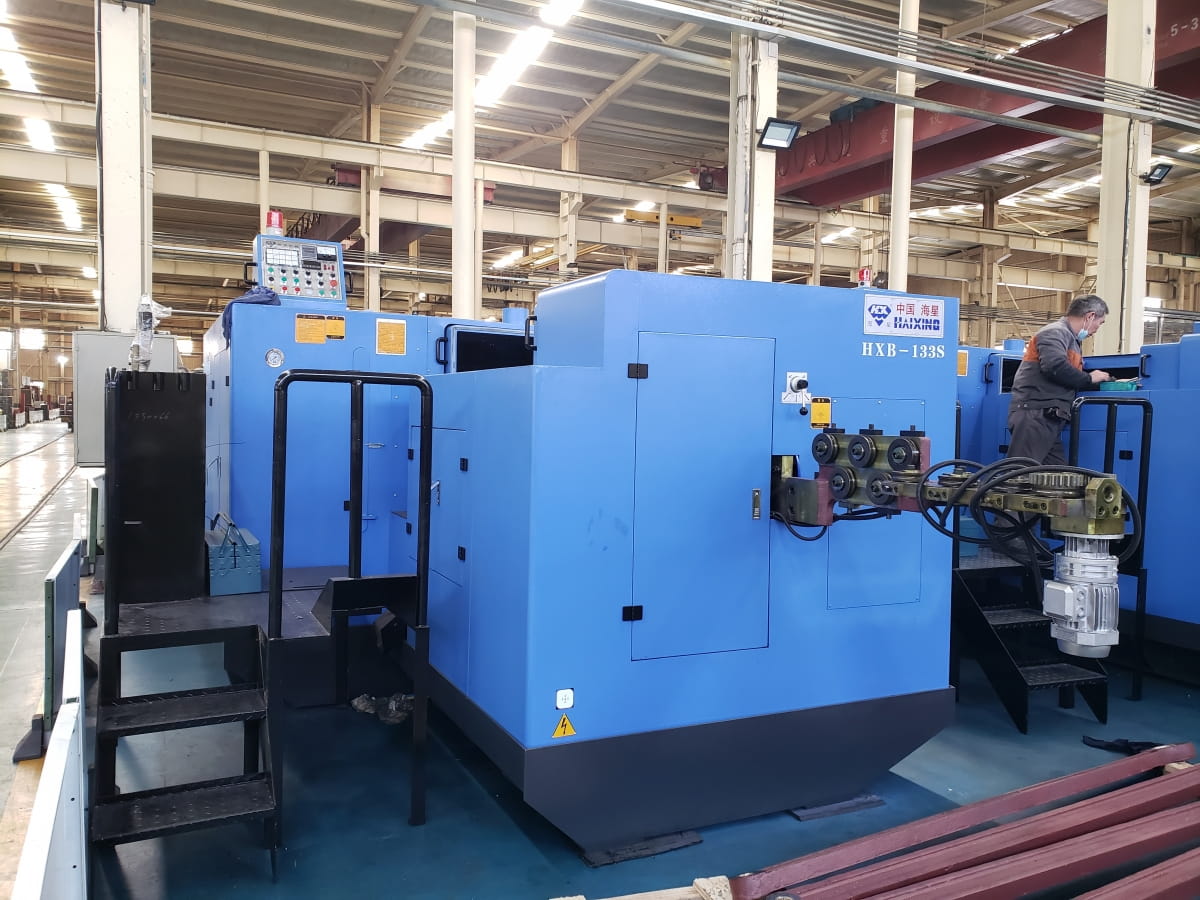

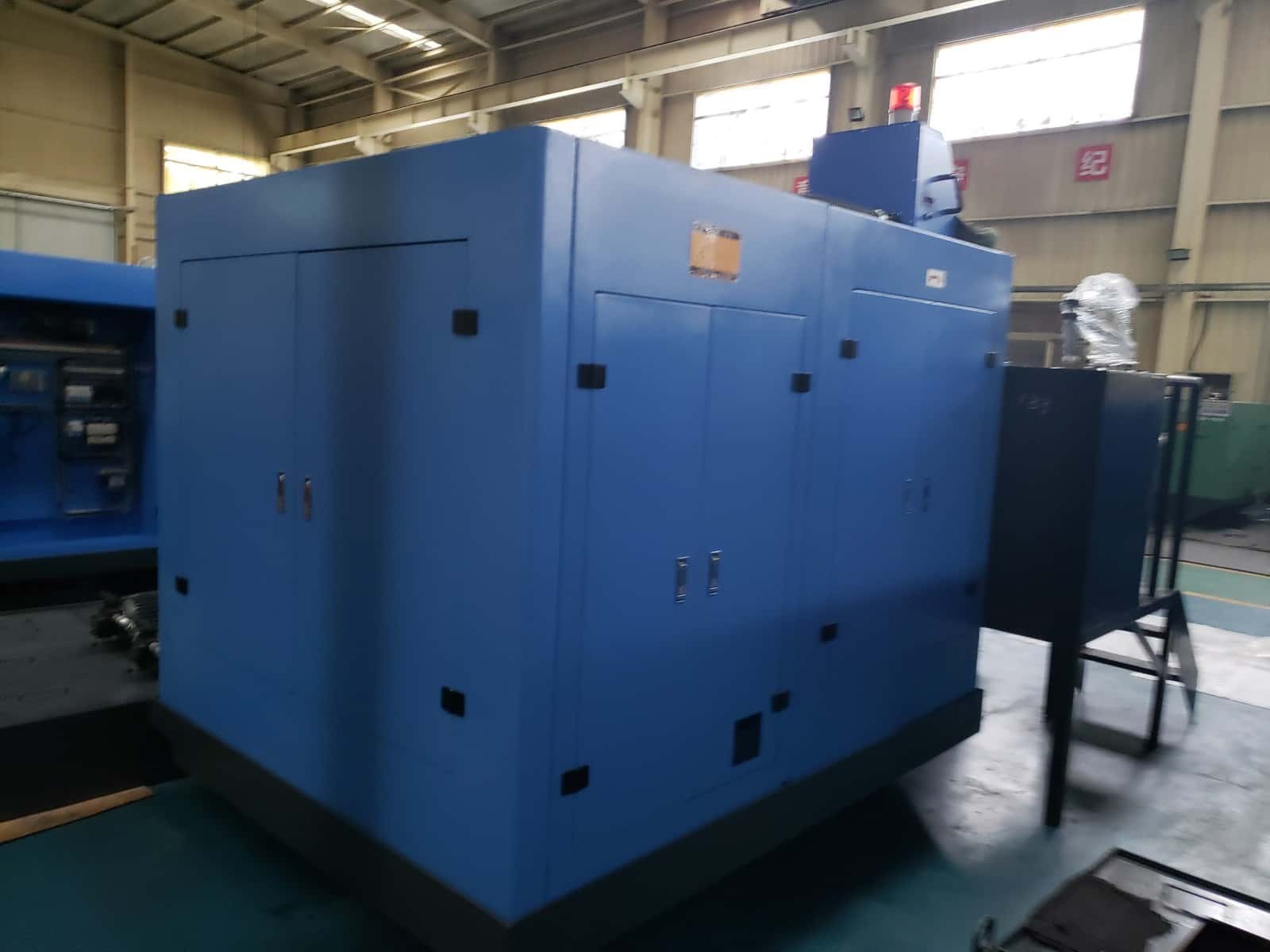

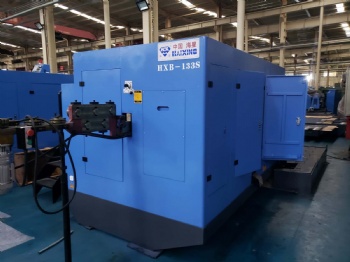

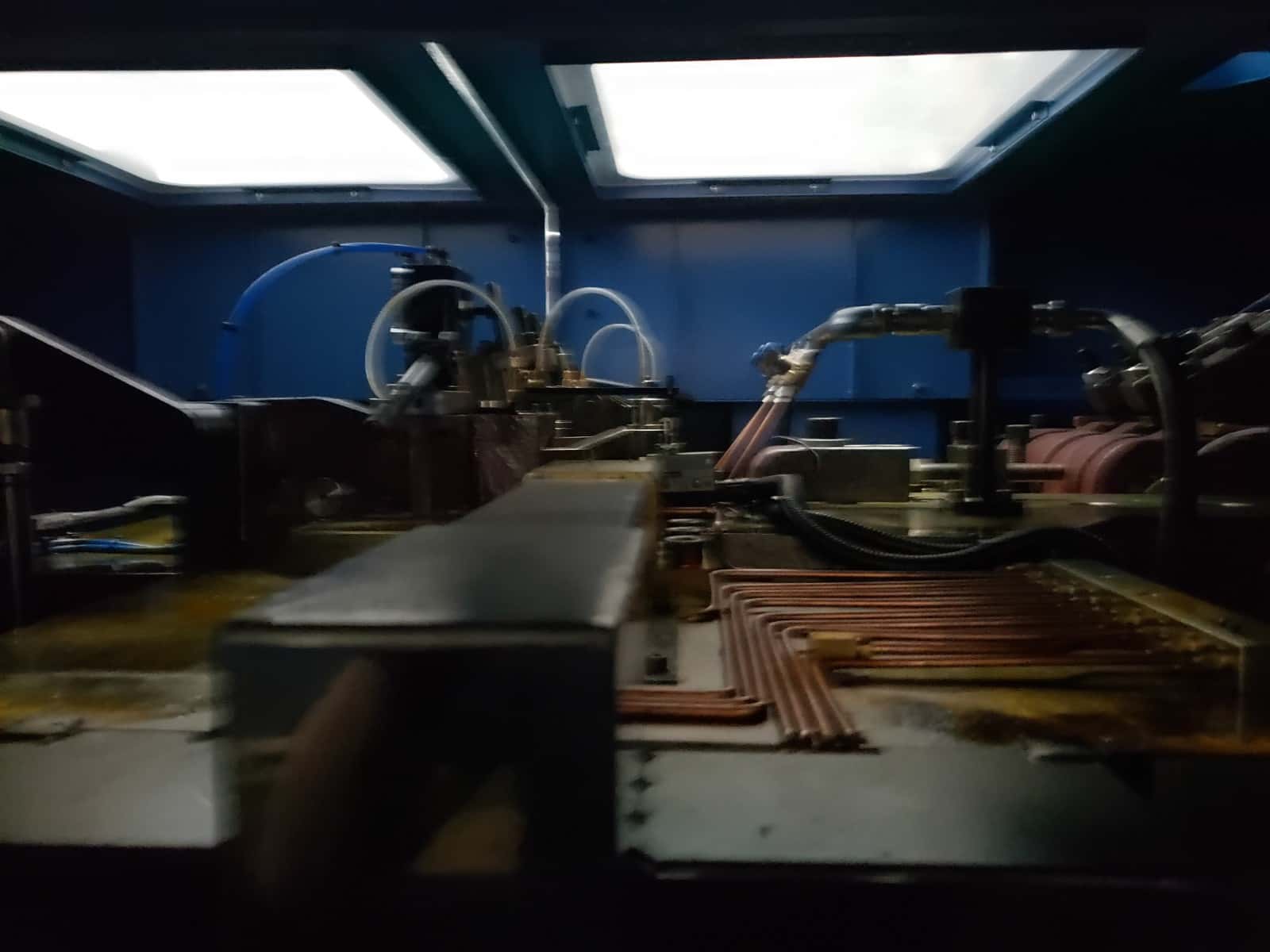

HXB-133S multi strokes bolt former
HXB-133S multi strokes bolt former
Specifications of HXB-133S multi strokes bolt former
| Specifications | Unit | HXB-133S |
| Forging stations | No. | 3 |
| Forging force | Kgs | 120000 |
| Max. output | Pcs/Min. | 150 |
| Max. cut off diameter | Mm | 15 |
| Max. cut off length | Mm | 140 |
| Main motor | Kw | 30 |
| P.K.O stroke | Mm | 20 |
| K.O stroke | Mm | 110 |
| Die pitch | Mm | 110 |
| Cut off die diameter | Mm | 55 |
| Punch die dimension | Mm | 60*115 |
| Main die dimension | Mm | 85*135 |
| Nominal bolt size | Mm | 8-12.7 |
| Length under head | Mm | 20-105 |
| Appro. weight | Kgs | 18000 |
| Appro. floor area | M | 6.9*2.96*2.29 |
