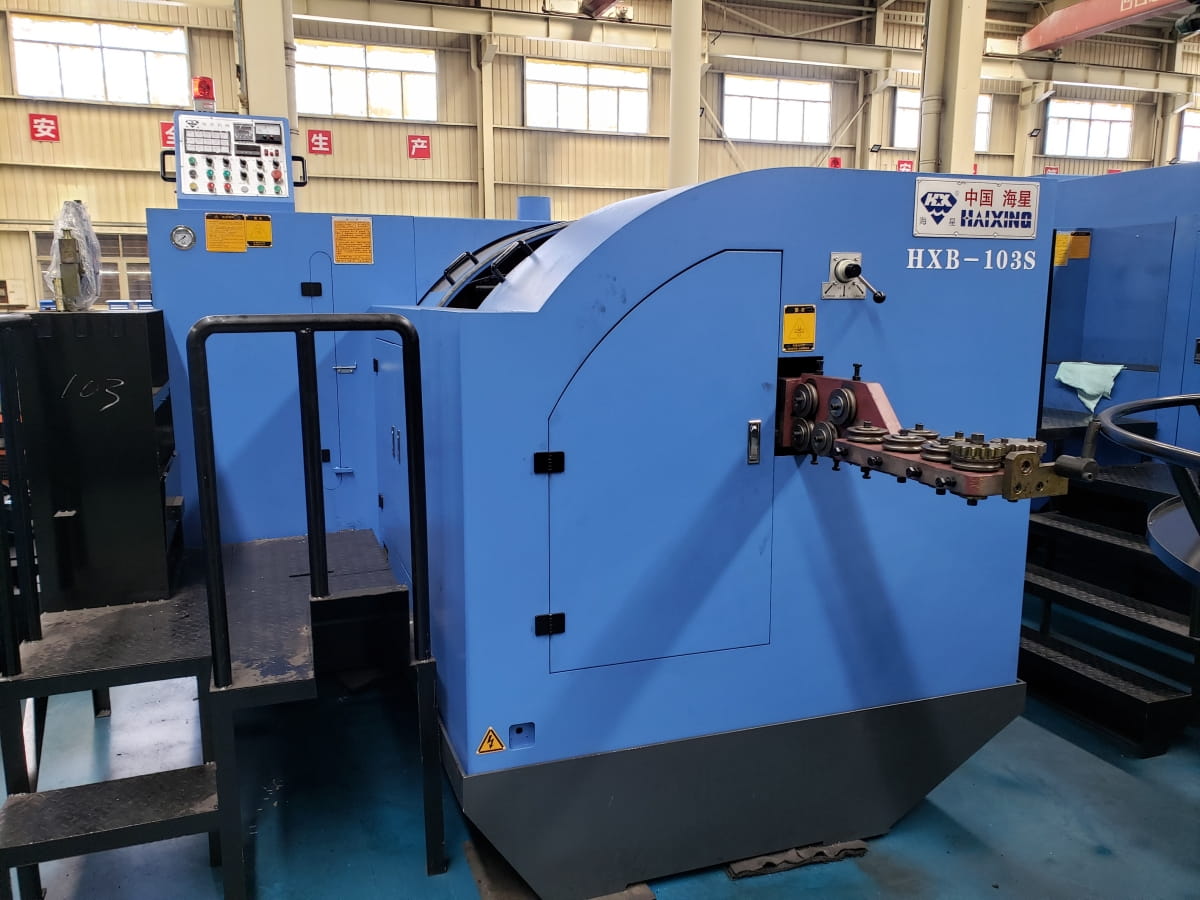

HXB-103S multi strokes bolt former
HXB-103S multi strokes bolt former
Specifications of HXB-103S multi strokes bolt former
| Specifications | Unit | HXB-103S |
| Forging stations | No. | 3 |
| Forging force | Kgs | 90000 |
| Max. output | Pcs/Min. | 180 |
| Max. cut off diameter | Mm | 12 |
| Max. cut off length | Mm | 105 |
| Main motor | Kw | 22 |
| P.K.O stroke | Mm | 15 |
| K.O stroke | Mm | 80 |
| Die pitch | Mm | 90 |
| Cut off die diameter | Mm | 45 |
| Punch die dimension | Mm | 53*115 |
| Main die dimension | Mm | 75*108 |
| Nominal bolt size | Mm | 6-10 |
| Length under head | Mm | 15-75 |
| Appro. weight | Kgs | 14000 |
| Appro. floor area | M | 6.97*2.88*1.85 |
