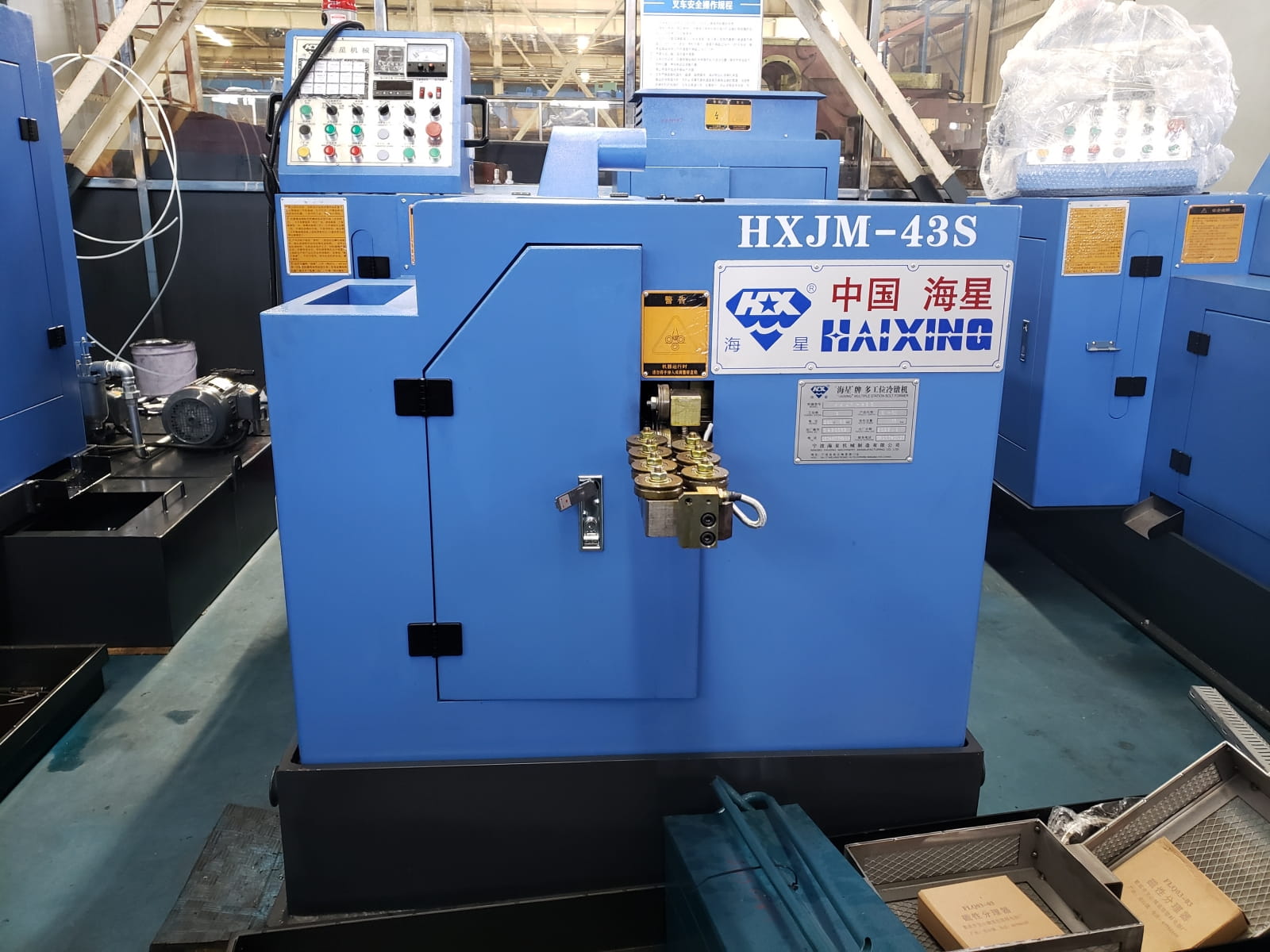

HXJM-43S multi strokes bolt former
HXJM-43S multi strokes bolt former
Specifications of HXJM-43S multi strokes bolt former
| Specifications | Unit | HXJM-43S |
| Forging stations | No. | 3 |
| Forging force | Kgs | 16000 |
| Max. output | Pcs/Min. | 350 |
| Max. cut off diameter | Mm | 4 |
| Max. cut off length | Mm | 66 |
| Main motor | Kw | 11 |
| P.K.O stroke | Mm | 12 |
| K.O stroke | Mm | 52 |
| Die pitch | Mm | 50 |
| Cut off die diameter | Mm | 20 |
| Punch die dimension | Mm | 35*75 |
| Main die dimension | Mm | 40*85 |
| Nominal bolt size | Mm | 1-4 |
| Length under head | Mm | 6-50 |
| Appro. weight | Kgs | 3600 |
| Appro. floor area | M | 5.6*1.38*1.43 |
