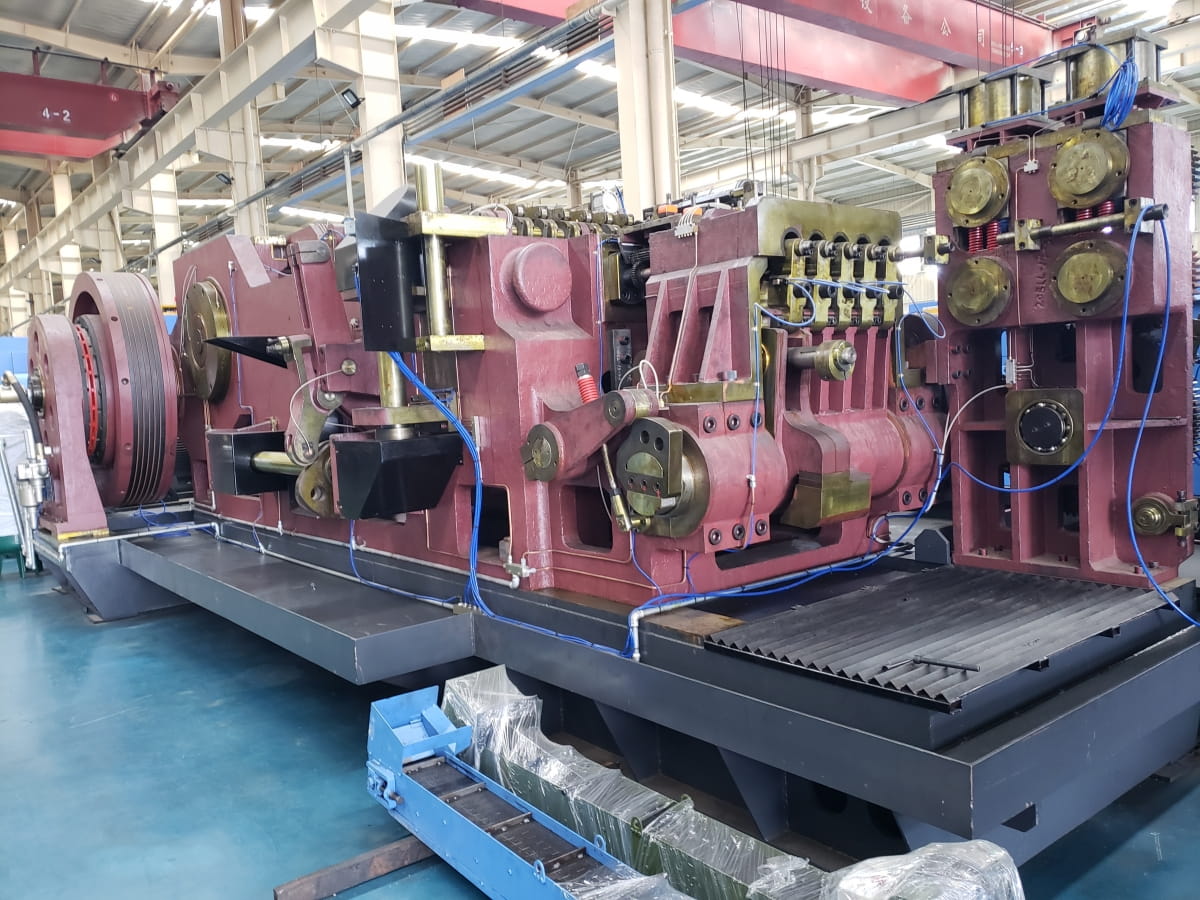

All models five stations part former
All models five stations part former
Specifications of five stations bolt parts former
| Specifications | Unit | HXJM-45S | HXB-65S | HXB-85S | HXB-85L | HXB-105S | HXB-135L |
| Forging stations | No. | 5 | 5 | 5 | 5 | 5 | 5 |
| Forging force | Kgs | 16000 | 40000 | 80000 | 90000 | 120000 | 130000 |
| Max. output | Pcs/Min. | 320 | 200 | 140 | 110 | 130 | 80 |
| Max. cut off diameter | Mm | 4 | 8 | 10 | 10 | 12 | 15 |
| Max. cut off length | Mm | 66 | 95 | 100 | 140 | 135 | 190 |
| Main motor | Kw | 11 | 15 | 22 | 30 | 37 | 37 |
| P.K.O stroke | Mm | 12 | 20 | 15 | 25 | 30 | 30 |
| K.O stroke | Mm | 52 | 85 | 85 | 125 | 110 | 160 |
| Die pitch | Mm | 50 | 69 | 80 | 80 | 90 | 110 |
| Cut off die diameter | Mm | 20 | 30 | 30 | 30 | 45 | 55 |
| Punch die dimension | Mm | 35*75 | 45*90 | 45*115 | 45*125 | 53*135 | 60*150 |
| Main die dimension | Mm | 40*85 | 60*108 | 60*108 | 70*150 | 75*135 | 85*190 |
| Nominal bolt size | Mm | 1-4 | 3-6 | 5-8 | 5-8 | 6-10 | 8-12.7 |
| Length under head | Mm | 6-50 | 10-75 | 15-75 | 30-110 | 20-110 | 30-155 |
| Appro. weight | Kgs | 4800 | 11000 | 16000 | 18000 | 20000 | 30000 |
| Appro. floor area | M | 5.6*1.43*1.43 | 6.8*2.48*1.83 | 8.2*3.11*2.19 | 8*3.1*2.2 | 68.9*3.36*2.4 | 12*3.57*2.53 |
| Specifications | Unit | HXB-165S | HXB-205LL | HXB-205UL | HXB-255L | HXB-305L |
| Forging stations | No. | 5 | 5 | 5 | 5 | 5 |
| Forging force | Kgs | 360000 | 430000 | 430000 | 480000 | 600000 |
| Max. output | Pcs/Min. | 80 | 50 | 50 | 55 | 45 |
| Max. cut off diameter | Mm | 23 | 23 | 23 | 29 | 38 |
| Max. cut off length | Mm | 205 | 450 | 465 | 380 | 450 |
| Main motor | Kw | 75 | 110 | 110 | 110 | 145 |
| P.K.O stroke | Mm | 40 | 75 | 75 | 60 | 80 |
| K.O stroke | Mm | 165 | 370 | 420 | 340 | 380 |
| Die pitch | Mm | 126 | 138 | 138 | 174 | 200 |
| Cut off die diameter | Mm | 75 | 95 | 95 | 90 | 115 |
| Punch die dimension | Mm | 75*180 | 90*290 | 90*320 | 105*235 | 135*280 |
| Main die dimension | Mm | 108*205 | 125*400 | 125*460 | 160*370 | 185*420 |
| Nominal bolt size | Mm | 10-16 | 16-20 | 12-20 | 16-25.4 | 20-33 |
| Length under head | Mm | 30-160 | 100-350 | 100-400 | 100-310 | 80-380 |
| Appro. weight | Kgs | 56000 | 98000 | 105000 | 162000 | 200000 |
| Appro. floor area | M | 12*4.42*2.83 | 14.4*5.78*2.96 | 16*6.5*3.3 | 15*6.03*3.4 | 16*6.3*3.5 |
