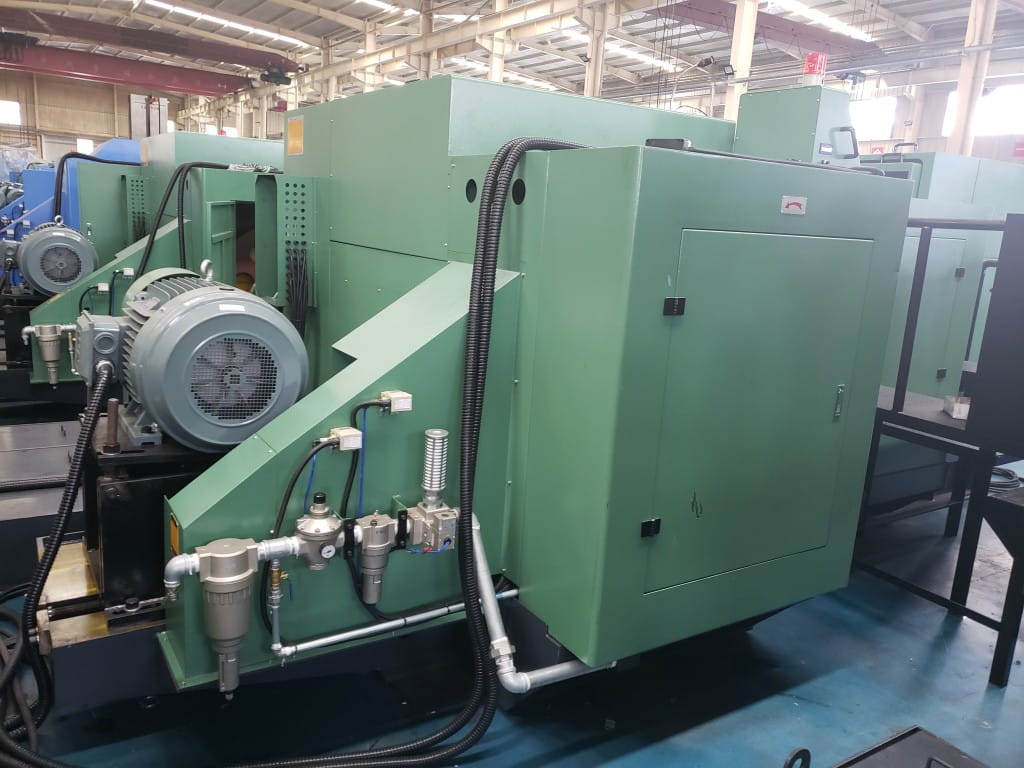

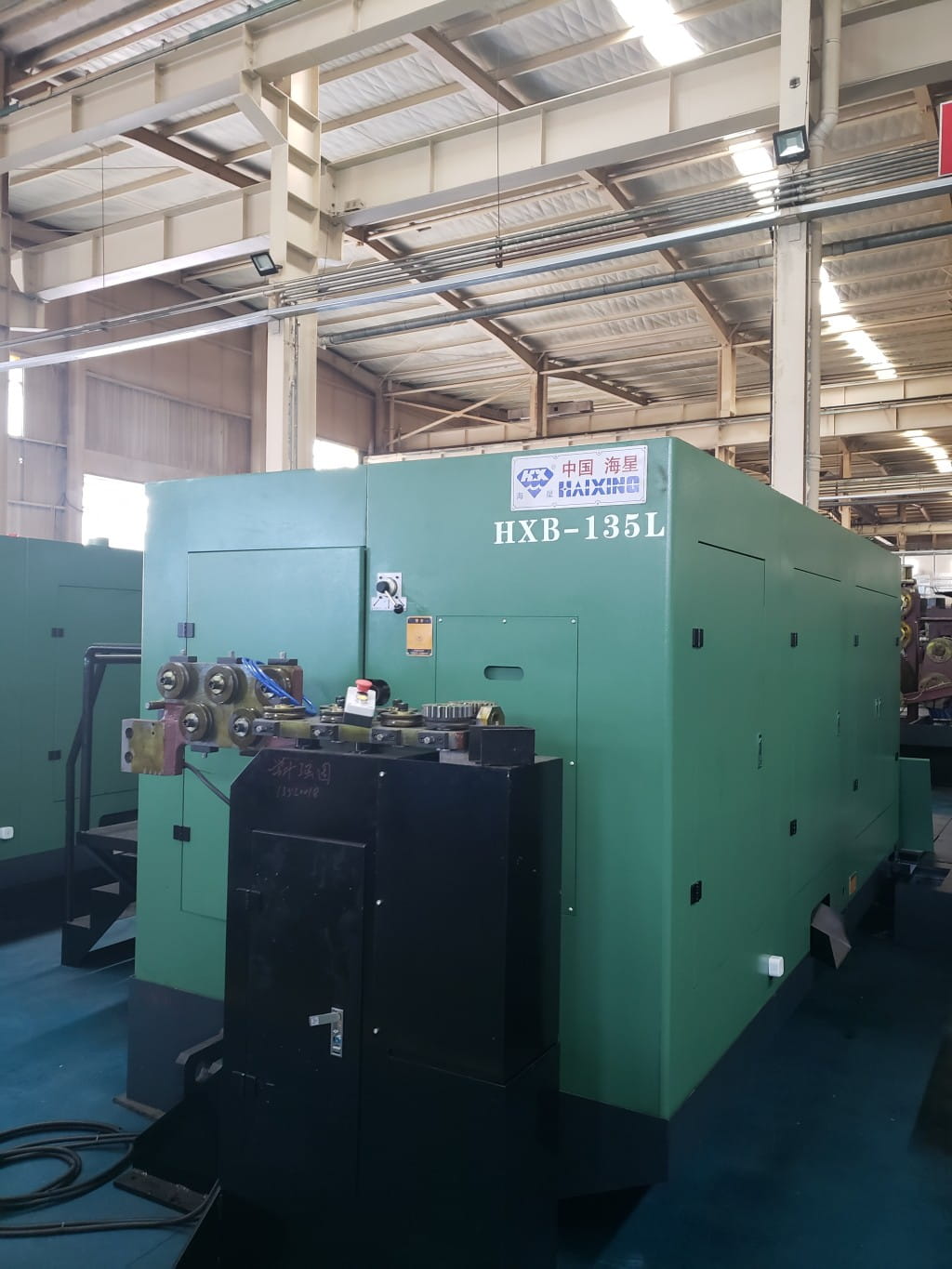

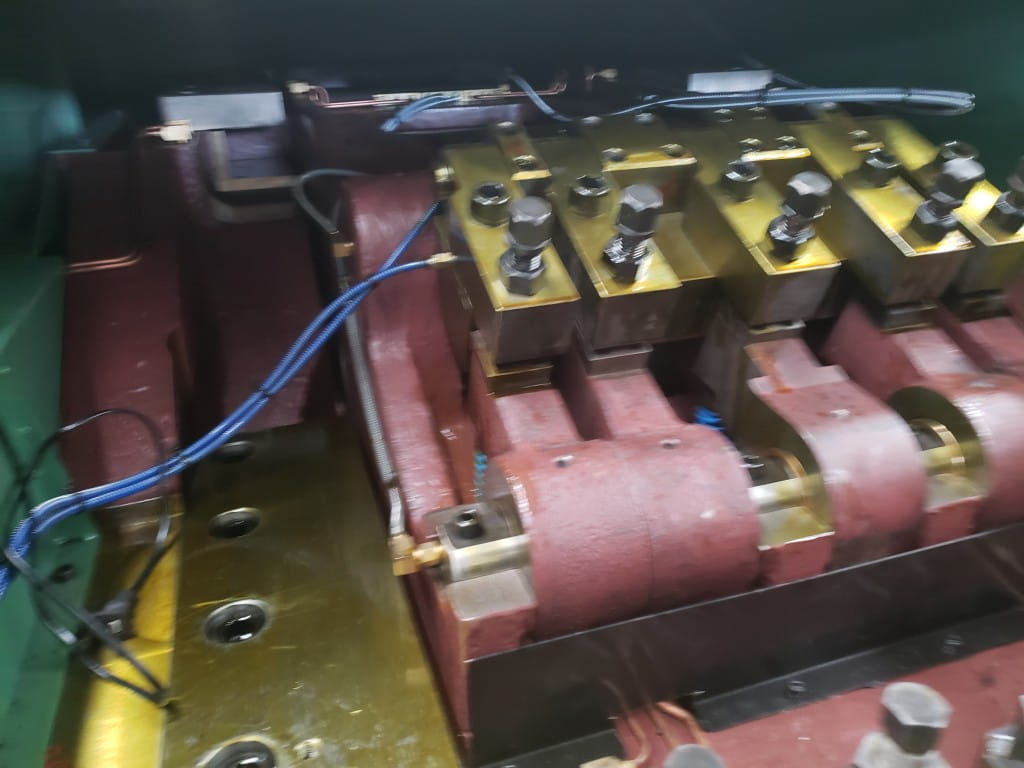

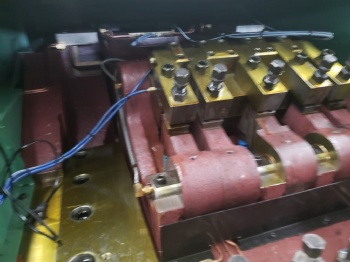

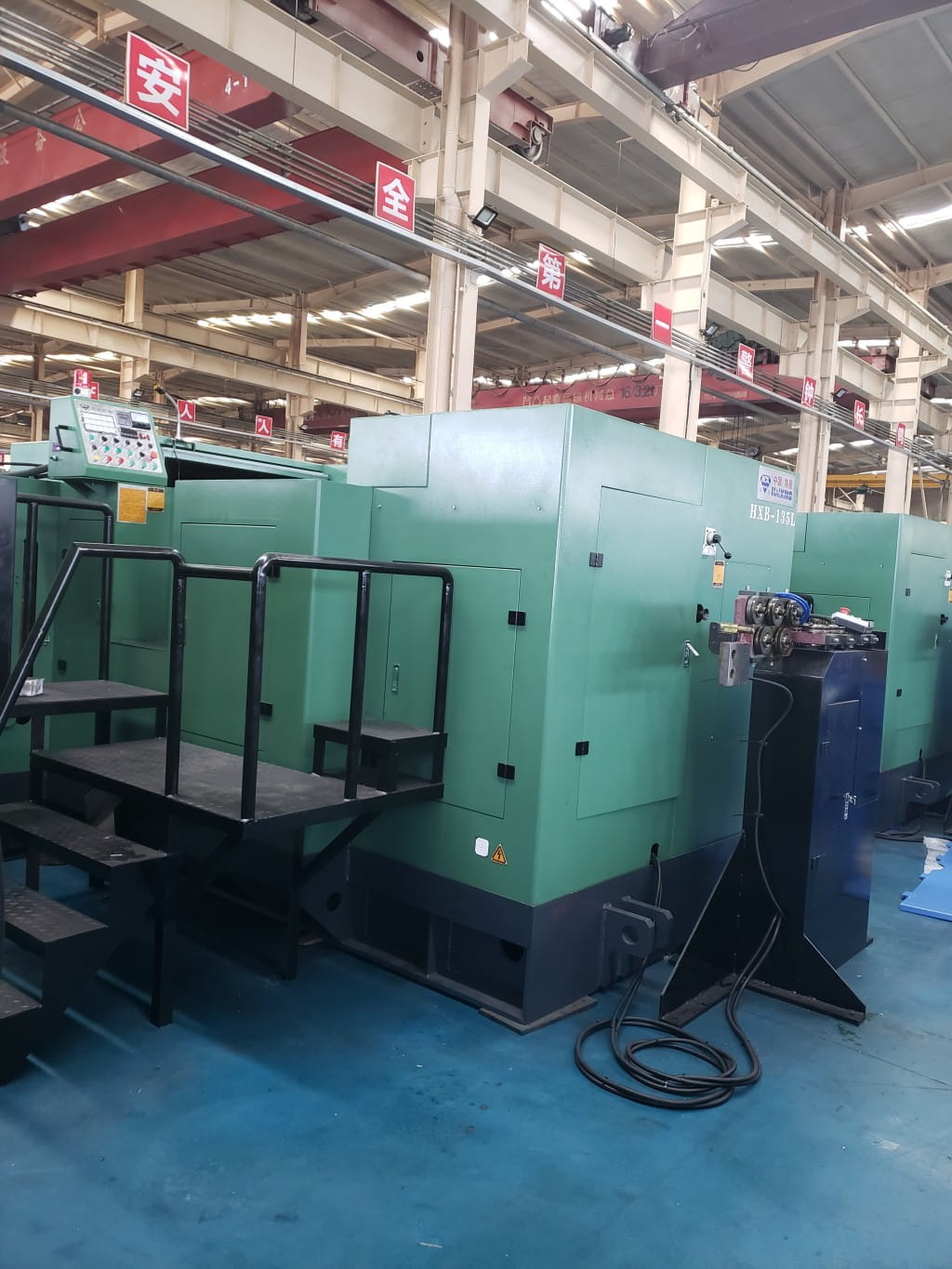

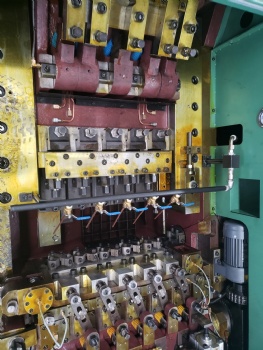

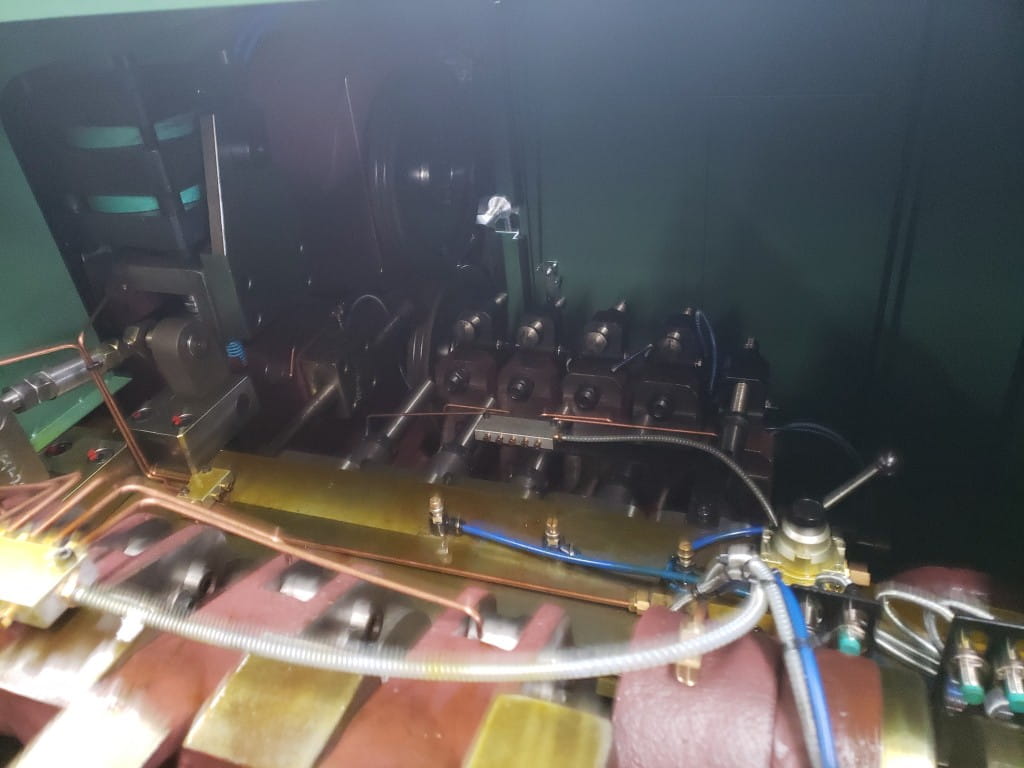

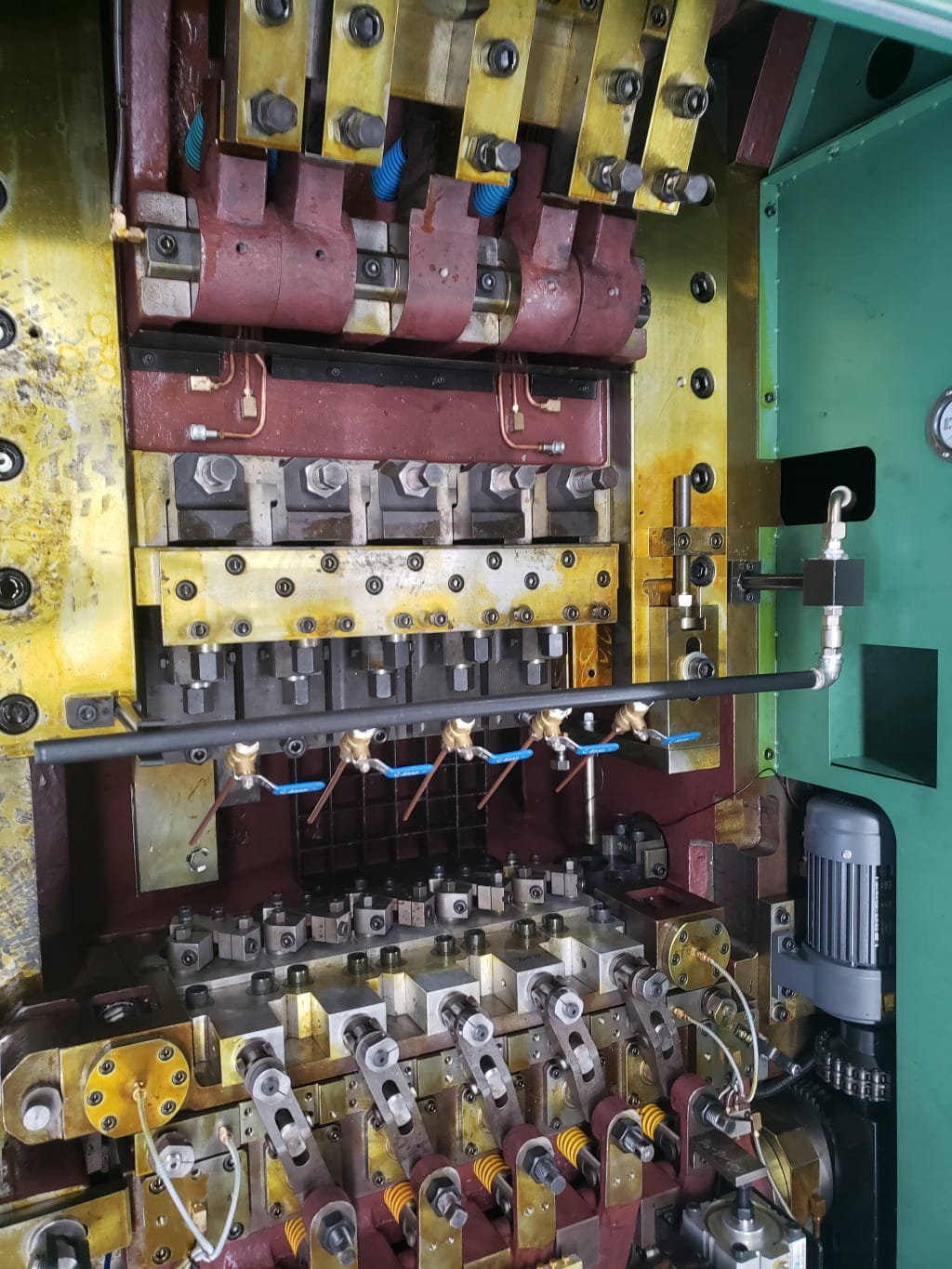

HXB-135L multi stations bolt part former
HXB-135L multi stations bolt part former
Specifications of five stations bolt parts former
| Specifications | Unit | HXB-135L |
| Forging stations | No. | 5 |
| Forging force | Kgs | 130000 |
| Max. output | Pcs/Min. | 80 |
| Max. cut off diameter | Mm | 15 |
| Max. cut off length | Mm | 190 |
| Main motor | Kw | 37 |
| P.K.O stroke | Mm | 30 |
| K.O stroke | Mm | 160 |
| Die pitch | Mm | 110 |
| Cut off die diameter | Mm | 55 |
| Punch die dimension | Mm | 60*150 |
| Main die dimension | Mm | 85*190 |
| Nominal bolt size | Mm | 8-12.7 |
| Length under head | Mm | 30-155 |
| Appro. weight | Kgs | 30000 |
| Appro. floor area | M | 12*3.57*2.53 |
