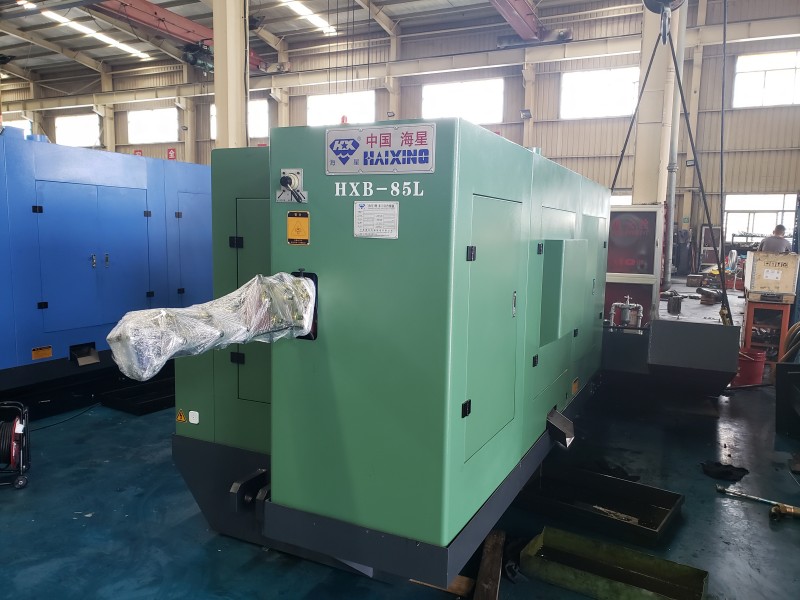

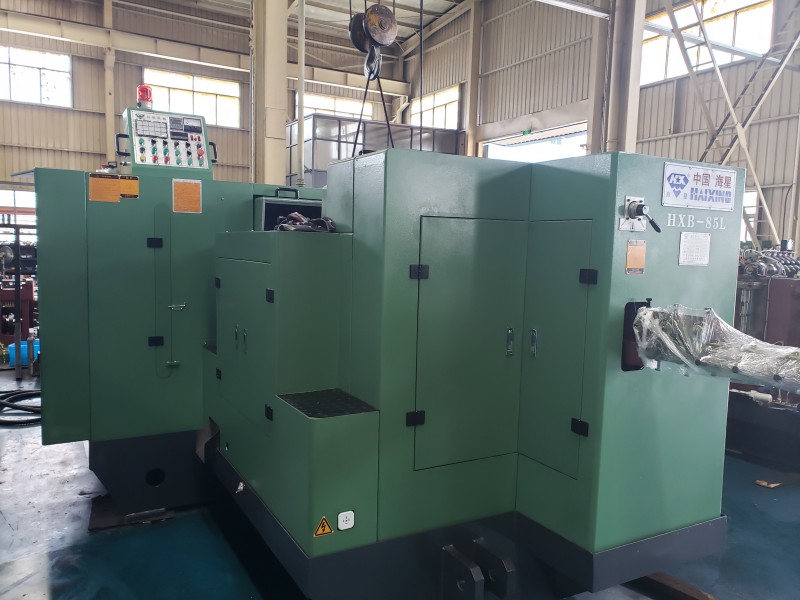

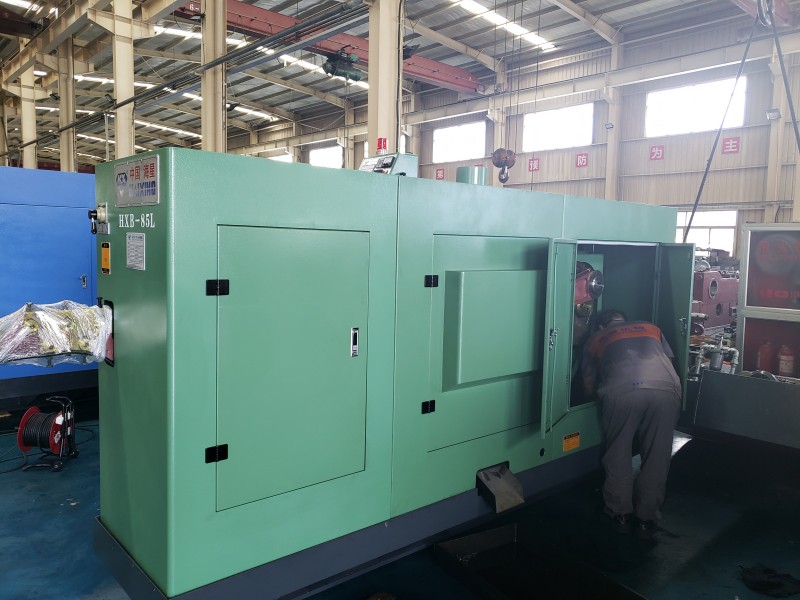

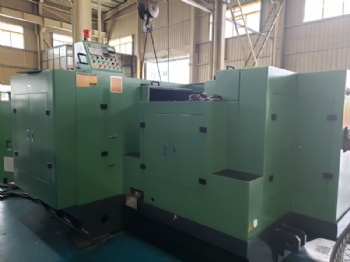

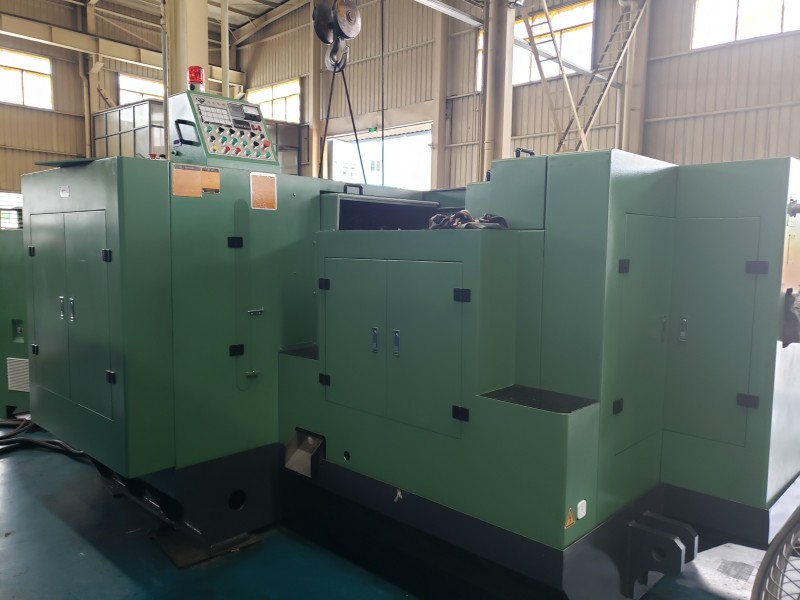

HXB-85L multi stations bolt part former
HXB-85L multi stations bolt part former
Specifications of five stations bolt parts former
| Specifications | Unit | HXB-85L |
| Forging stations | No. | 5 |
| Forging force | Kgs | 90000 |
| Max. output | Pcs/Min. | 110 |
| Max. cut off diameter | Mm | 10 |
| Max. cut off length | Mm | 140 |
| Main motor | Kw | 30 |
| P.K.O stroke | Mm | 25 |
| K.O stroke | Mm | 125 |
| Die pitch | Mm | 80 |
| Cut off die diameter | Mm | 30 |
| Punch die dimension | Mm | 45*125 |
| Main die dimension | Mm | 70*150 |
| Nominal bolt size | Mm | 5-8 |
| Length under head | Mm | 30-110 |
| Appro. weight | Kgs | 18000 |
| Appro. floor area | M | 8*3.1*2.2 |
