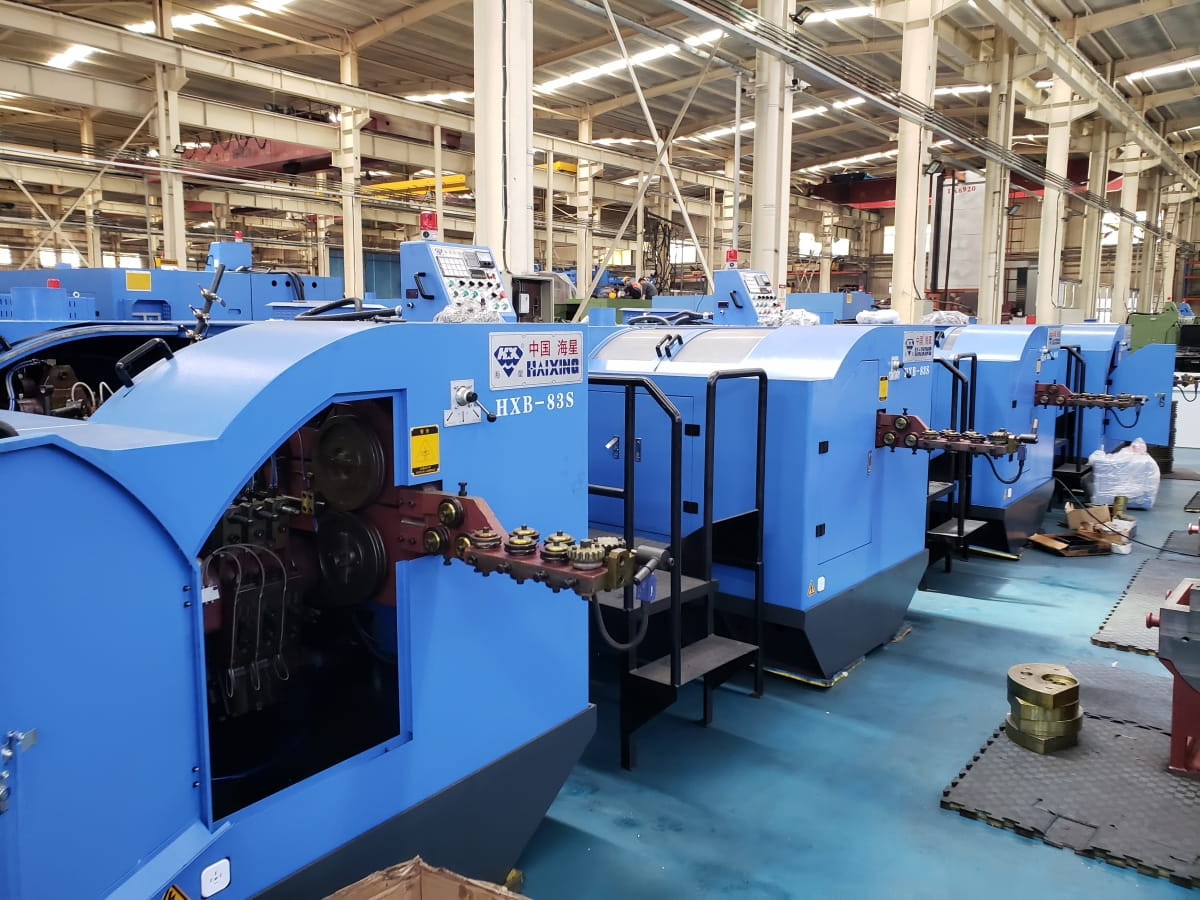

HXB-83S multi strokes bolt former
HXB-83S multi strokes bolt former
Specifications of HXB-83S multi strokes bolt former
| Specifications | Unit | HXB-83S |
| Forging stations | No. | 3 |
| Forging force | Kgs | 60000 |
| Max. output | Pcs/Min. | 220 |
| Max. cut off diameter | Mm | 10 |
| Max. cut off length | Mm | 85 |
| Main motor | Kw | 15 |
| P.K.O stroke | Mm | 12 |
| K.O stroke | Mm | 65 |
| Die pitch | Mm | 70 |
| Cut off die diameter | Mm | 30 |
| Punch die dimension | Mm | 45*100 |
| Main die dimension | Mm | 60*95 |
| Nominal bolt size | Mm | 5-8 |
| Length under head | Mm | 12-60 |
| Appro. weight | Kgs | 8100 |
| Appro. floor area | M | 6.13*2.43*1.83 |
