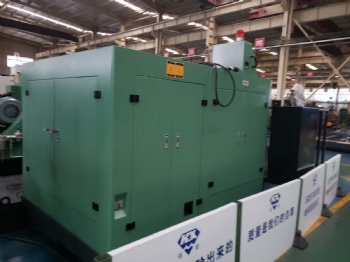

HXB-83L multi strokes bolt former
HXB-83L multi strokes bolt former
Specifications of HXB-83L multi strokes bolt former
| Specifications | Unit | HXB-83L |
| Forging stations | No. | 3 |
| Forging force | Kgs | 60000 |
| Max. output | Pcs/Min. | 160 |
| Max. cut off diameter | Mm | 10 |
| Max. cut off length | Mm | 135 |
| Main motor | Kw | 22 |
| P.K.O stroke | Mm | 15 |
| K.O stroke | Mm | 125 |
| Die pitch | Mm | 80 |
| Cut off die diameter | Mm | 30 |
| Punch die dimension | Mm | 45*115 |
| Main die dimension | Mm | 60*135 |
| Nominal bolt size | Mm | 5-8 |
| Length under head | Mm | 30-110 |
| Appro. weight | Kgs | 13000 |
| Appro. floor area | M | 6.6*2.68*2.12 |
