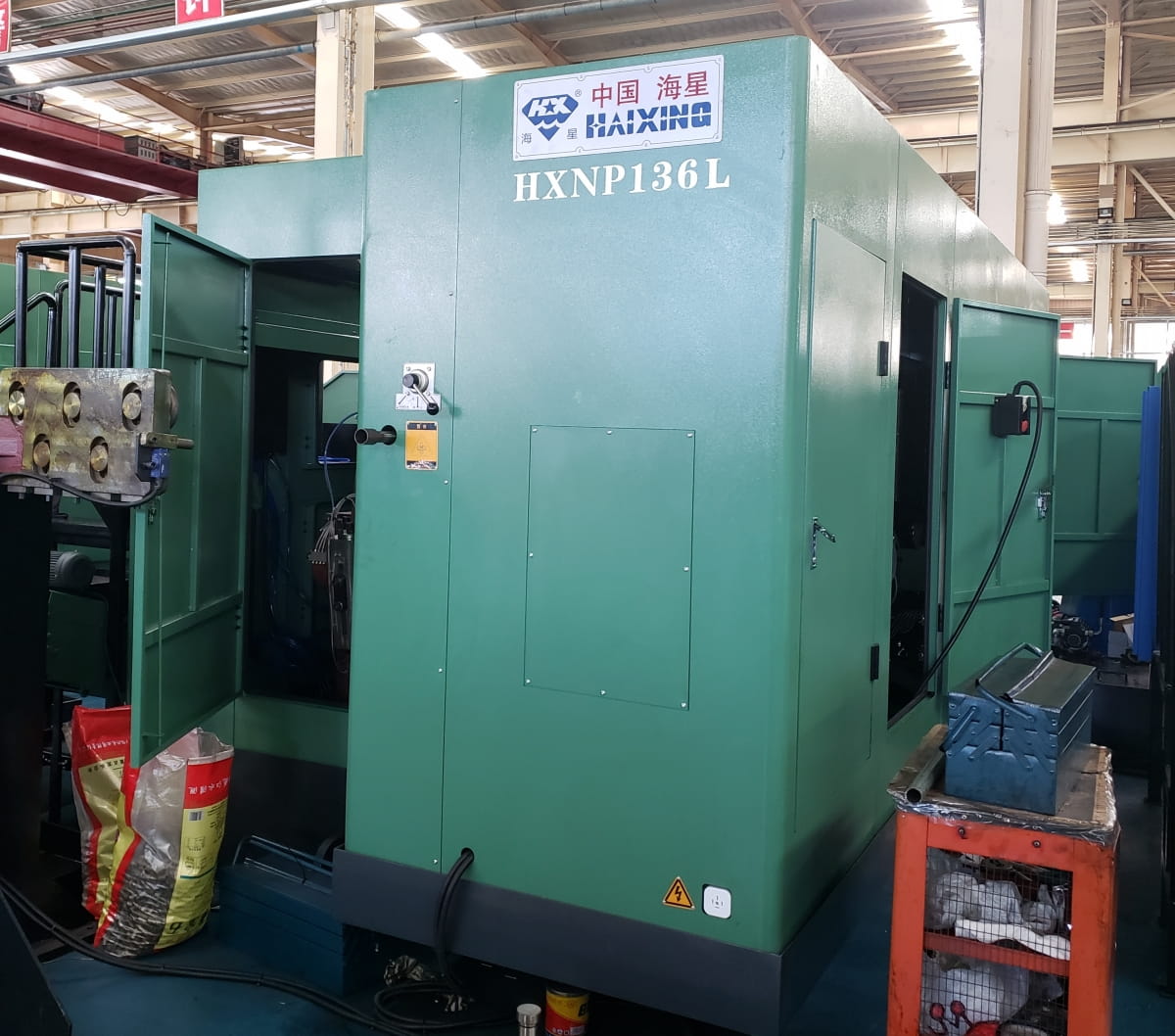

HXNP-136L multi stations bolt parts former
HXNP-136L multi stations bolt parts former
Specifications of HXNP-136L multi stations bolt parts former
| Specifications | Unit | HXNP-136L |
| Forging stations | No. | 6 |
| Forging force | Kgs | 230000 |
| Max. output | Pcs/Min. | 90 |
| Max. cut off diameter | Mm | 19 |
| Max. cut off length | Mm | 210 |
| Main motor | Kw | 55 |
| P.K.O stroke | Mm | 40 |
| K.O stroke | Mm | 190 |
| Die pitch | Mm | 110 |
| Cut off die diameter | Mm | 70 |
| Punch die dimension | Mm | 75*190 |
| Main die dimension | Mm | 100*265 |
| Nominal bolt size | Mm | 8-12.7 |
| Length under head | Mm | 20-180 |
| Appro. weight | Kgs | 41000 |
| Appro. floor area | M | 12*3.7*2.53 |
