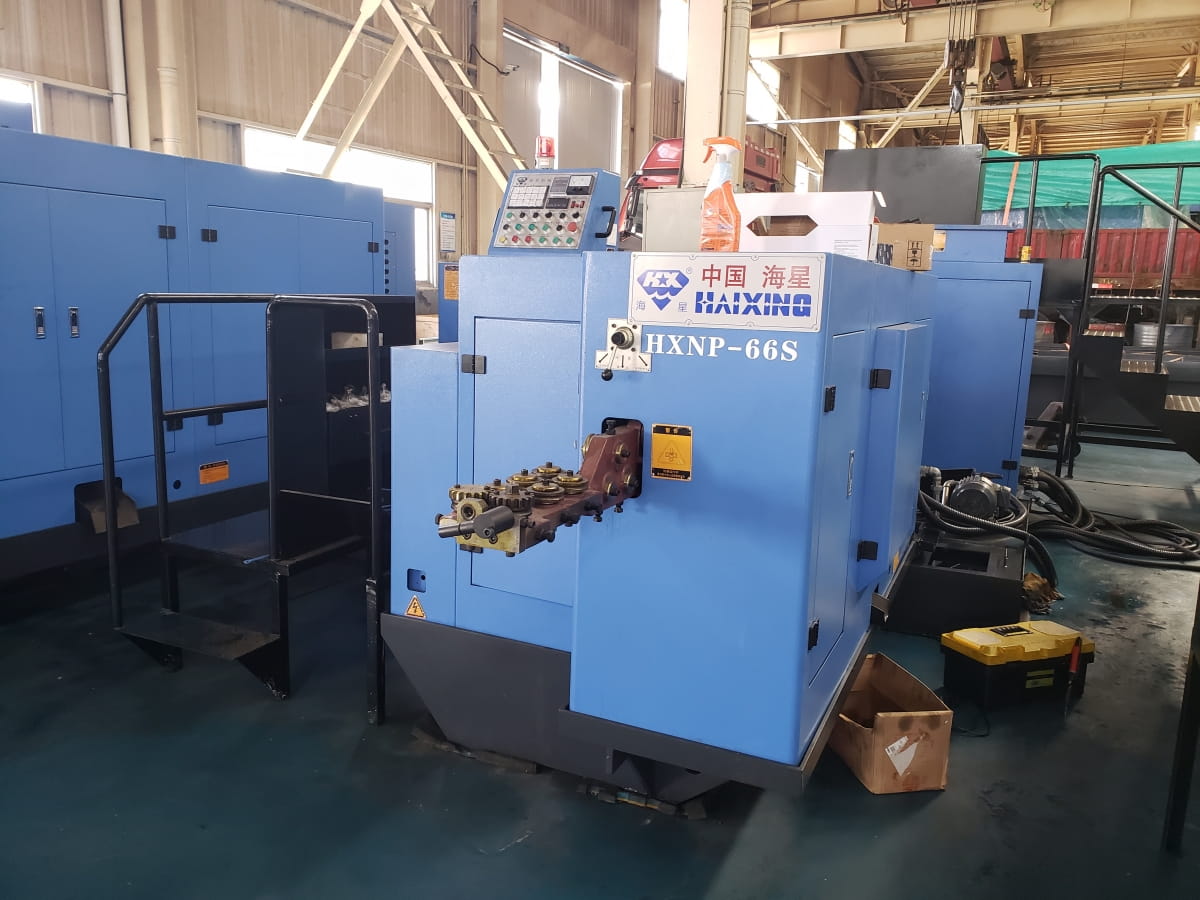

HXNP-66S six stations bolt parts former
HXNP-66S six stations bolt parts former
Specifications of HXNP-66S six stations bolt parts former
| Specifications | Unit | HXNP-66S |
| Forging stations | No. | 6 |
| Forging force | Kgs | 40000 |
| Max. output | Pcs/Min. | 180 |
| Max. cut off diameter | Mm | 8 |
| Max. cut off length | Mm | 60 |
| Main motor | Kw | 15 |
| P.K.O stroke | Mm | 28 |
| K.O stroke | Mm | 52 |
| Die pitch | Mm | 69 |
| Cut off die diameter | Mm | 36 |
| Punch die dimension | Mm | 45*98 |
| Main die dimension | Mm | 60*85 |
| Nominal bolt size | Mm | 3-6 |
| Length under head | Mm | 8-50 |
| Appro. weight | Kgs | 8500 |
| Appro. floor area | M | 6.8*2.5*1.79 |
