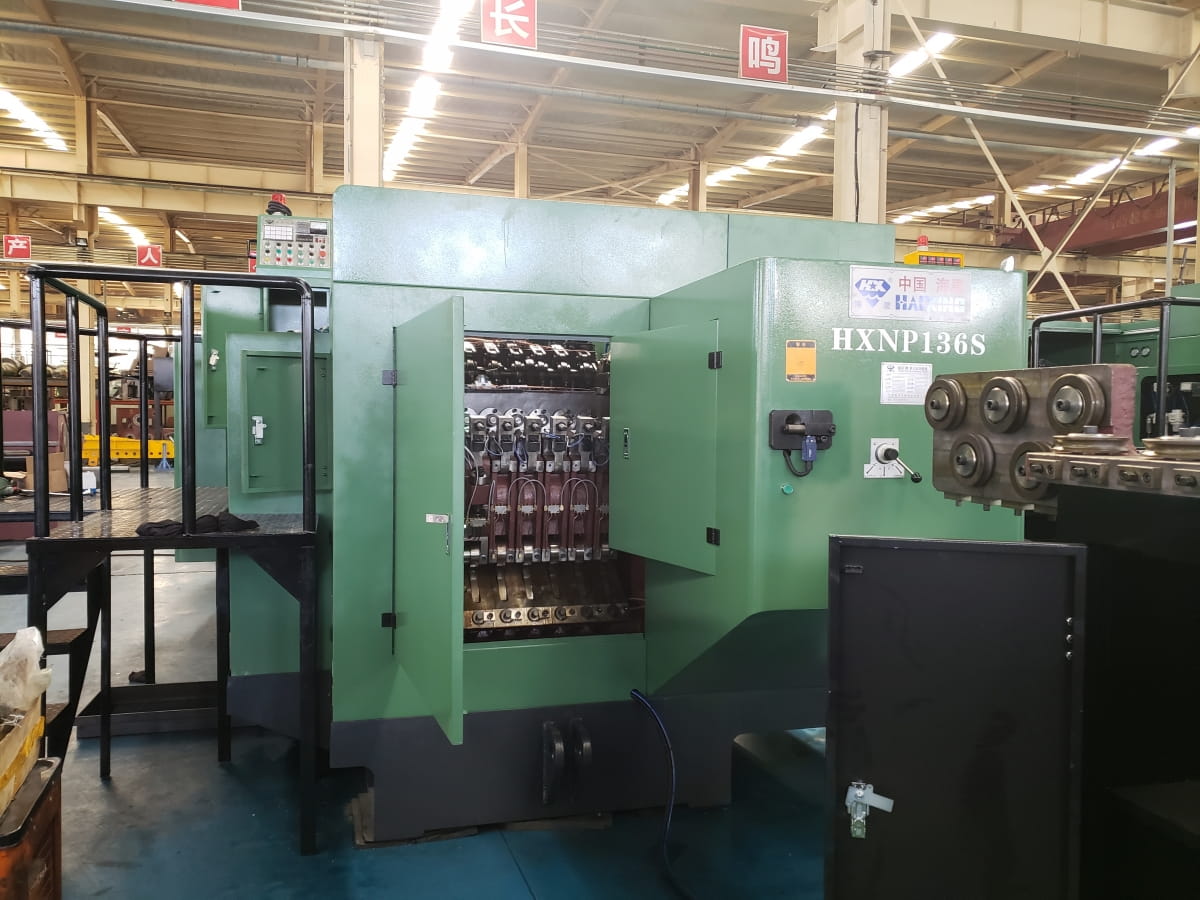

HXNP-136S six stations bolt parts former
HXNP-136S six stations bolt parts former
Specifications of HXNP-136S six stations bolt parts former
| Specifications | Unit | HXNP-136S |
| Forging stations | No. | 6 |
| Forging force | Kgs | 220000 |
| Max. output | Pcs/Min. | 100 |
| Max. cut off diameter | Mm | 19 |
| Max. cut off length | Mm | 140 |
| Main motor | Kw | 45 |
| P.K.O stroke | Mm | 30 |
| K.O stroke | Mm | 135 |
| Die pitch | Mm | 110 |
| Cut off die diameter | Mm | 60 |
| Punch die dimension | Mm | 70*150 |
| Main die dimension | Mm | 98*150 |
| Nominal bolt size | Mm | 8-12.7 |
| Length under head | Mm | 20-110 |
| Appro. weight | Kgs | 44000 |
| Appro. floor area | M | 14*4.3*2.64 |
