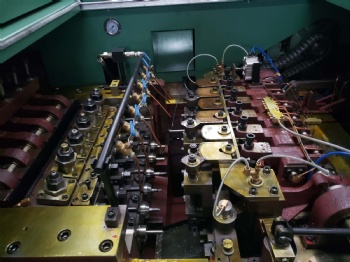

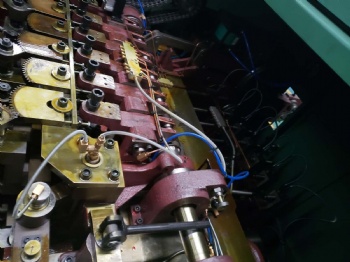

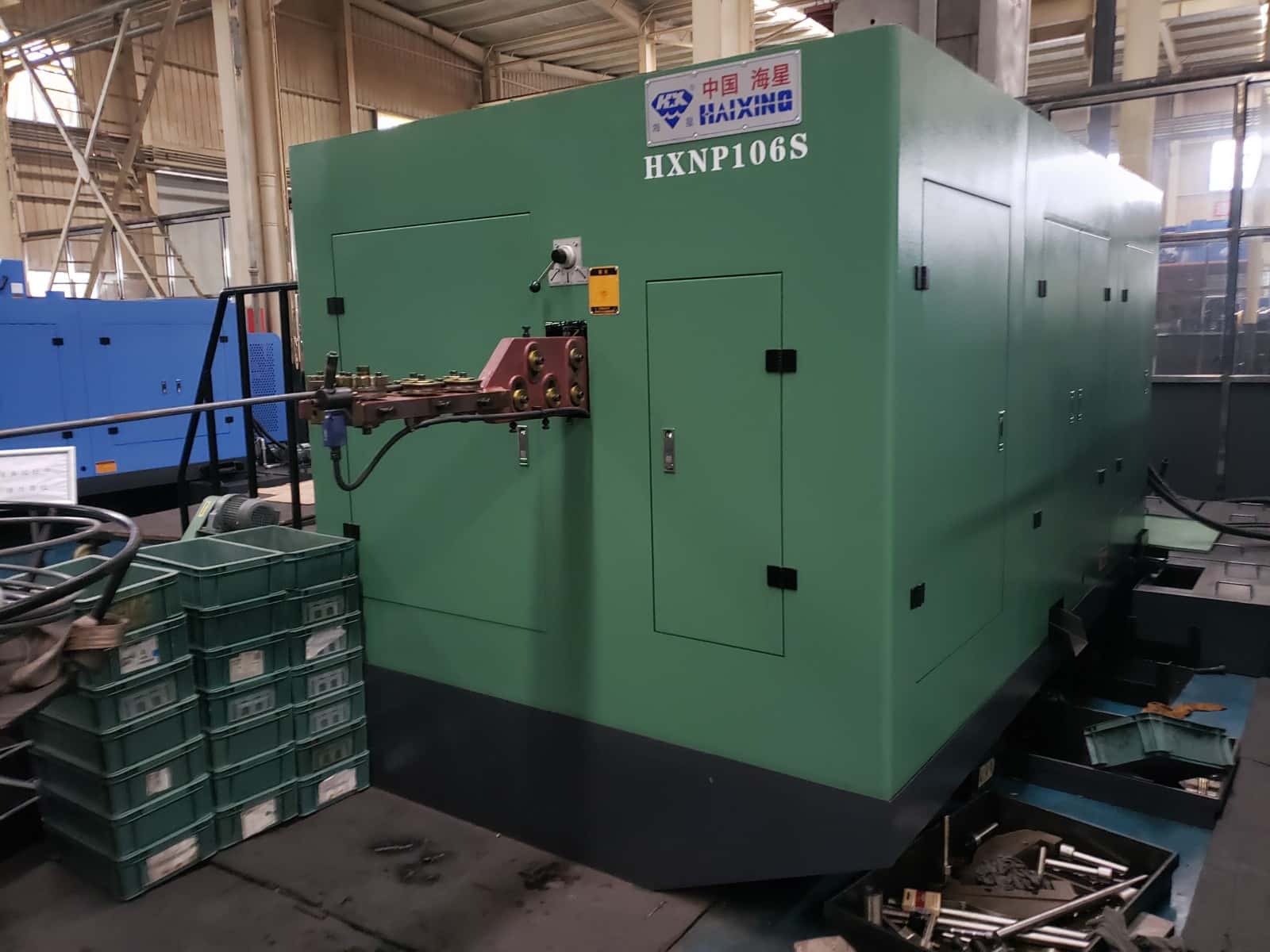

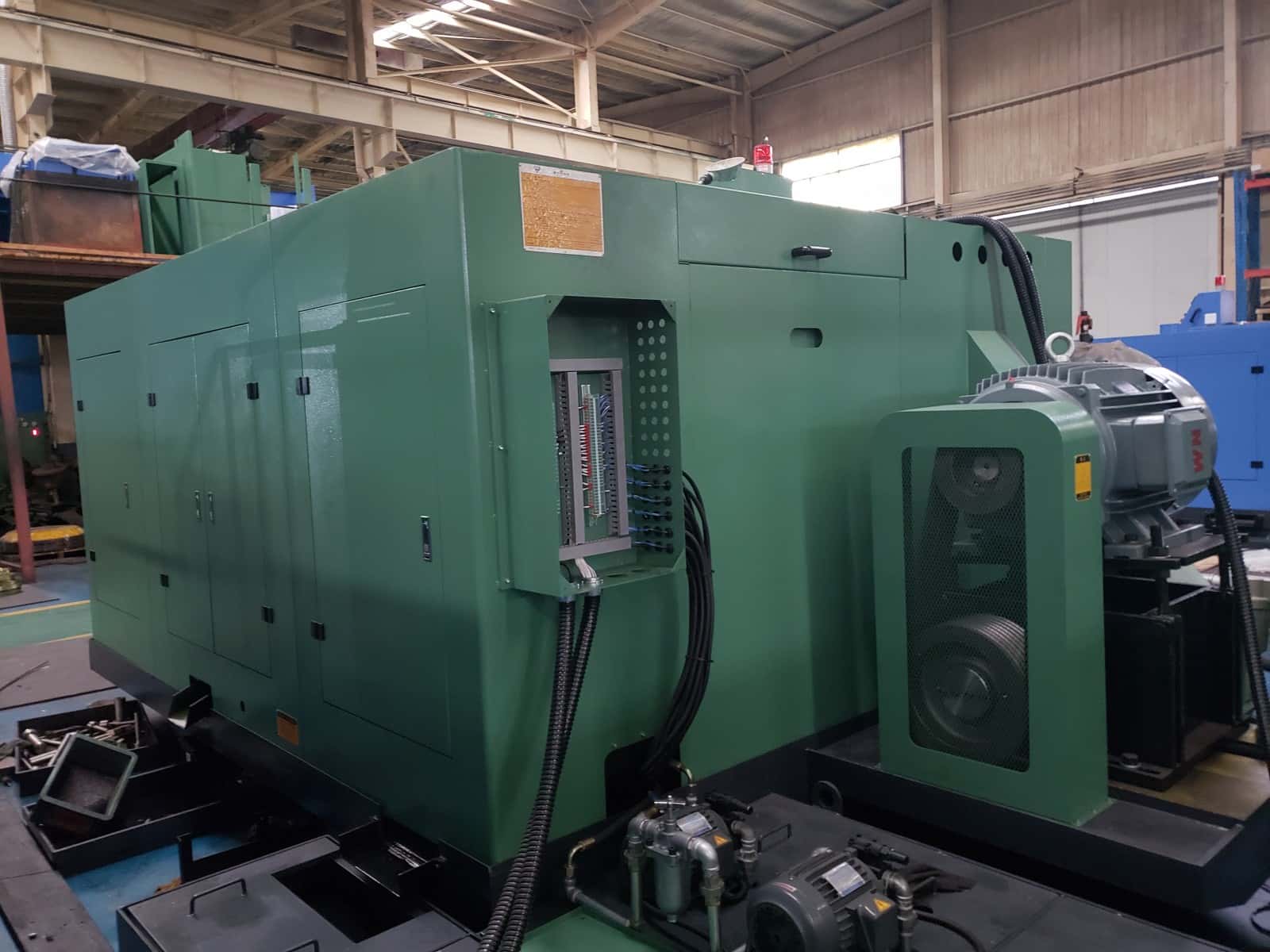

HXNP-106S six stations bolt parts former

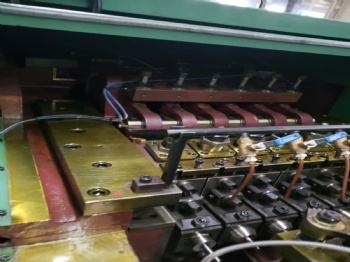

HXNP-106S six stations bolt parts former
Specifications of HXNP-136S six stations bolt parts former
| Specifications | Unit | HXNP-106S |
| Forging stations | No. | 6 |
| Forging force | Kgs | 140000 |
| Max. output | Pcs/Min. | 95 |
| Max. cut off diameter | Mm | 15 |
| Max. cut off length | Mm | 135 |
| Main motor | Kw | 37 |
| P.K.O stroke | Mm | 30 |
| K.O stroke | Mm | 110 |
| Die pitch | Mm | 94 |
| Cut off die diameter | Mm | 52 |
| Punch die dimension | Mm | 53*135 |
| Main die dimension | Mm | 75*135 |
| Nominal bolt size | Mm | 6-12 |
| Length under head | Mm | 20-110 |
| Appro. weight | Kgs | 25000 |
| Appro. floor area | M | 8.9*3.5*2.4 |
