Specifications of six stations bolt parts former

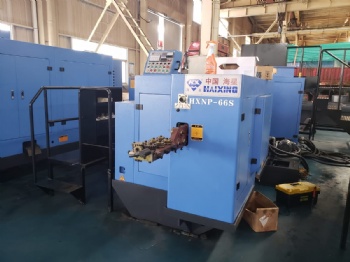

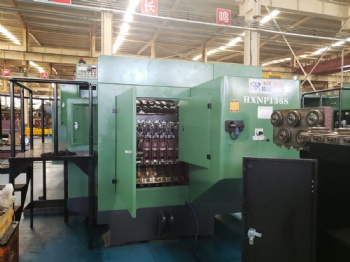

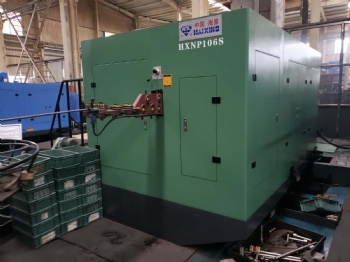

| Specifications | Unit | HXJM-46S | HXJM-66S | HXNP-86S | HXNP-106S | HXNP-136S |
| Forging stations | No. | 6 | 6 | 6 | 6 | 6 |
| Forging force | Kgs | 20000 | 40000 | 90000 | 140000 | 220000 |
| Max. output | Pcs/Min. | 290 | 180 | 140 | 95 | 100 |
| Max. cut off diameter | Mm | 4 | 8 | 12 | 15 | 19 |
| Max. cut off length | Mm | 66 | 60 | 100 | 135 | 140 |
| Main motor | Kw | 11 | 15 | 30 | 37 | 45 |
| P.K.O stroke | Mm | 12 | 28 | 20 | 30 | 30 |
| K.O stroke | Mm | 52 | 52 | 85 | 110 | 135 |
| Die pitch | Mm | 50 | 69 | 80 | 94 | 110 |
| Cut off die diameter | Mm | 20 | 36 | 45 | 52 | 60 |
| Punch die dimension | Mm | 35*75 | 45*98 | 45*115 | 53*135 | 70*150 |
| Main die dimension | Mm | 40*85 | 60*85 | 60*108 | 75*135 | 98*150 |
| Nominal bolt size | Mm | 1-4 | 3-6 | 5-8 | 6-12 | 8-12.7 |
| Length under head | Mm | 6-50 | 8-50 | 15-77 | 20-110 | 20-110 |
| Appro. weight | Kgs | 5200 | 8500 | 18000 | 25000 | 44000 |
| Appro. floor area | M | 5.6*1.48*1.48 | 6.8*2.5*1.79 | 8.2*3.2*2.19 | 8.9*3.5*2.4 | 14*4.3*2.64 |

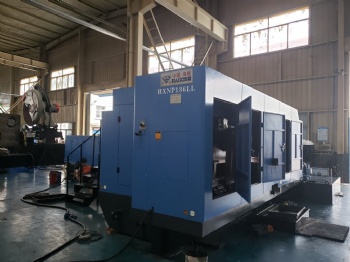

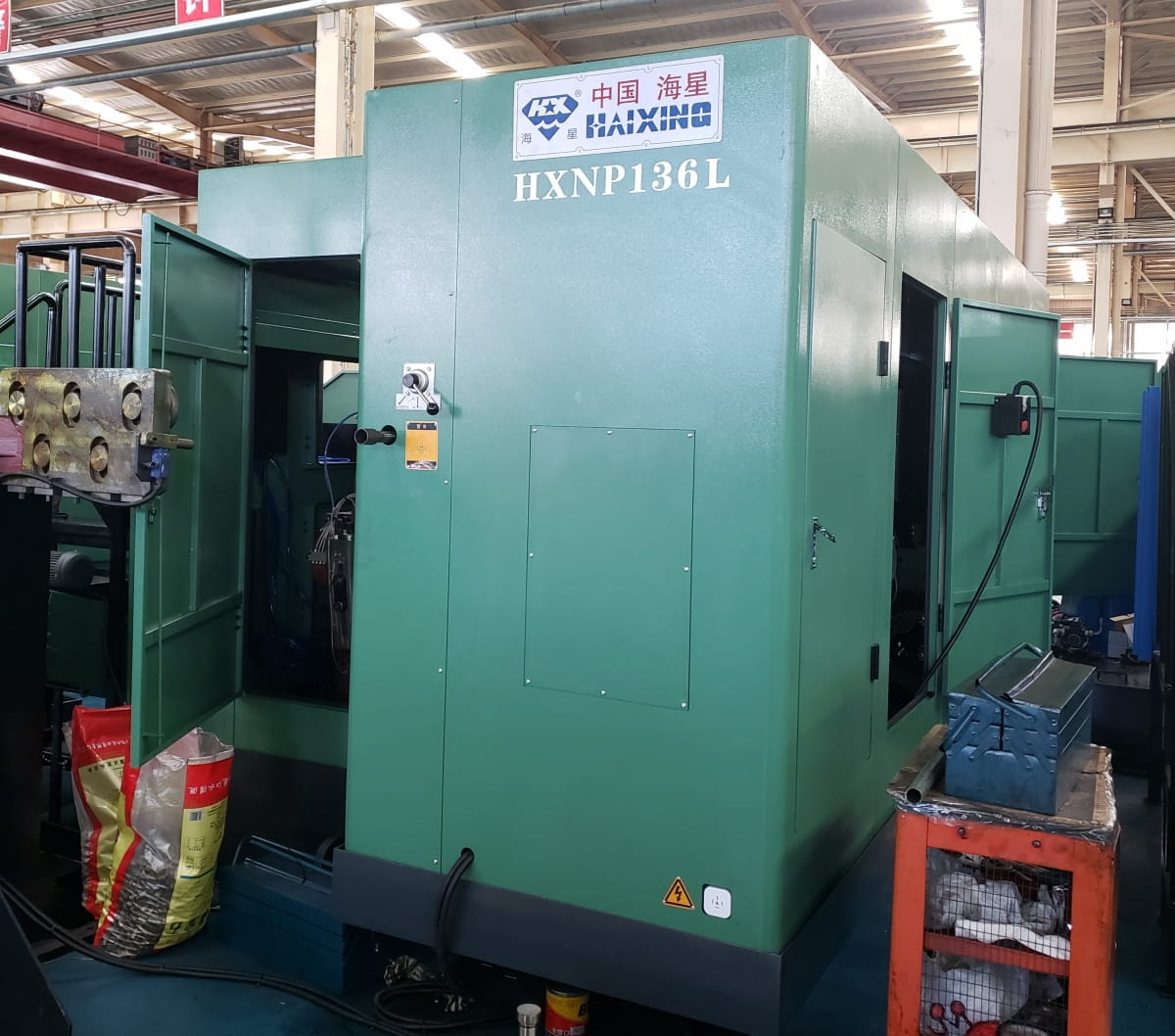

| Specifications | Unit | HXNP-136L | HXNP-166S | HXNP-206L | HXNP-256S | HXNP-306L |
| Forging stations | No. | 6 | 6 | 6 | 6 | 6 |
| Forging force | Kgs | 230000 | 360000 | 520000 | 620000 | 850000 |
| Max. output | Pcs/Min. | 90 | 80 | 60 | 55 | 45 |
| Max. cut off diameter | Mm | 19 | 23 | 29 | 34 | 41 |
| Max. cut off length | Mm | 210 | 205 | 250 | 320 | 450 |
| Main motor | Kw | 55 | 75 | 90 | 132 | 160 |
| P.K.O stroke | Mm | 40 | 40 | 45 | 60 | 100 |
| K.O stroke | Mm | 190 | 165 | 220 | 270 | 380 |
| Die pitch | Mm | 110 | 126 | 138 | 174 | 200 |
| Cut off die diameter | Mm | 70 | 75 | 90 | 110 | 132 |
| Punch die dimension | Mm | 75*190 | 75*180 | 90*220 | 115*240 | 135*280 |
| Main die dimension | Mm | 100*265 | 108*205 | 125*240 | 158*310 | 185*420 |
| Nominal bolt size | Mm | 8-12.7 | 10-16 | 12-20 | 16-28 | 20-33 |
| Length under head | Mm | 20-180 | 20-160 | 25-200 | 50-250 | 80-350 |
| Appro. weight | Kgs | 41000 | 62000 | 98000 | 135000 | 200000 |
| Appro. floor area | M | 12*3.7*2.53 | 12*4.55*2.83 | 14*5.85*3.25 | 14.7*6.03*3.4 | 17.5*6.8*4 |
